Cadillac
>>
1991
>>
Seville V8-300 4.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Cigar Fuse 4
Cigar Fuse 4

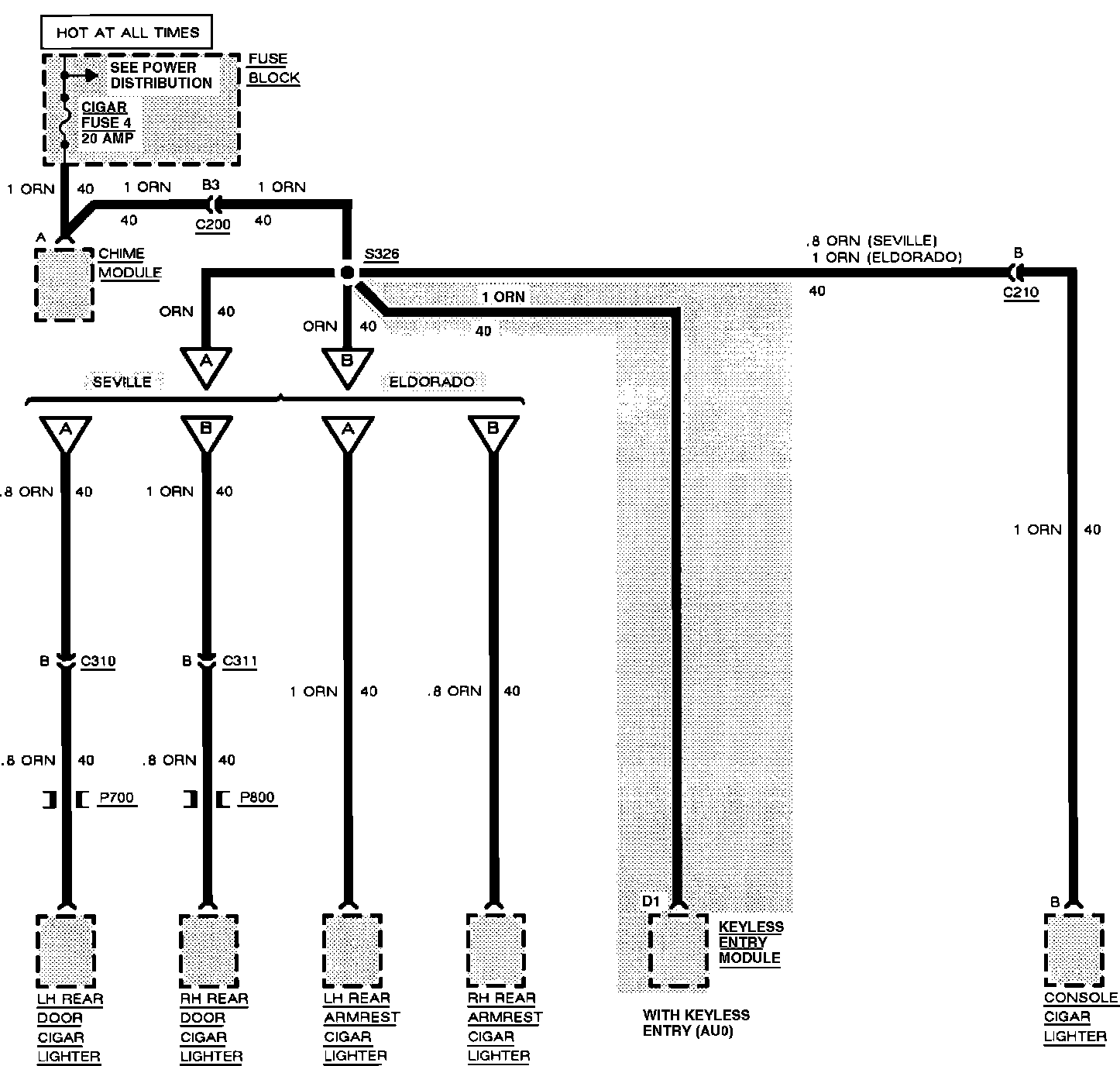

Fuse Block Details. Cigar Fuse 4:
