Home >> Cadillac >> 1991 >> Seville V8-300 4.9L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Fuse >> BCM Power Fuse 14

BCM Power Fuse 14

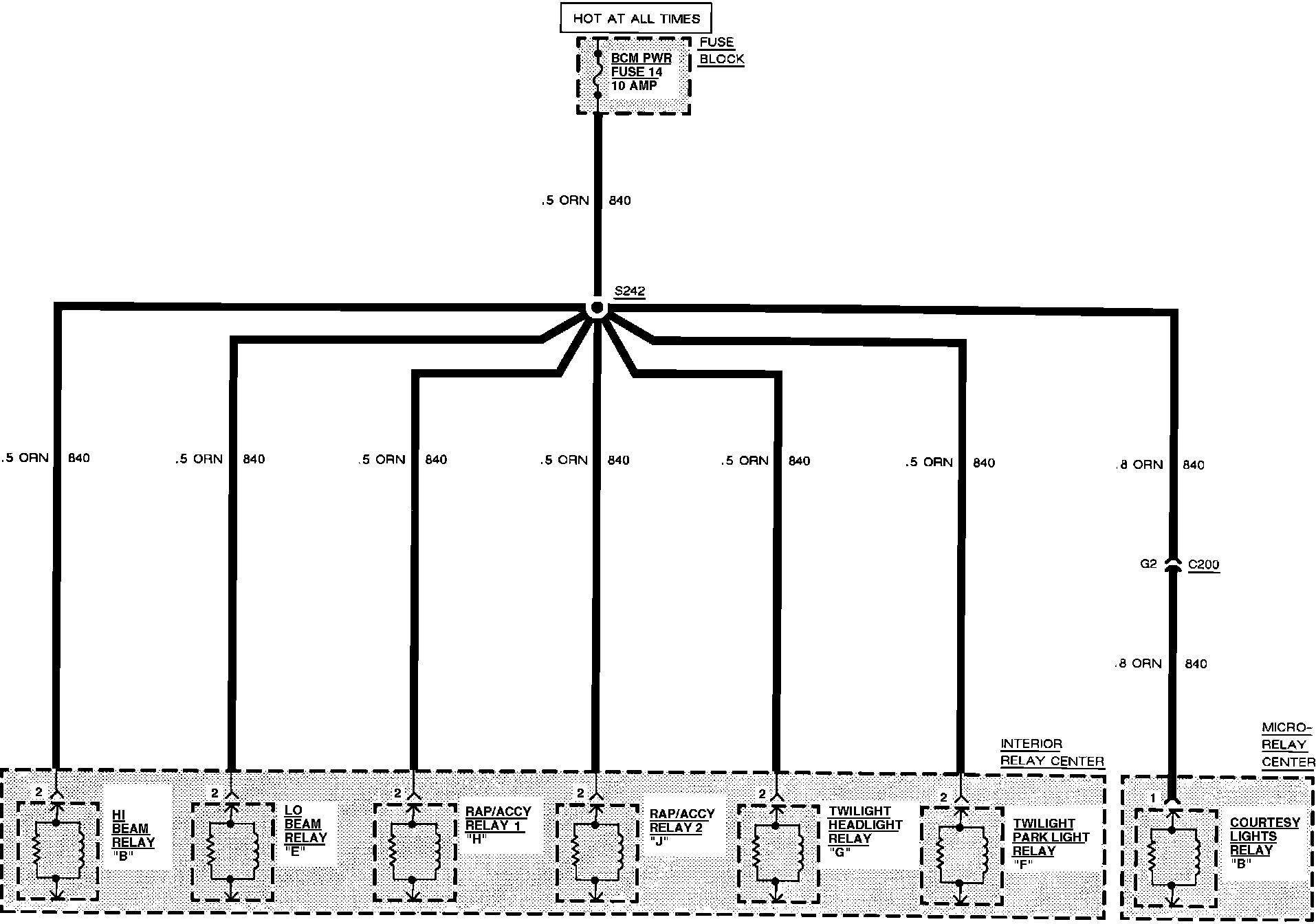

Fuse Block Details. BCM Power. Fuse 14:
