Hydraulic Assembly: Testing and Inspection

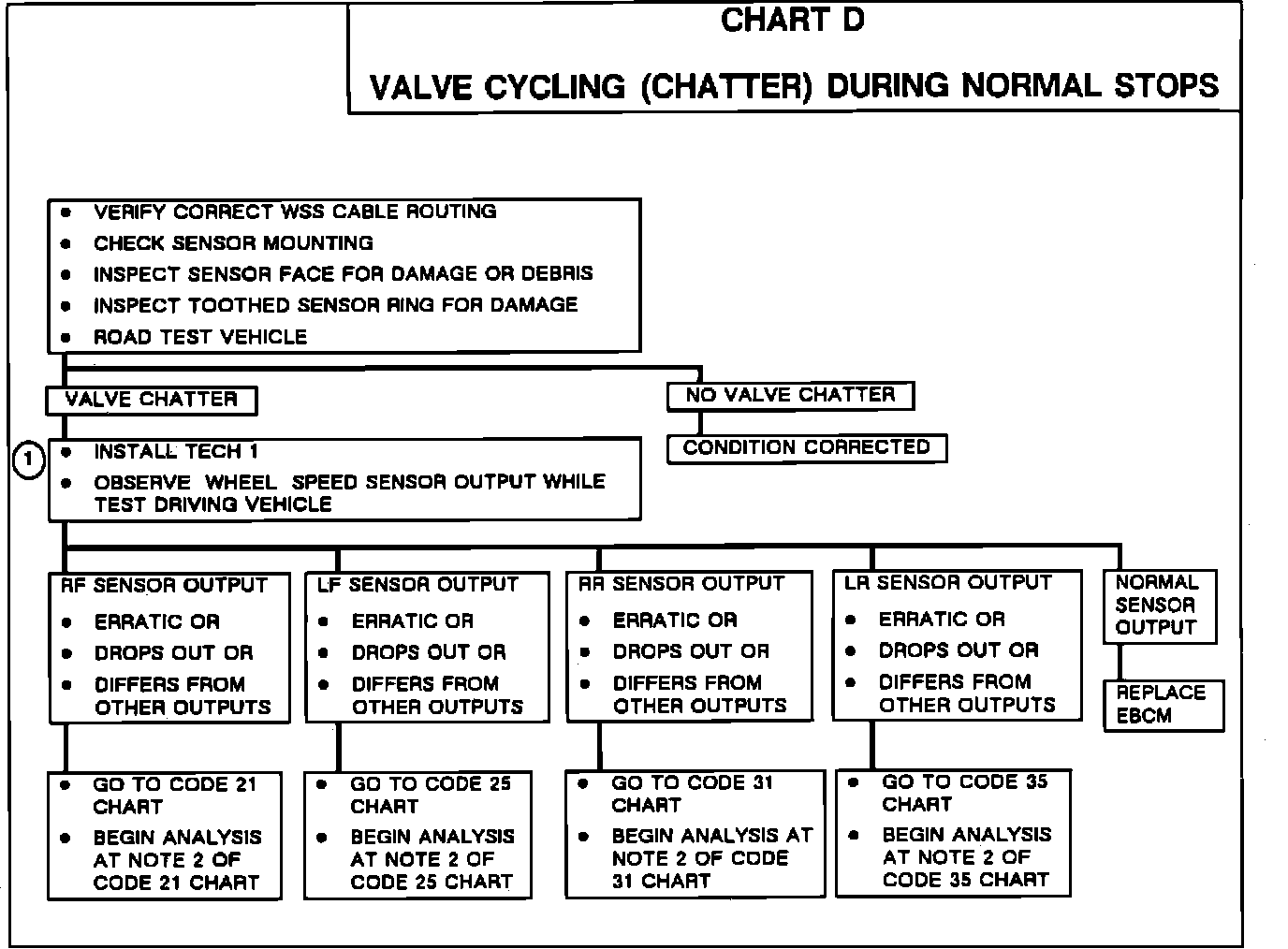

Fig. 40 Symptom Chart D (Valve Cycling During Normal Braking. Eldorado, Reatta, Riviera, SeVille, Toronado & Trofeo:
