Exterior Trim - Front License Plate Bracket Removal
88cadillac10Bulletin No. T-89-7
File in Group 10
Number 138
Corp. Ref. No. 811522
Date Sept. 1988
SUBJECT: FRONT LICENSE PLATE BRACKET REMOVAL
MODELS AFFECTED: 1989 ELDORADOS AND SEVILLES
The assembly plant will install the front license plate bracket to all 1989 Eldorados and Sevilles. There are some states that do not require the front license plate bracket. When the bracket is removed a chrome molding must be installed in its place.

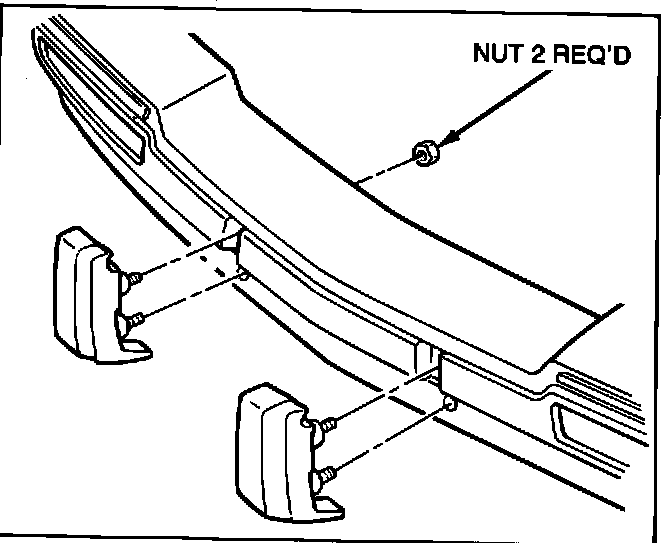

FIGURE 1 - BUMPER GUARDS:
The following service procedure should be followed when removing the front license plate bracket:
1. Remove both bumper guards, refer to Figure 1.

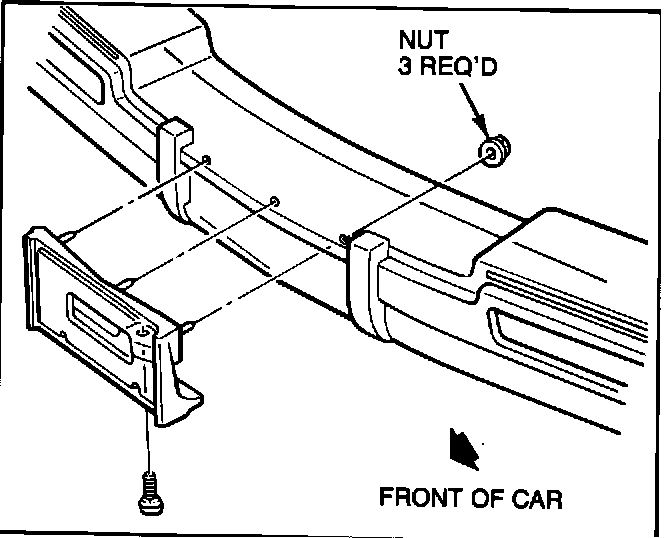

FIGURE 2 - FRONT LICENSE PLATE BRACKET:
2. Remove the front license plate bracket, refer to Figure 2.
FIGURE 3 - CHROME MOLDING:
3. Install chrome molding, P/N 1639260, which is currently available from GMSPO. Refer to Figure 3. Use the nuts previously removed from the front license plate bracket.
4. Reinstall the bumper guards.
For warranty purposes use Labor Operation T6328 at .2 hour.
