Home
>>
Cadillac
>>
1989
>>
Seville V8-273 4.5L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G400
>>
Ex. Touring Sedan
Ex. Touring Sedan

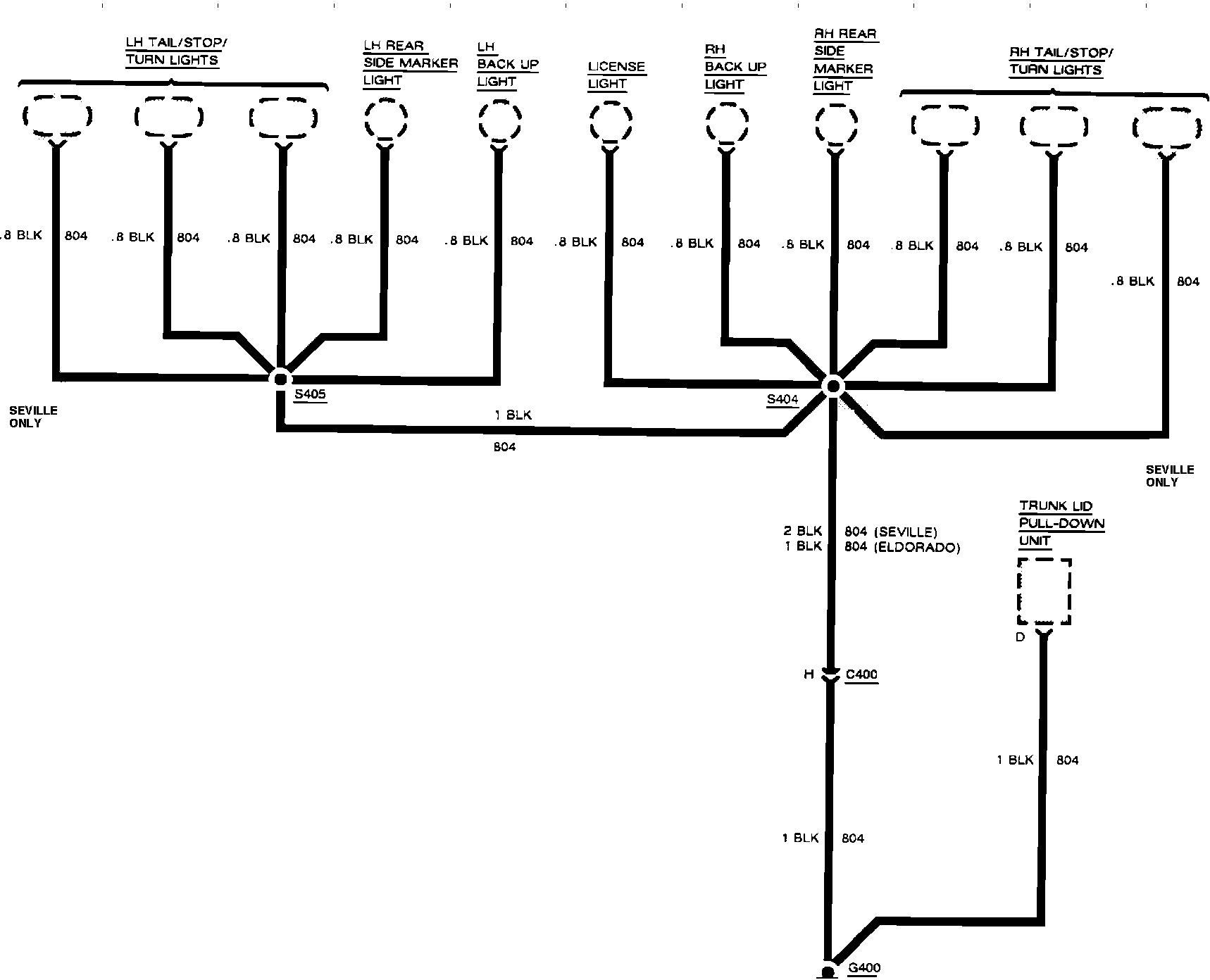

Ground Distribution (G400):
