Home
>>
Cadillac
>>
1989
>>
Seville V8-273 4.5L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Circuit Breaker
>>
Diagrams
>>
Electrical Diagrams
>>

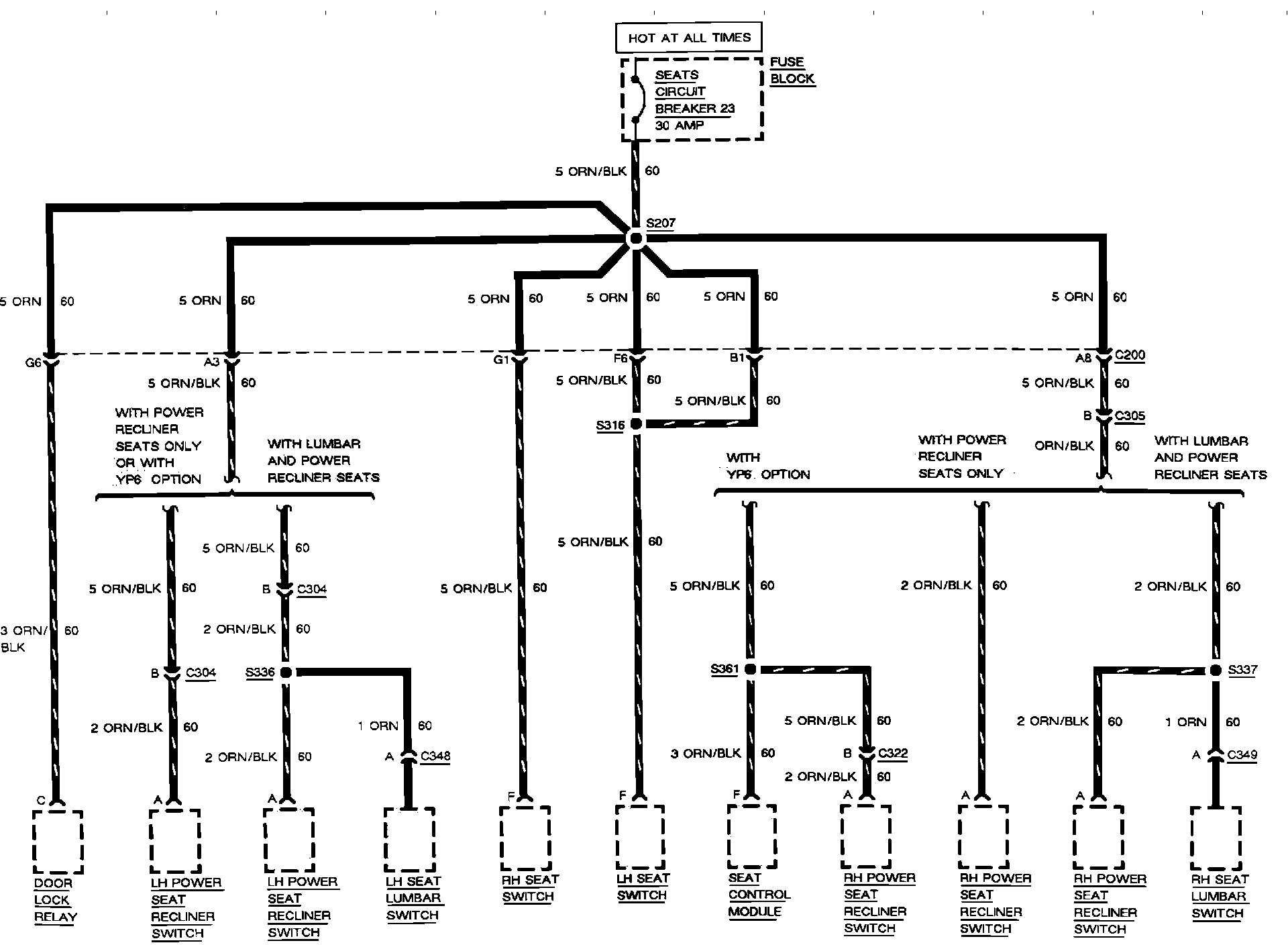

Circuit 23 (103)
Circuit 23 (103)
Fuse Block Details (Circuit Breaker 23):
