Home
>>
Cadillac
>>
1989
>>
Seville V8-273 4.5L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
BCM/ECM Data Line
BCM/ECM Data Line

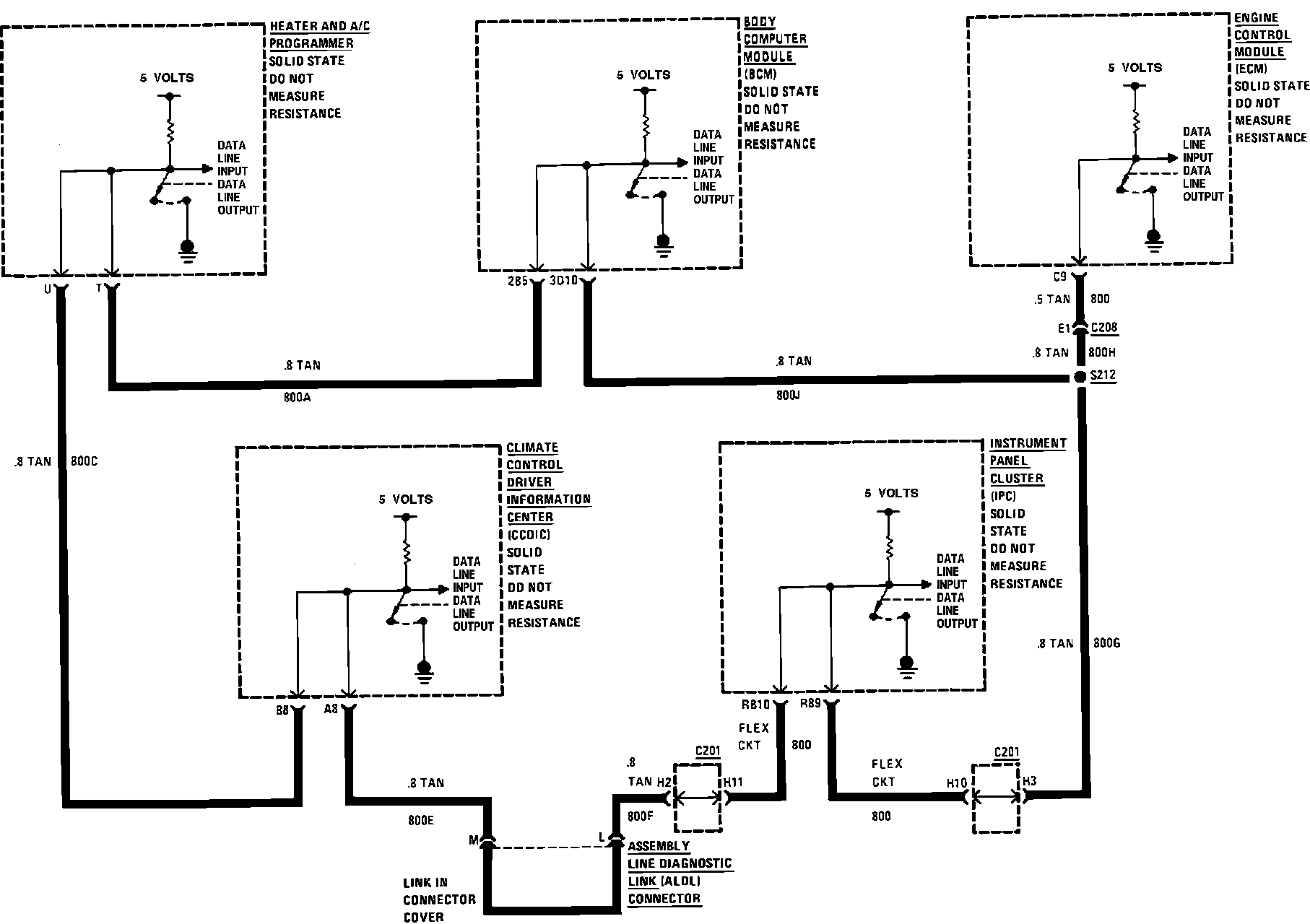

BCM/ECM Data Line:

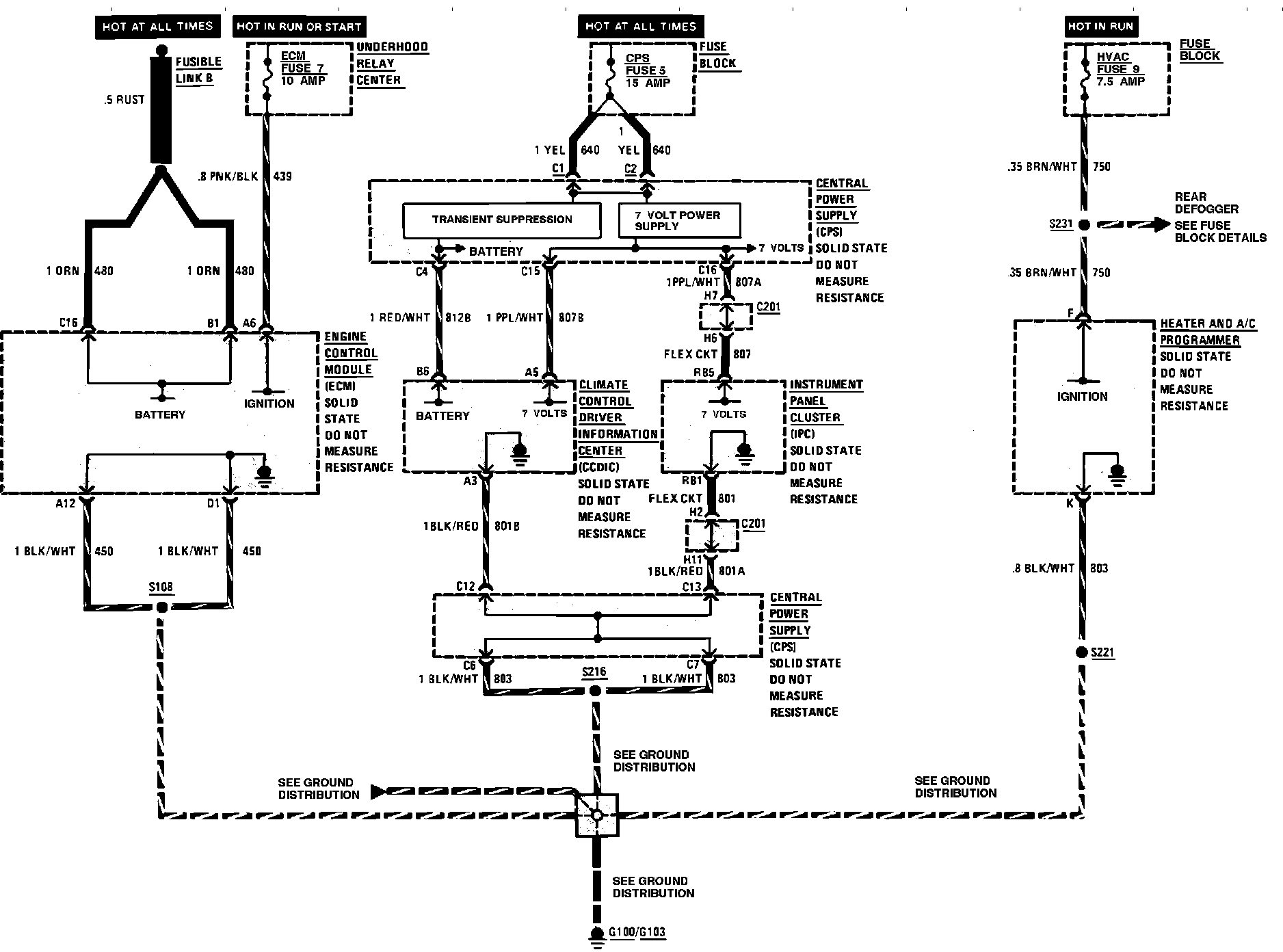

BCM/ECM Data Line:
BCM/ECM Data Line:
