- Self-Diagnostic System Check

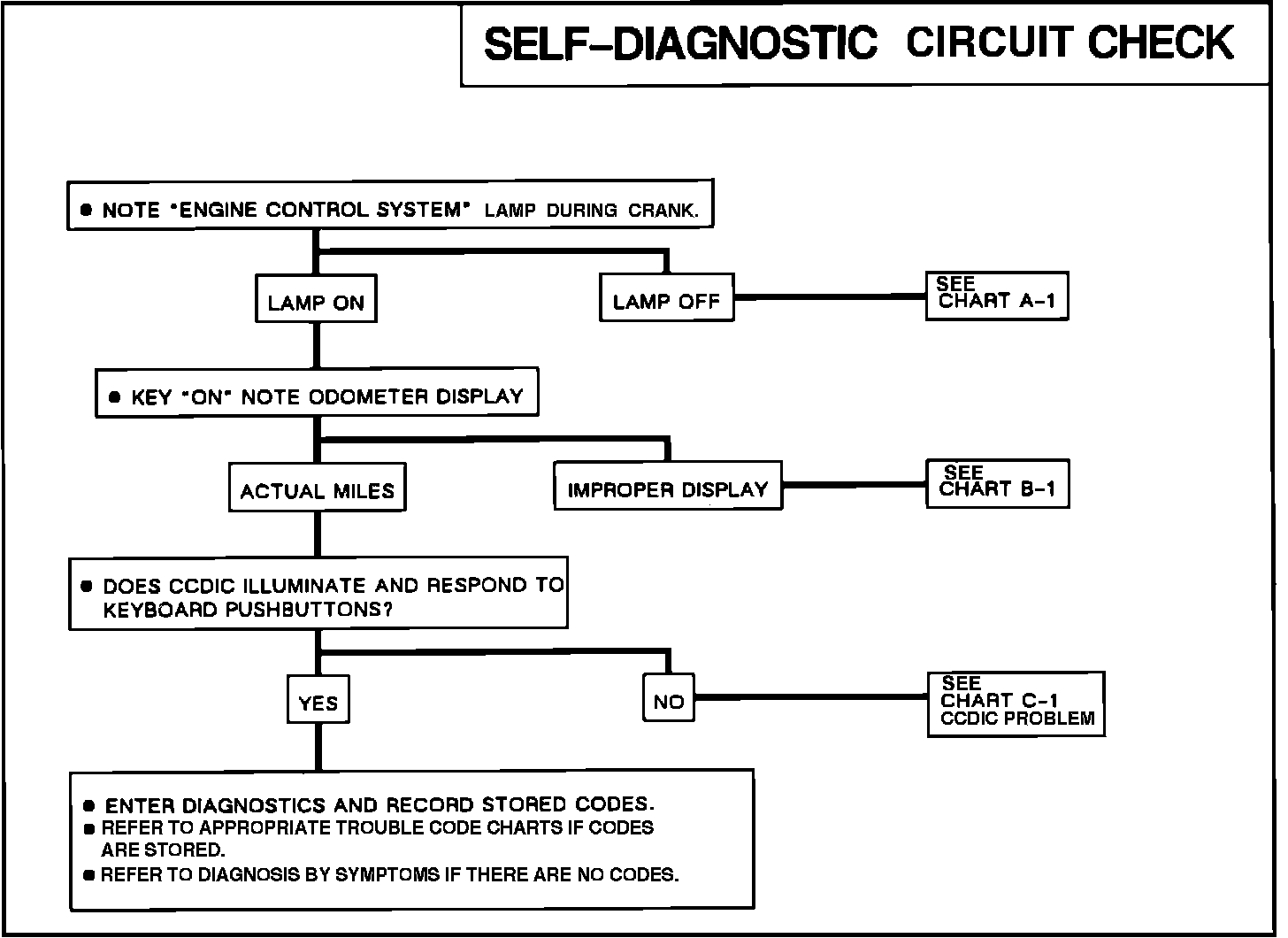

Self-Diagnostic Circuit Check:

DESCRIPTION:

The SELF-DIAGNOSTIC CIRCUIT CHECK is an organized approach for identifying a problem caused by the on-car computer-controlled electronics. Understanding this chart and using it correctly will reduce diagnosis time and prevent the unnecessary replacement of parts. Refer to HOW TO ENTER DIAGNOSTIC MODE.
