Power Distribution (ISO Junction Block)
>>

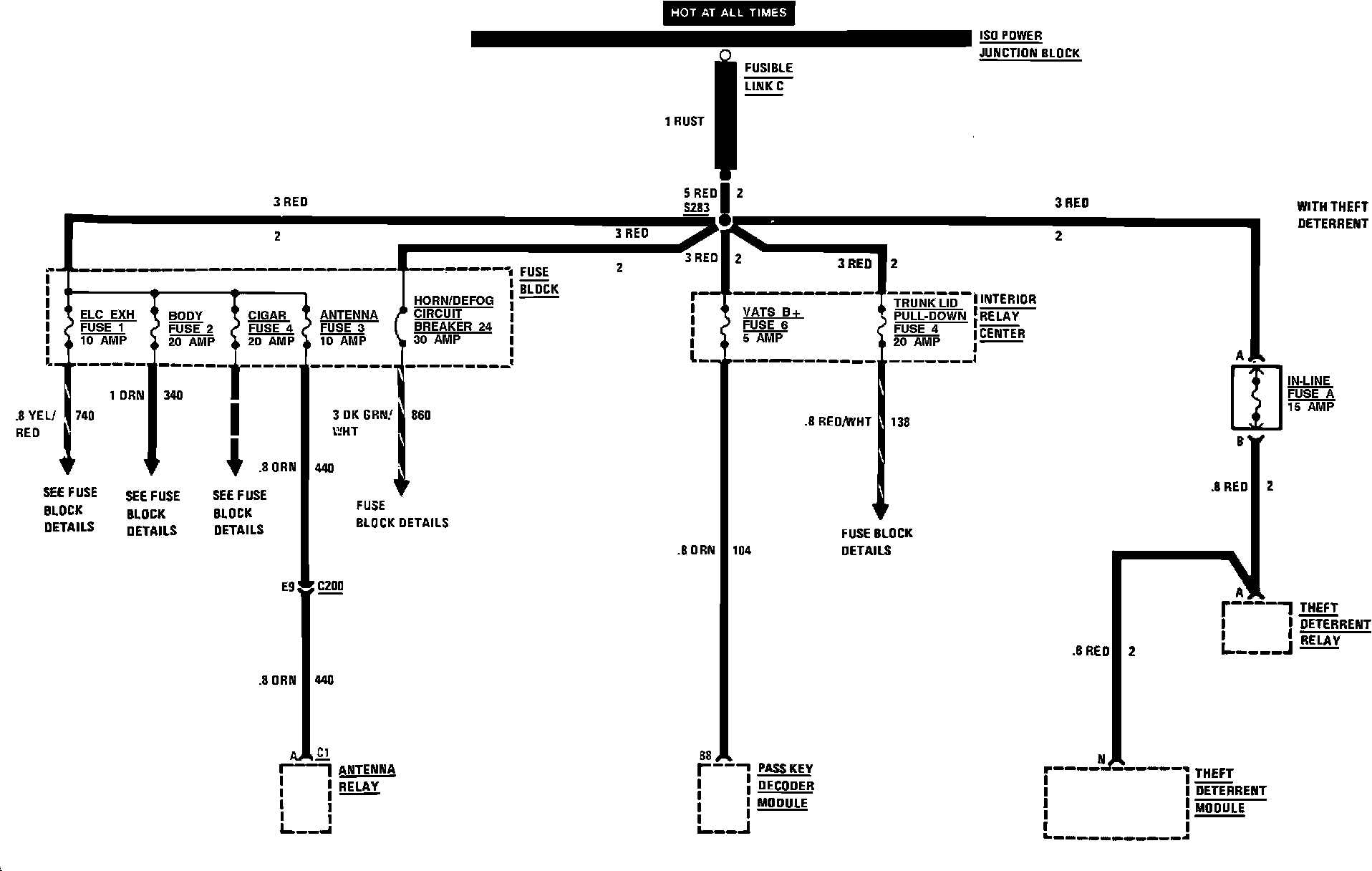

Part 5 of 8 (ISO Power Junction Block)
Part 5 of 8 (ISO Power Junction Block)
Power Distribution (ISO Junction Block):
