Home >> Cadillac >> 1989 >> Seville V8-273 4.5L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution (ISO Junction Block) >> Part 4 of 8 (Ignition Switch)

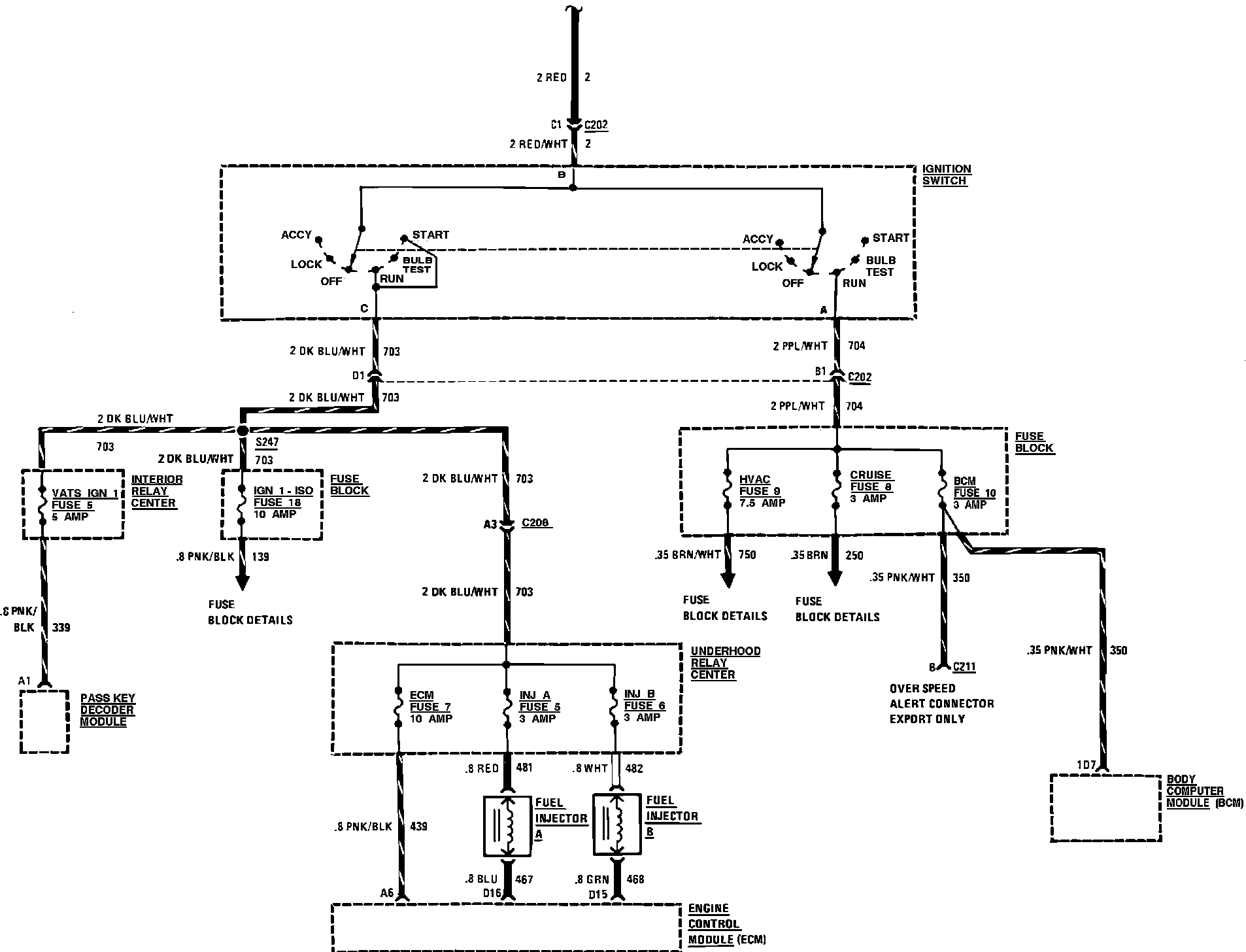

Part 4 of 8 (Ignition Switch)

Power Distribution (ISO Junction Block):
