Power Distribution (ISO Junction Block)
>>

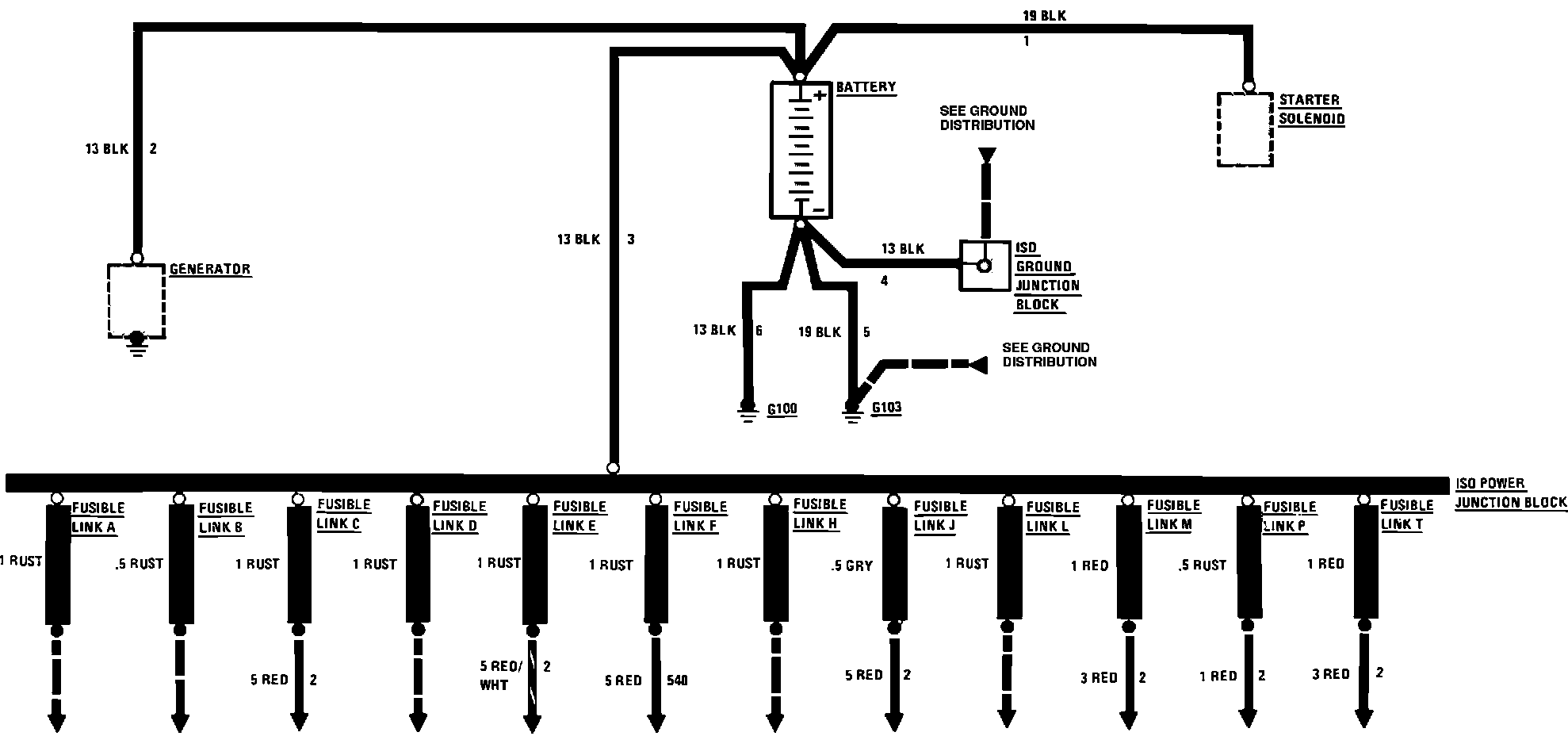

Part 1 of 8 (Battery)
Part 1 of 8 (Battery)
Power Distribution (ISO Junction Block):
