Cadillac
>>
1989
>>
Seville V8-273 4.5L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G103
G103

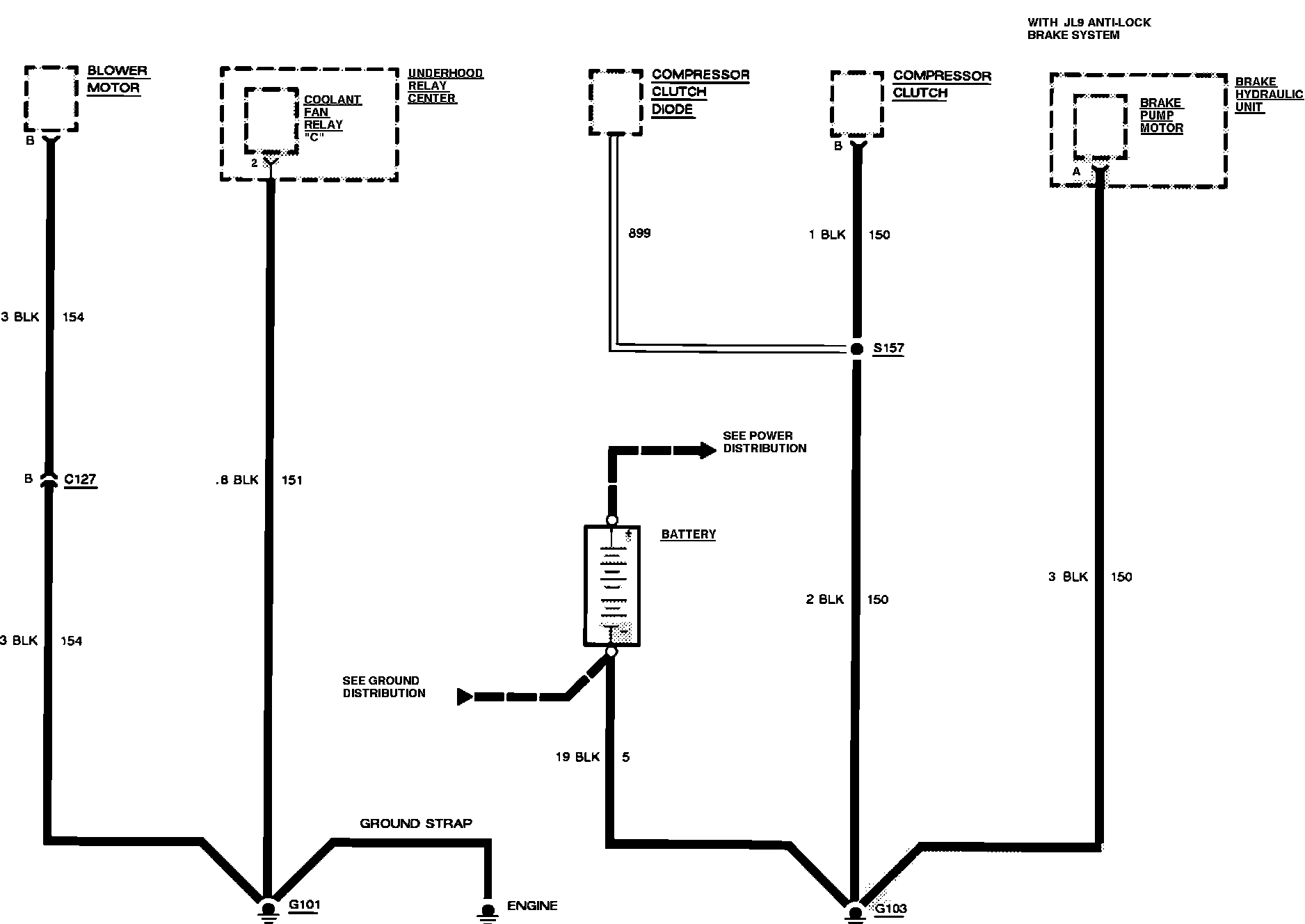

Ground Distribution (G101 & G103):
