Electrical Diagrams

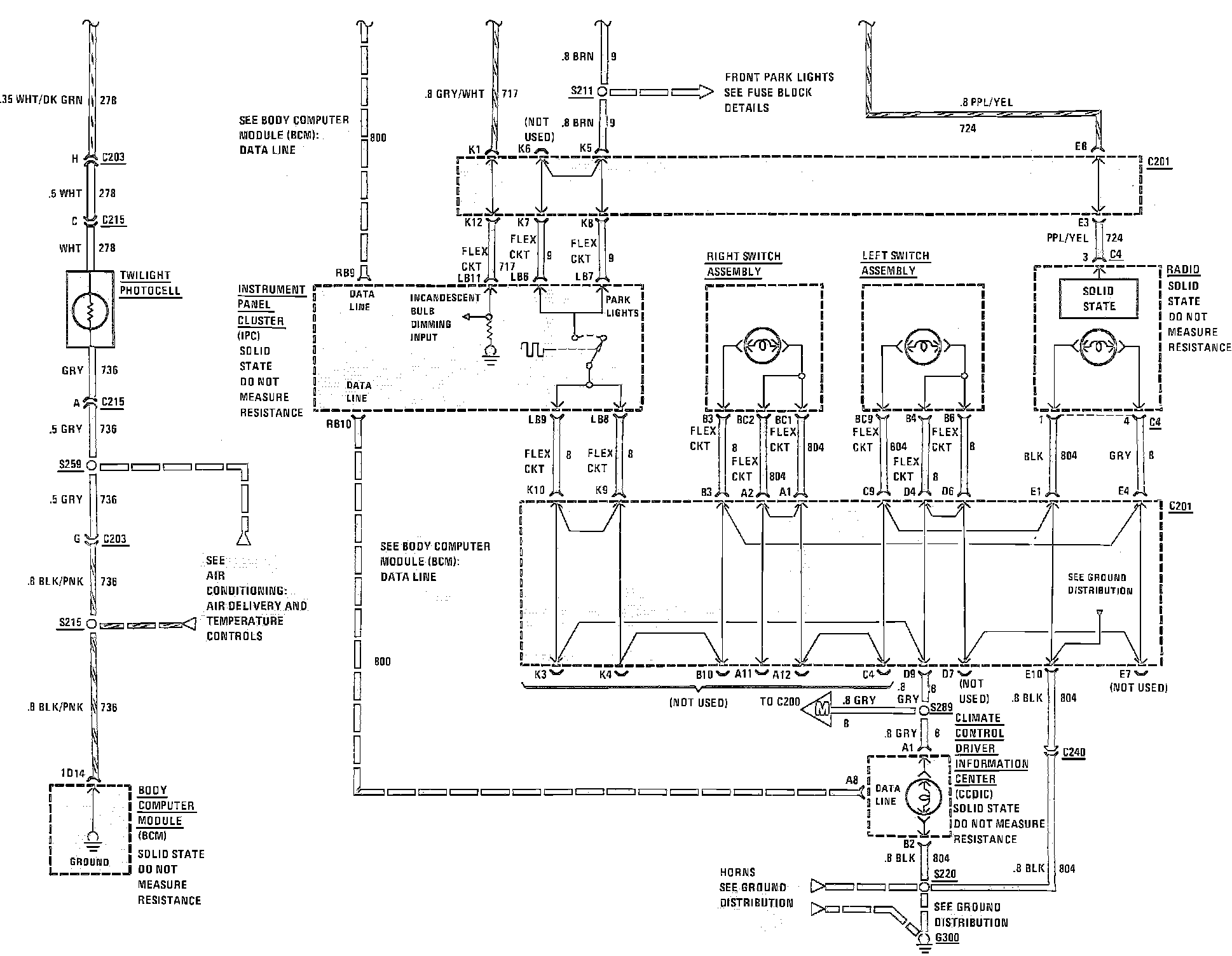

Instrument Panel Dimming Wiring Circuit (Part 1a Of 2):

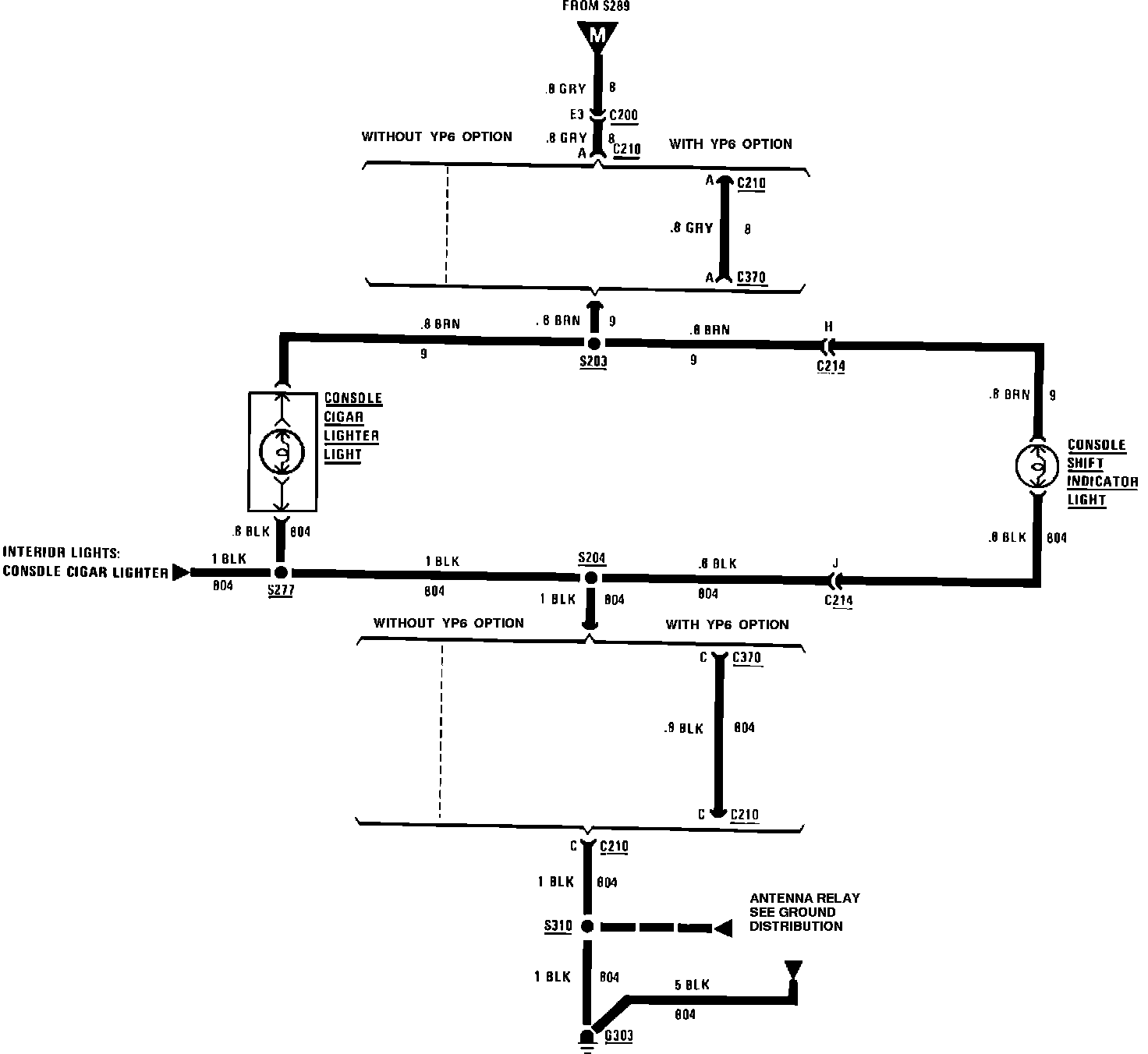

Instrument Panel Dimming Wiring Circuit (Part 1b Of 2):

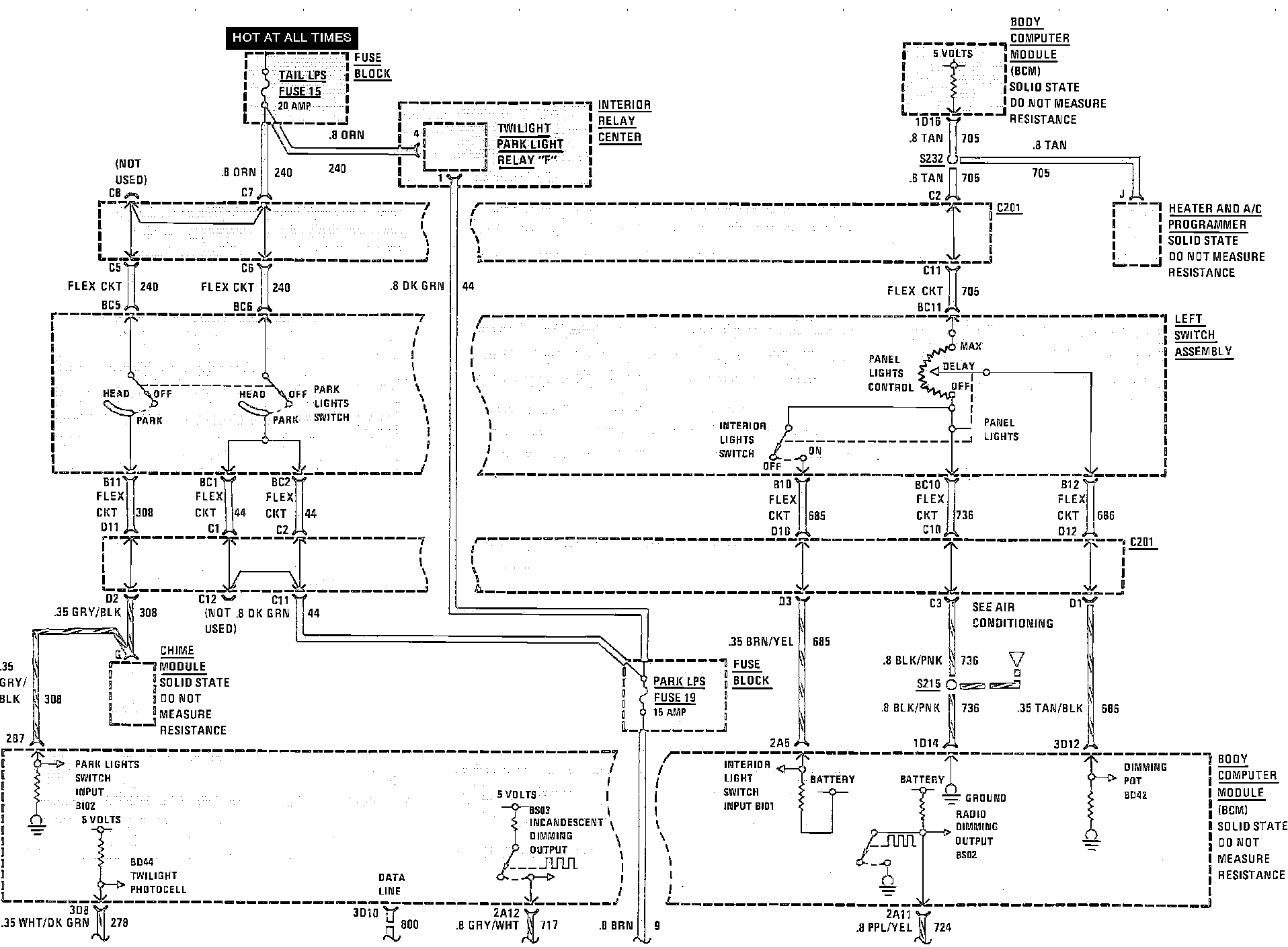

Instrument Panel Dimming:
