Home
>>
Cadillac
>>
1989
>>
Seville V8-273 4.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Fuse 7
Fuse 7

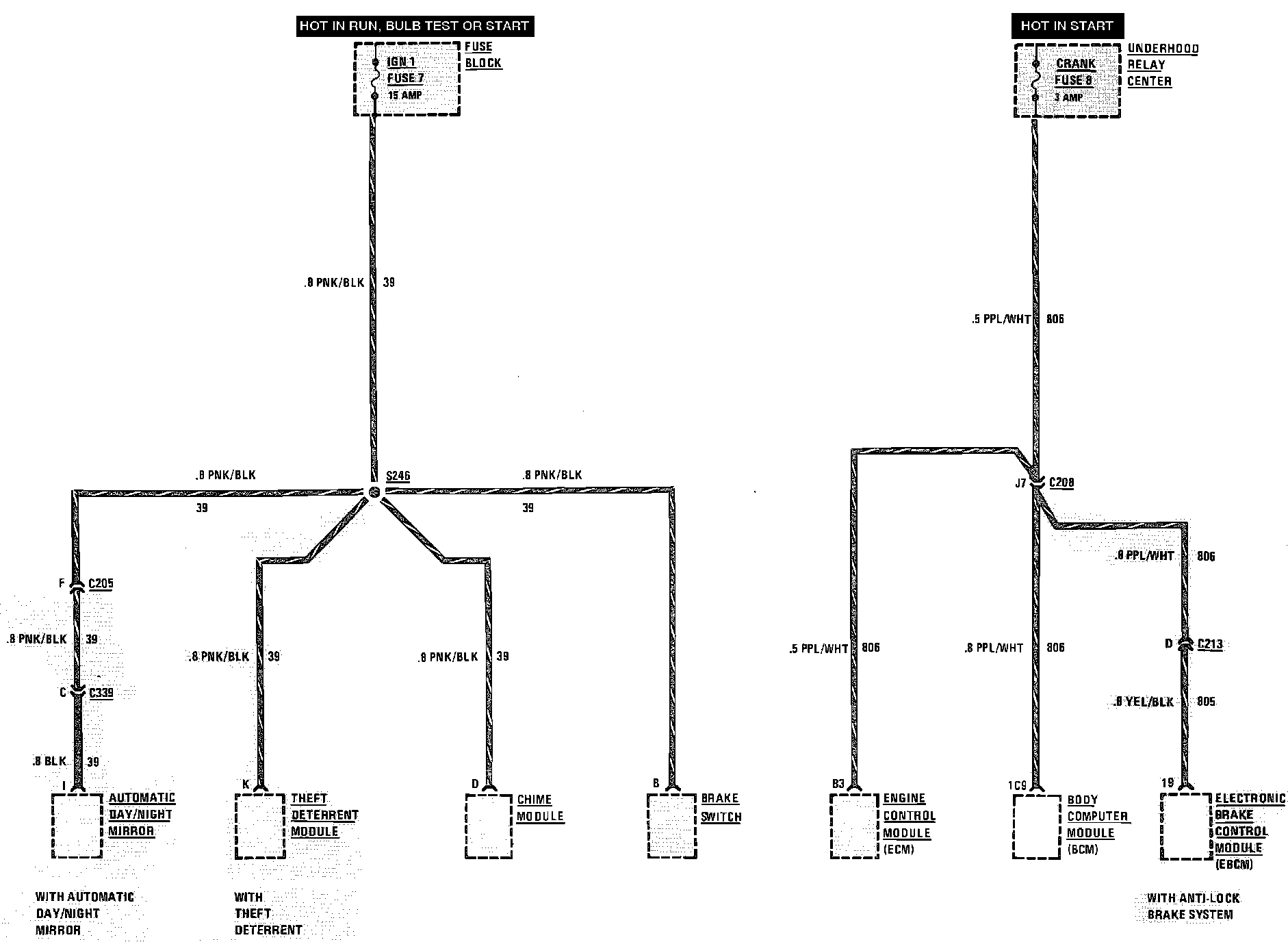

Fuse Block Detail (Fuse 7 & 8):
