Cadillac
>>
1989
>>
Seville V8-273 4.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Fuse 15
Fuse 15

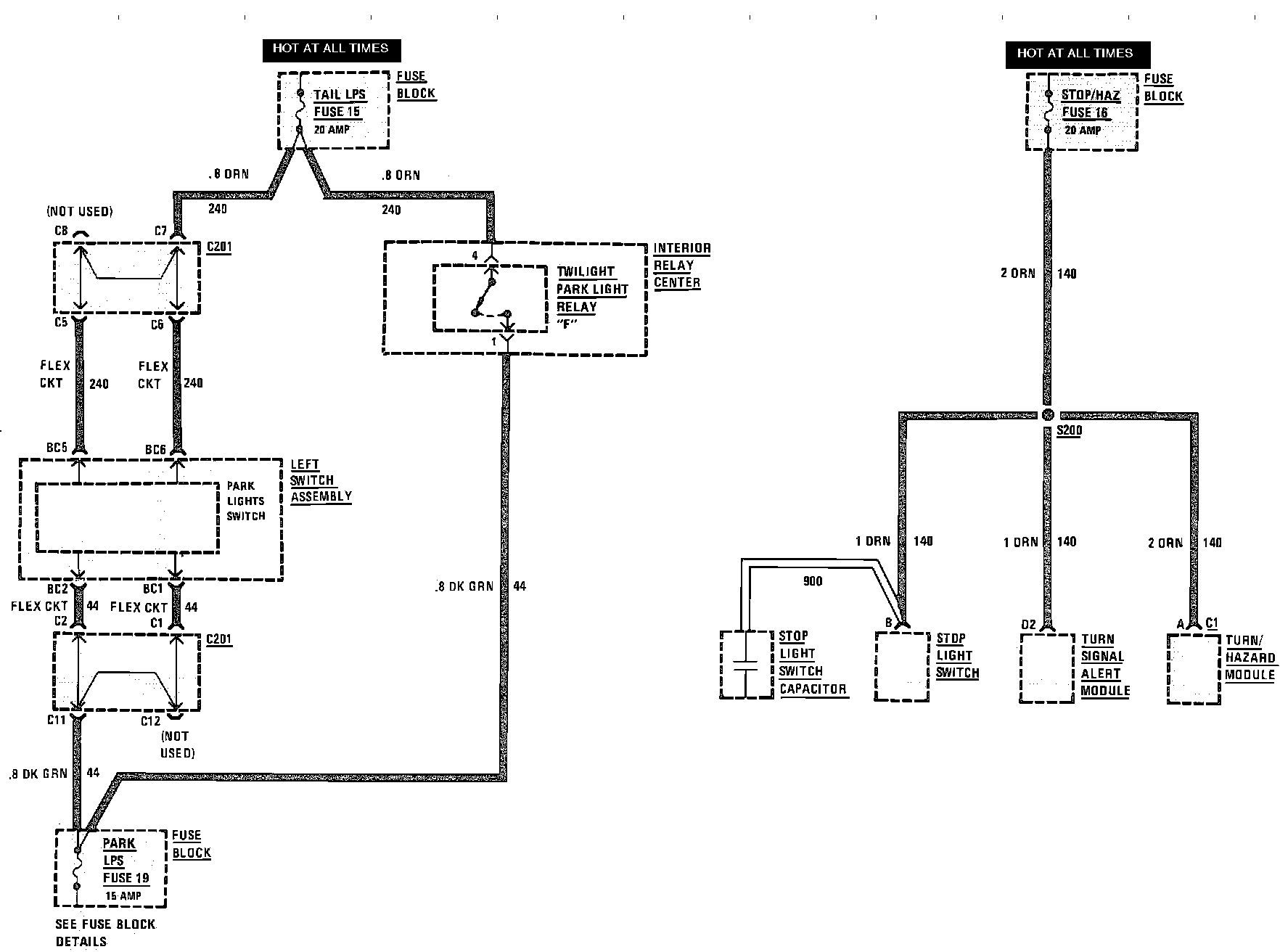

Fuse Block Detail (Fuses 15 & 16):
