Home >> Cadillac >> 1989 >> Seville V8-273 4.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> Contour >> Part 2 of 3

Part 2 of 3

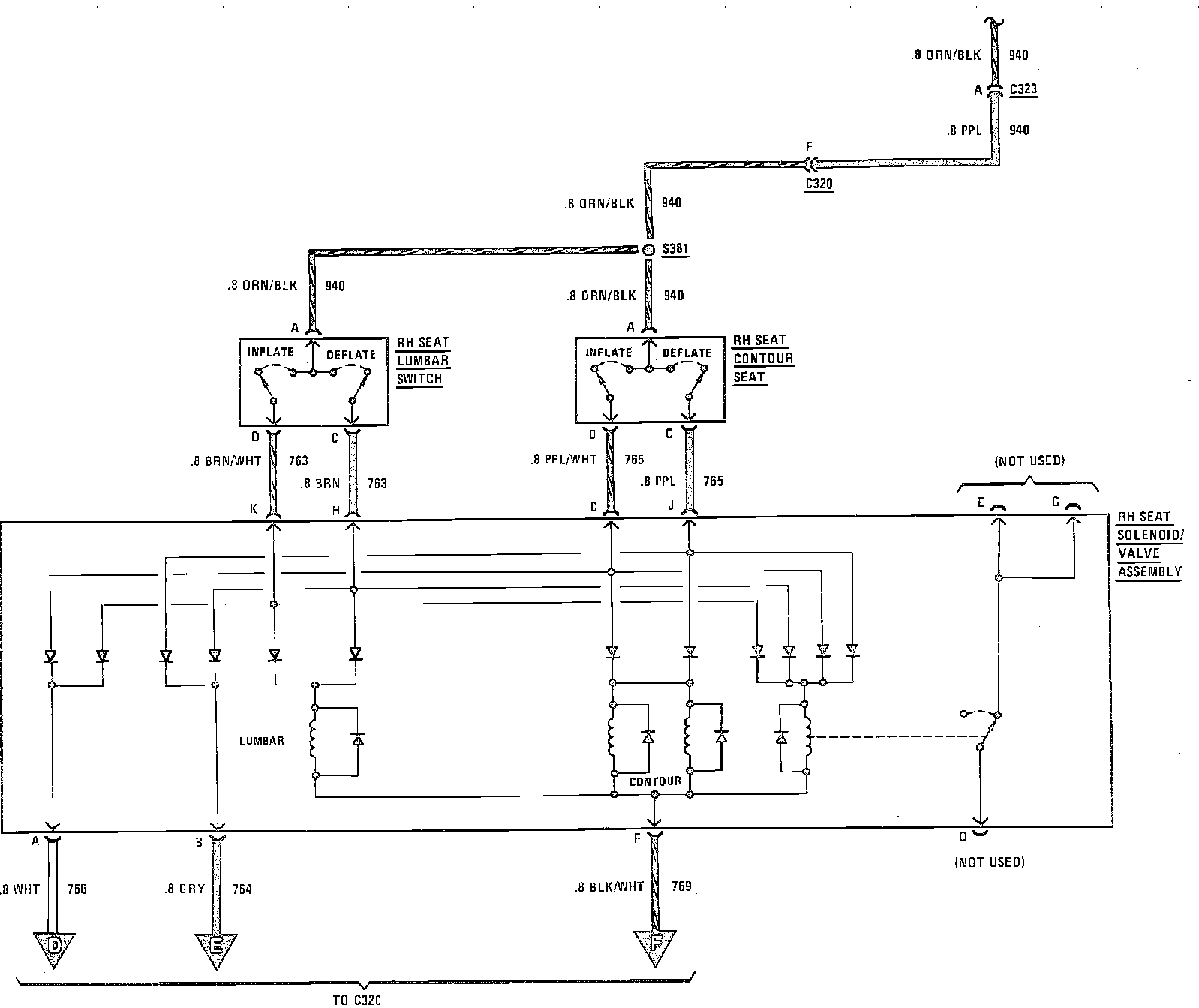

Power Contour & Lumbar Seats Wiring Circuit (Part 1b Of 2):
