Cadillac
>>
1989
>>
Seville V8-273 4.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
With Delco Bose System
>>
Less Cellular Phone
Less Cellular Phone
Ground Distribuiton (G300) Part 1 Of 2:

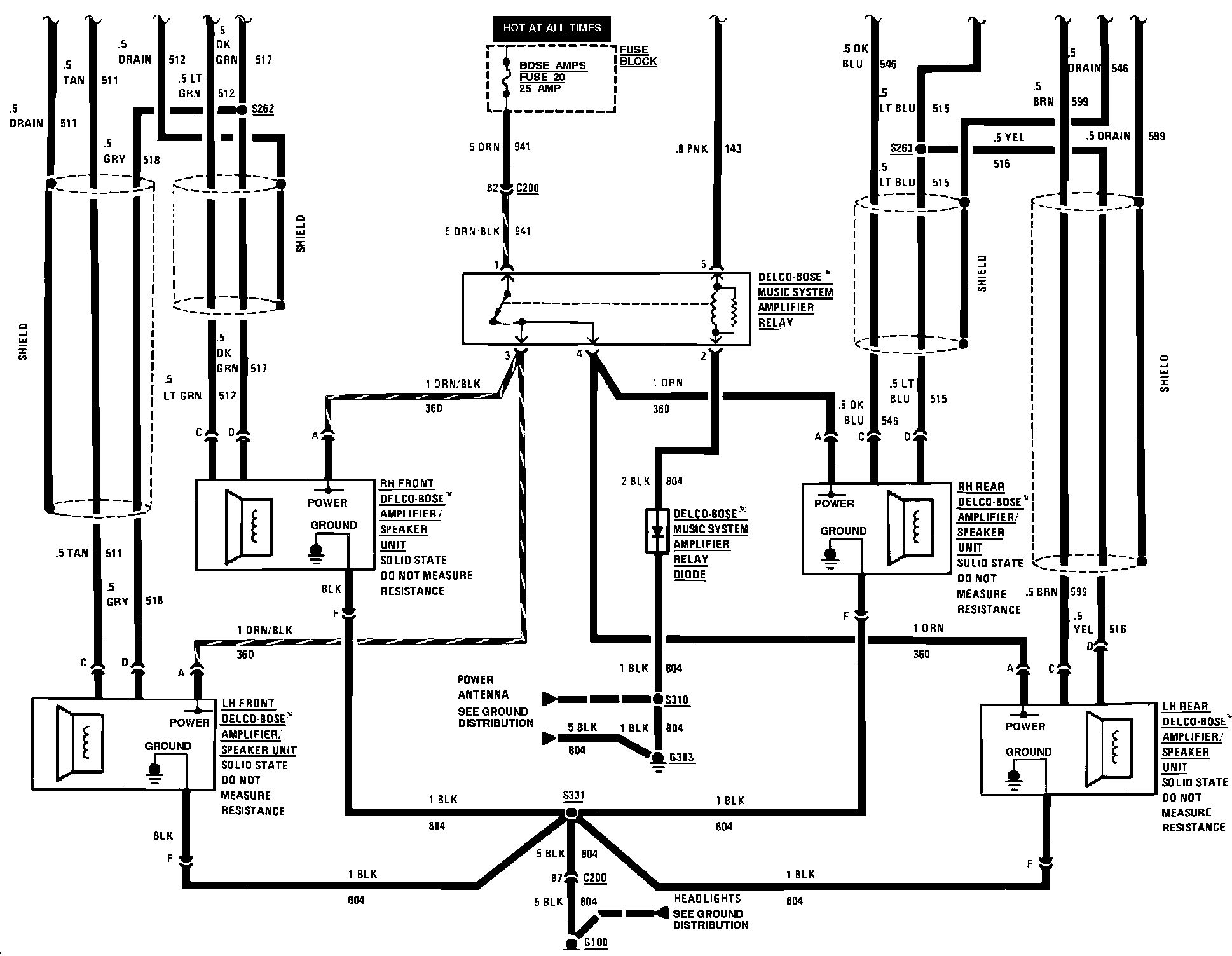

Radio (Delco-Bose System) Less Cellular Telephone:
