Cadillac
>>
1989
>>
Seville V8-273 4.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Locks
Power Locks

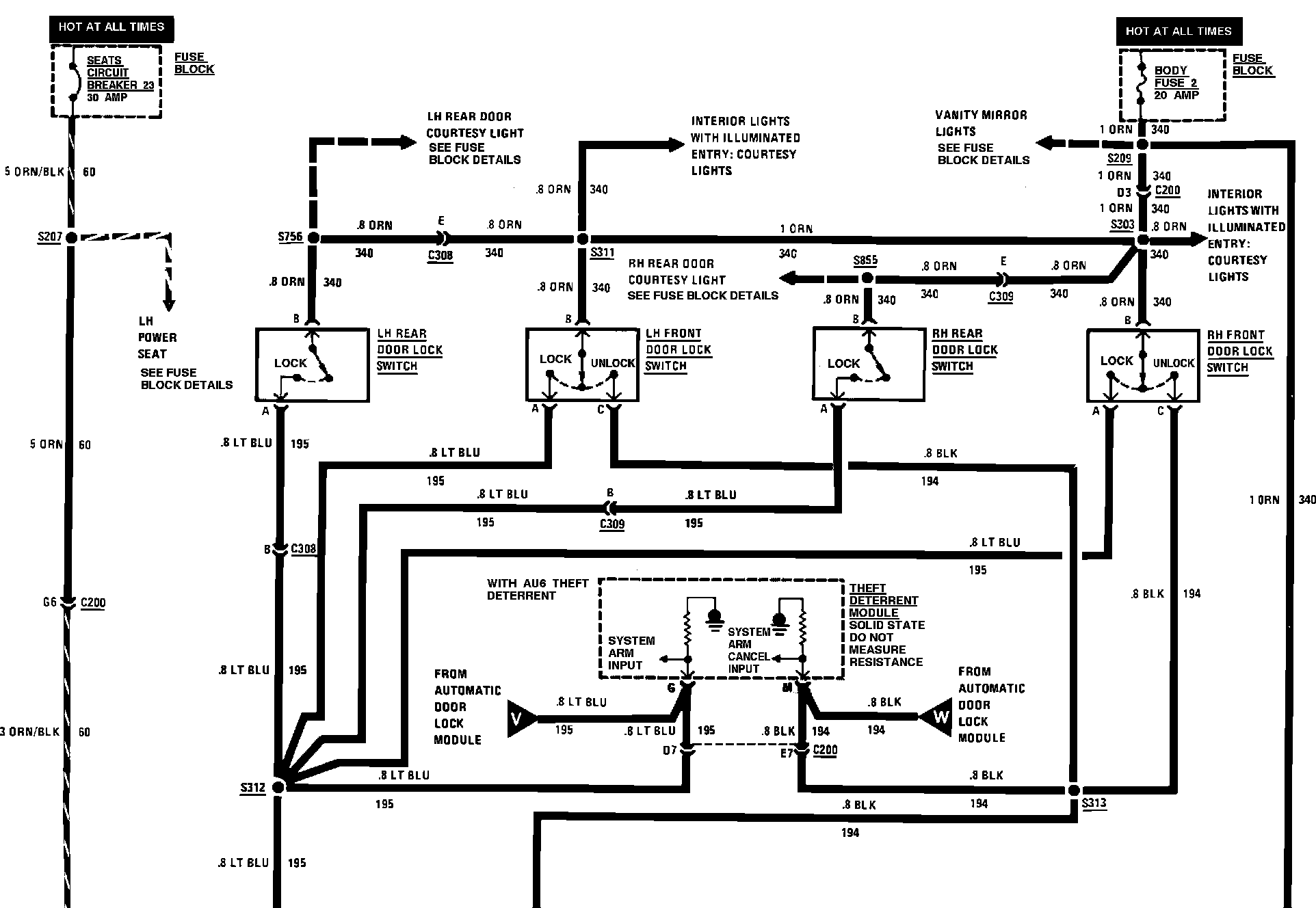

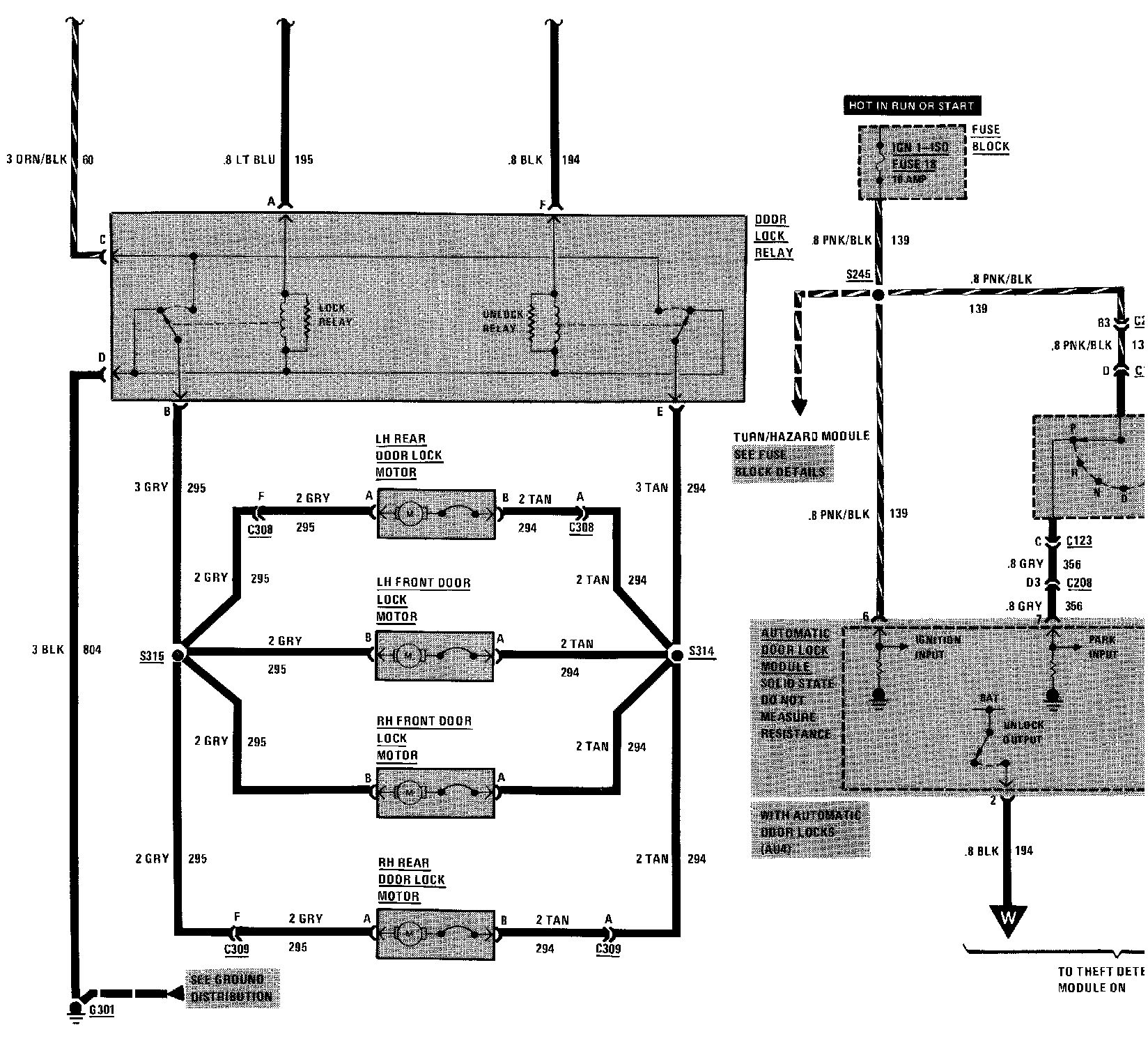

Power Door Lock (W/Automatic Door Locks):
+YPower Door Lock (W/Automatic Door Locks):
Power Door Lock (W/Automatic Door Locks):
