Chart A-2, Code 21 (Main Valve)
Chart A-2, Code 21 (Main Valve)

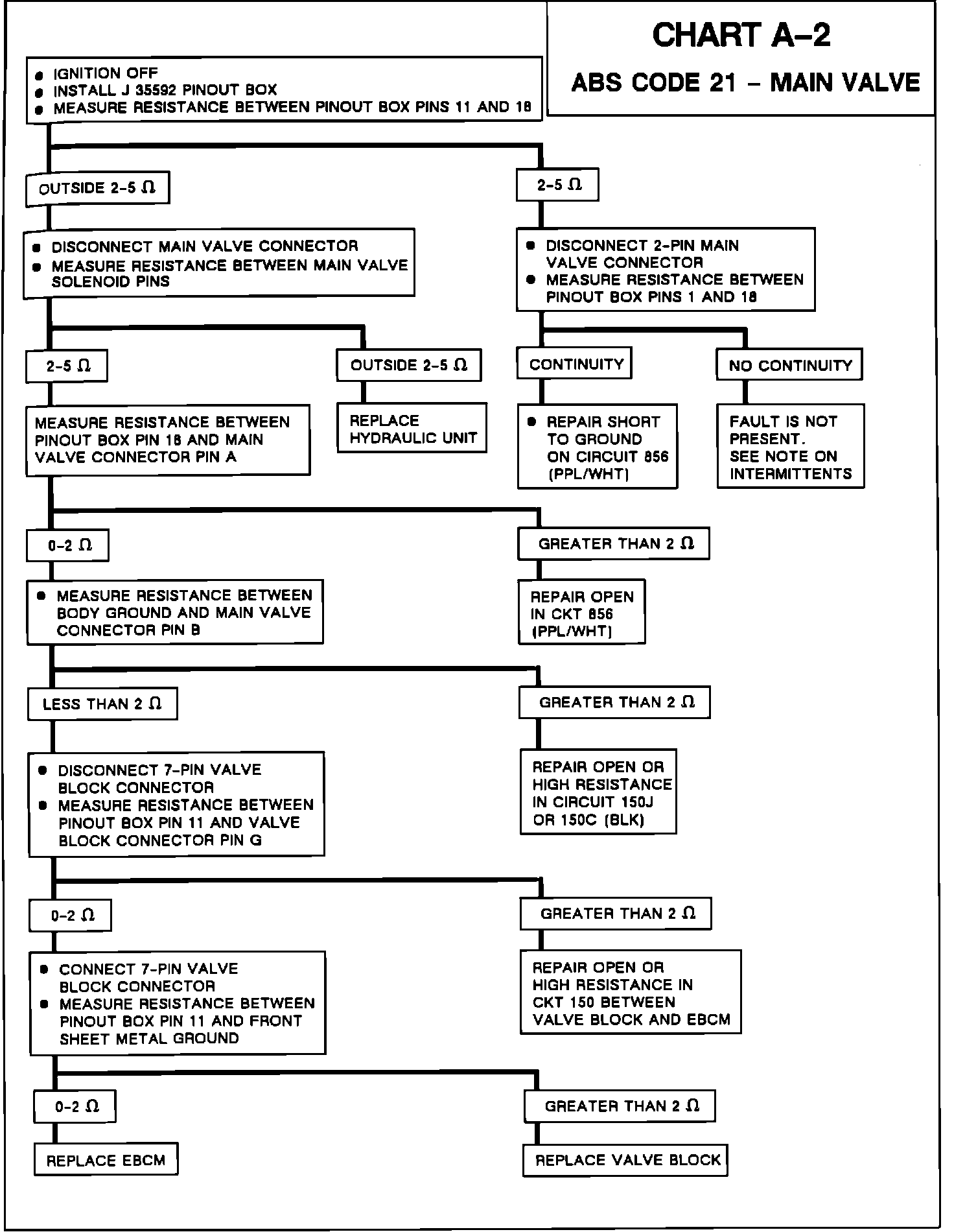

Fig. 14 Chart A-2, ABS Trouble Code 21 (Main Valve):
