Chart D-4, Extended Pump Operation
Chart D-4, Extended Pump Operation

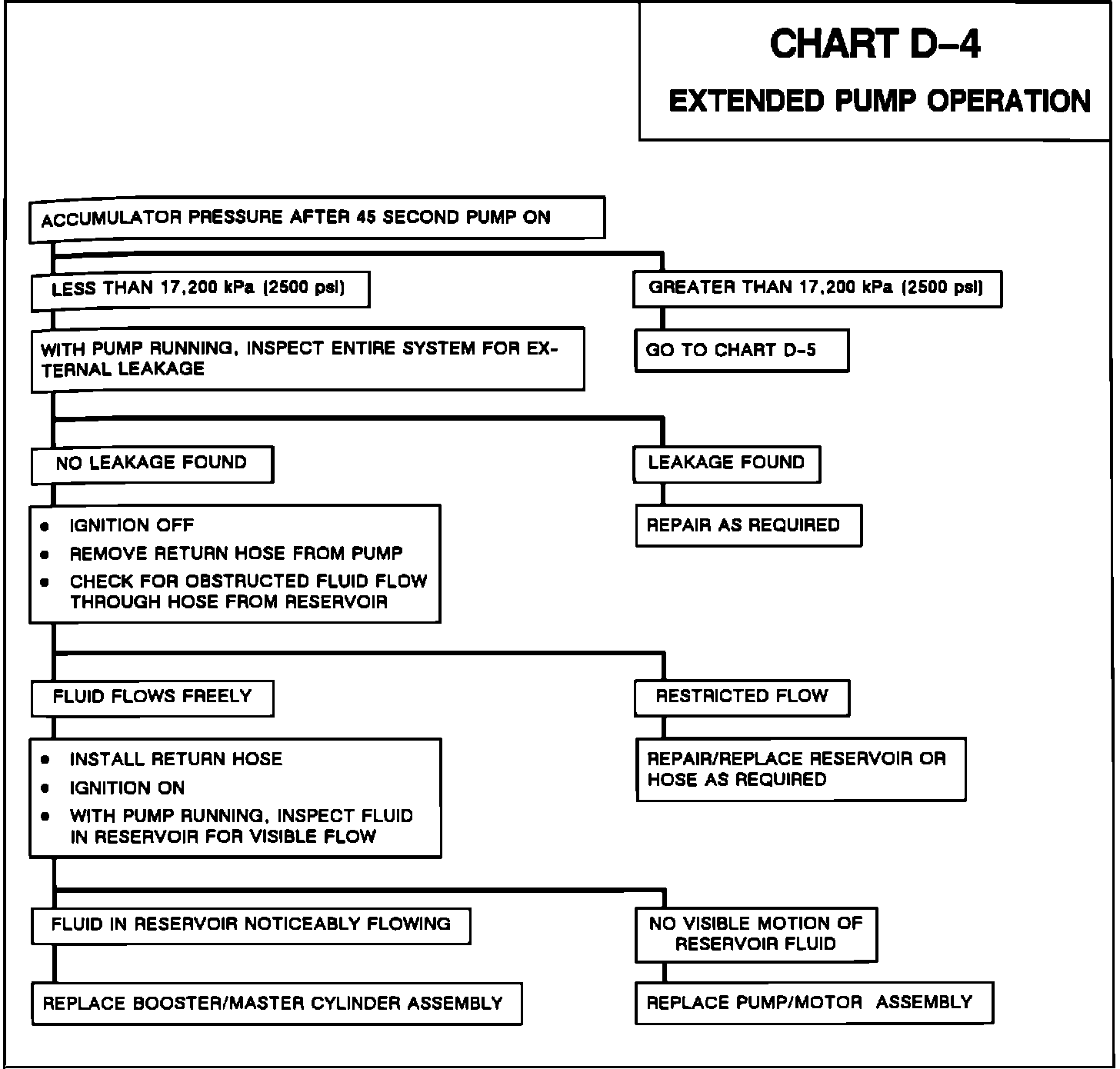

Fig. 43 Chart D-4, Extended Pump Operation:
