Chart C-1, Brake Pressure Input
Chart C-1, Brake Pressure Input

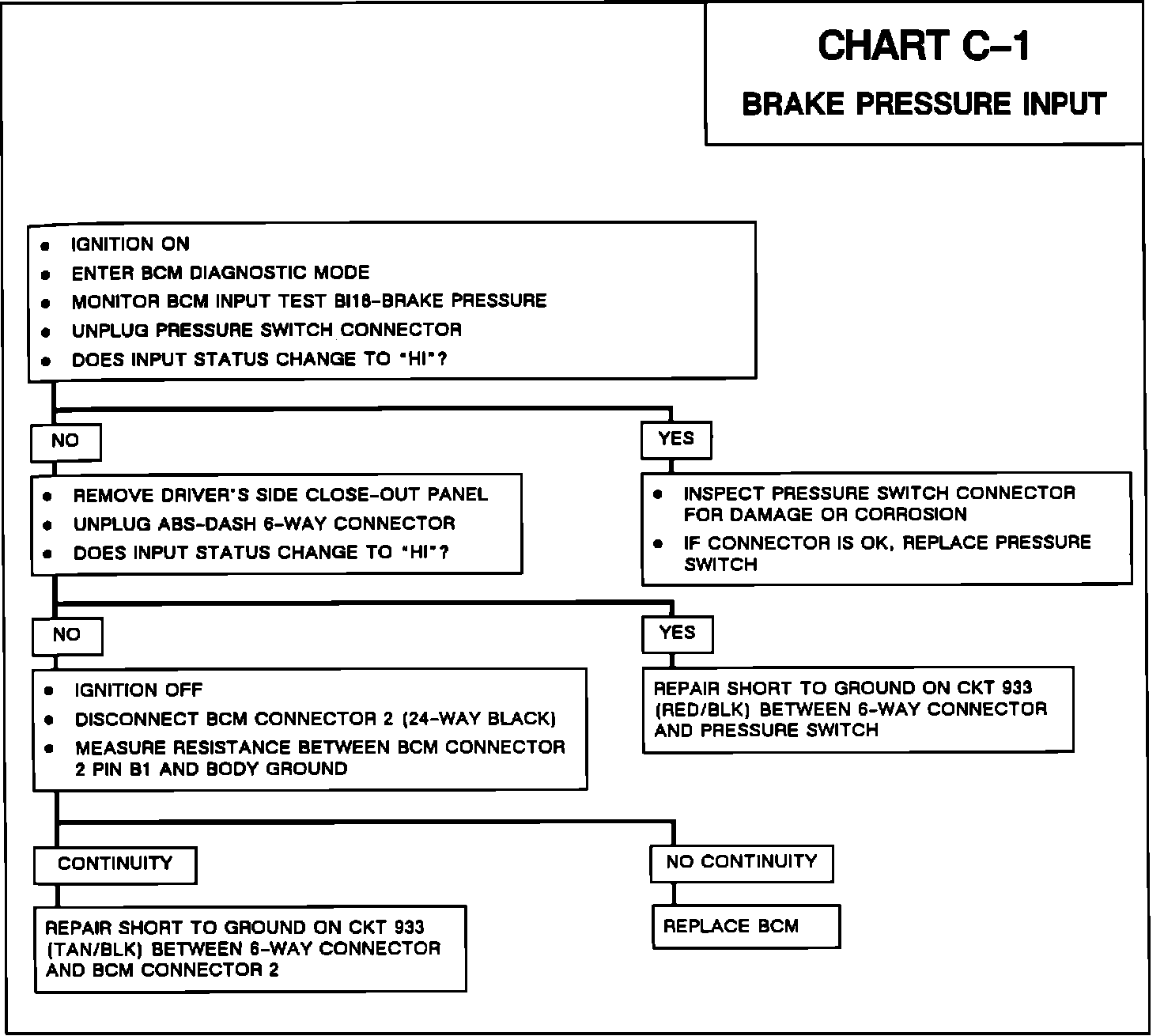

Fig. 36 Chart C-1, Brake Pressure Input:
