Chart B-5 Anti-Lock Lamp Circuits
Chart B-5 Anti-Lock Lamp Circuits

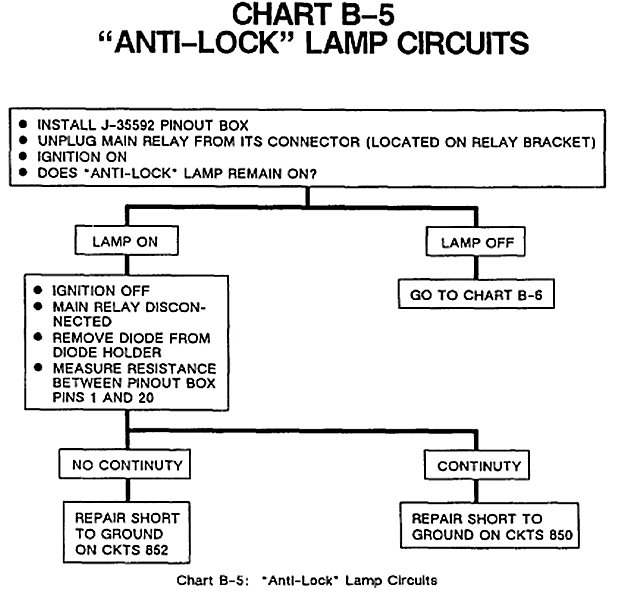

Fig. 33 Chart B-5, Anti-lock Lamp Circuits:
