Chart B-1 Ignition Enable Circuit
Chart B-1 Ignition Enable Circuit

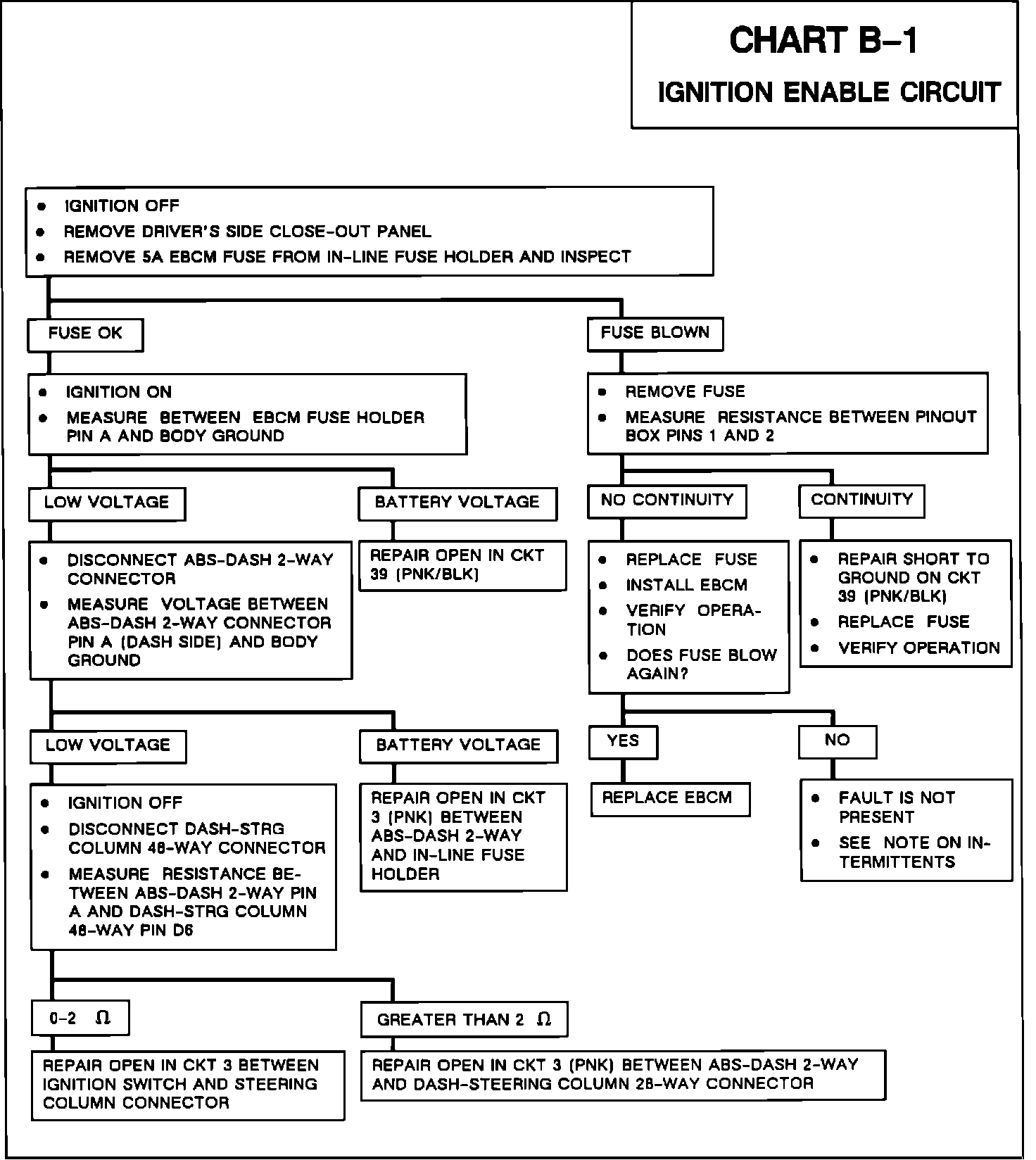

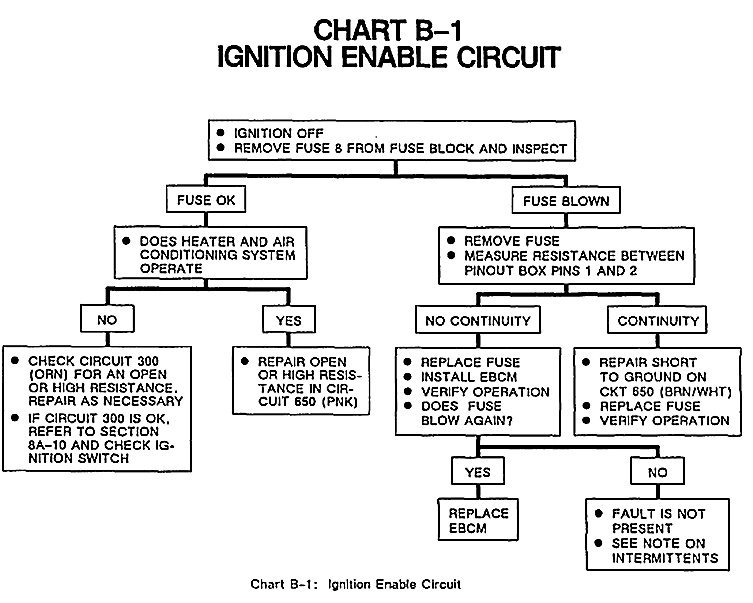

Fig. 29 Chart B-1, Ignition Enable Circuit:
