Chart D-6, Hydraulic Unit Leakdown
Chart D-6, Hydraulic Unit Leakdown

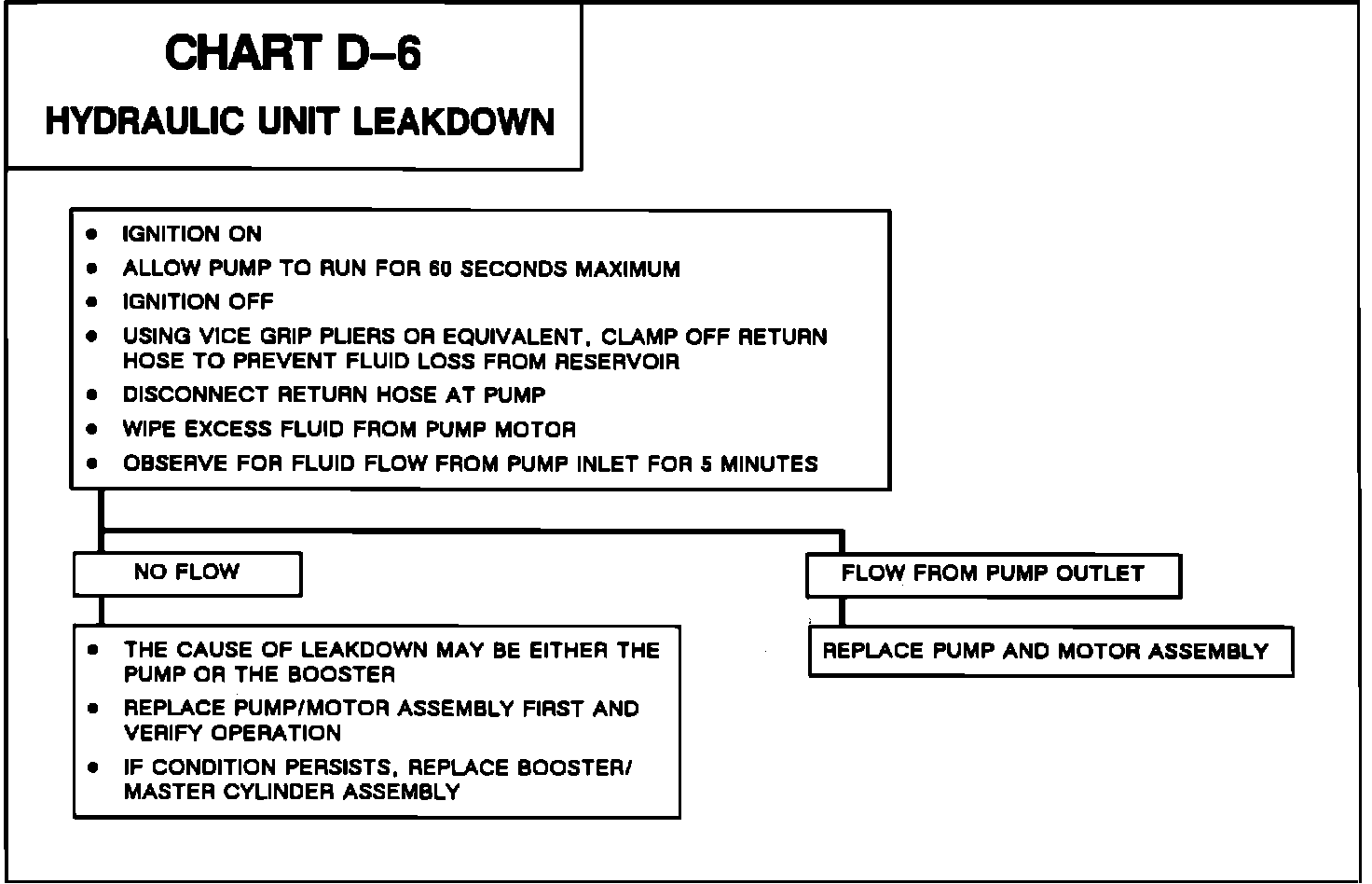

Fig. 45 Chart D-6, Hydraulic Unit Leakdown:
