Chart A-7, Code 26 (Rear Inlet Valve)
Chart A-7, Code 26 (Rear Inlet Valve)

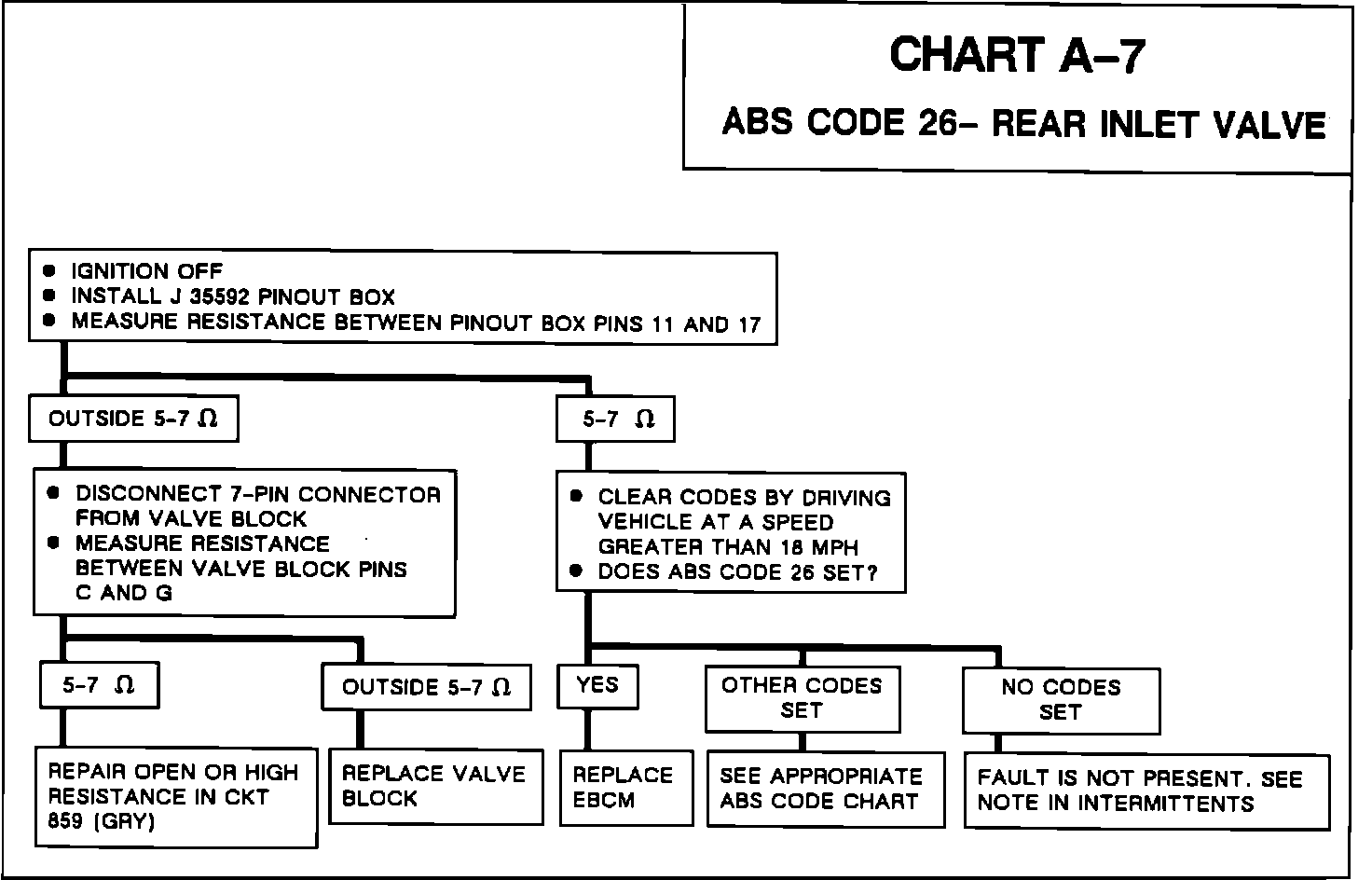

Fig. 19 Chart A-7, ABS Trouble Code 26 (Rear Inlet Valve):
