Chart A-5, Code 24 (Right Front Inlet Valve)
Chart A-5, Code 24 (Right Front Inlet Valve)

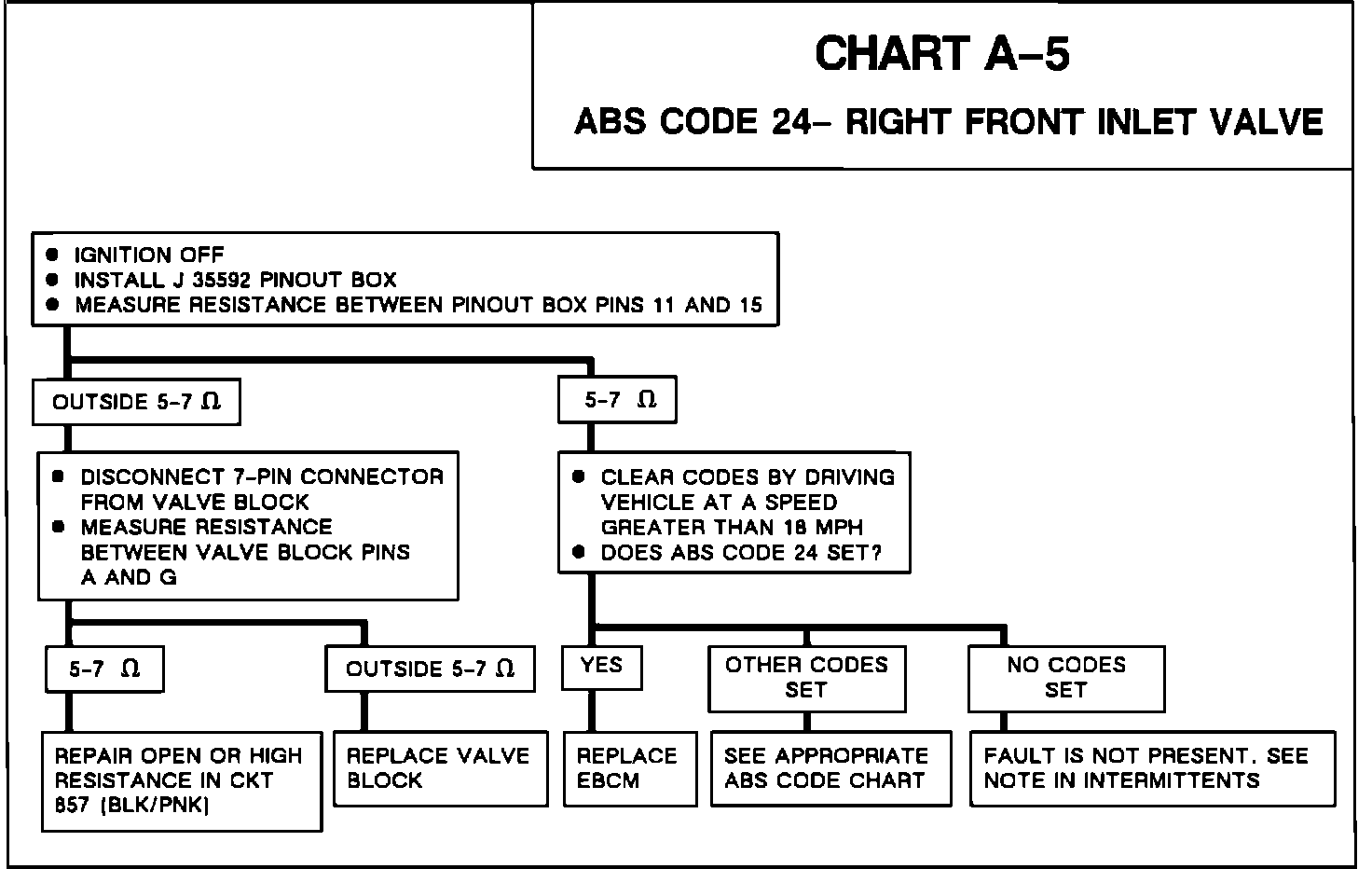

Fig. 17 Chart A-5, ABS Trouble Code 24 (Right Front Inlet Valve):
