Chart A-3, Code 22 (Left Front Inlet Valve)
Chart A-3, Code 22 (Left Front Inlet Valve)

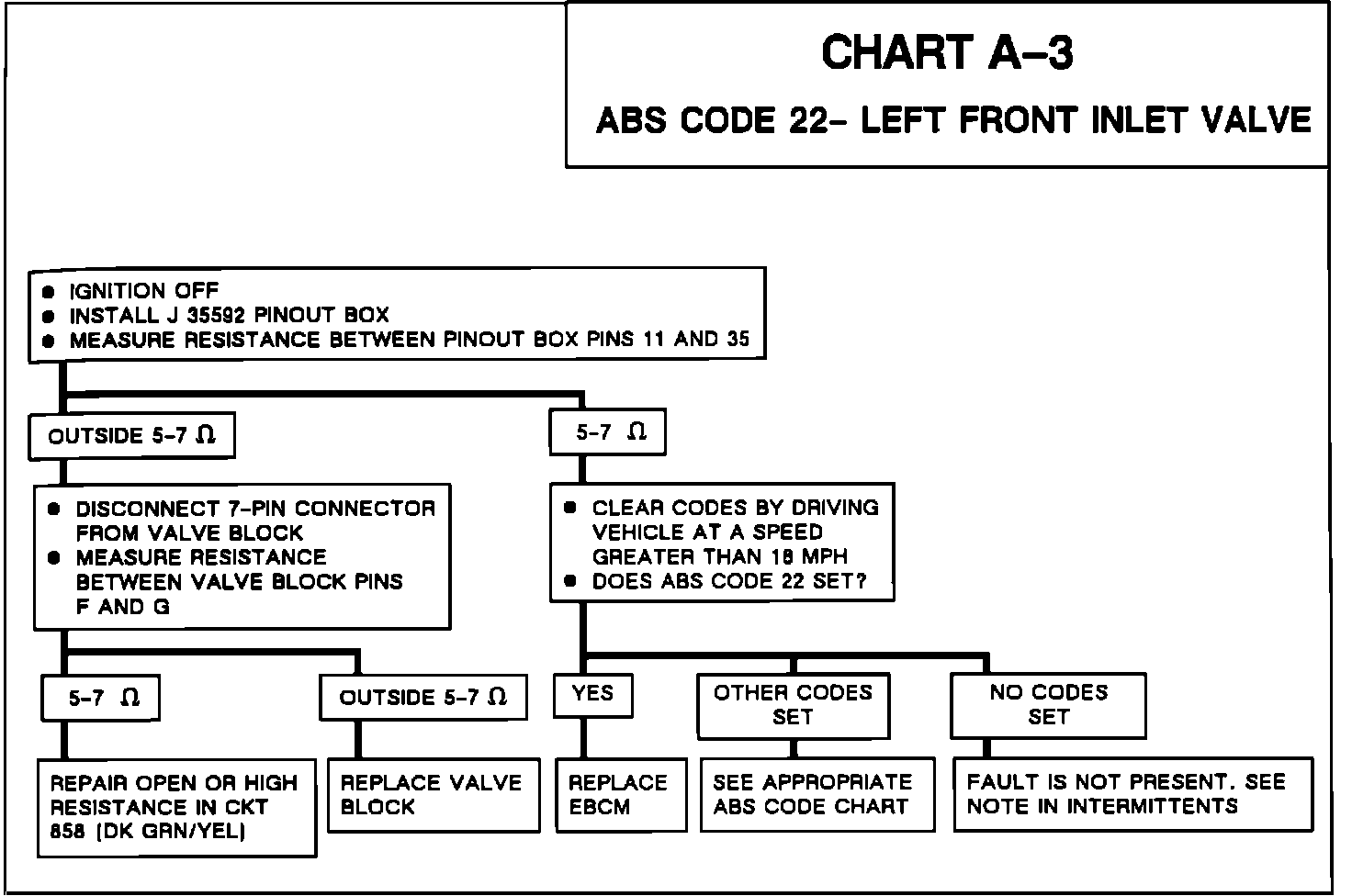

Fig. 15 Chart A-3, ABS Trouble Code 22 (Left Front Inlet Valve):
