Connector Views

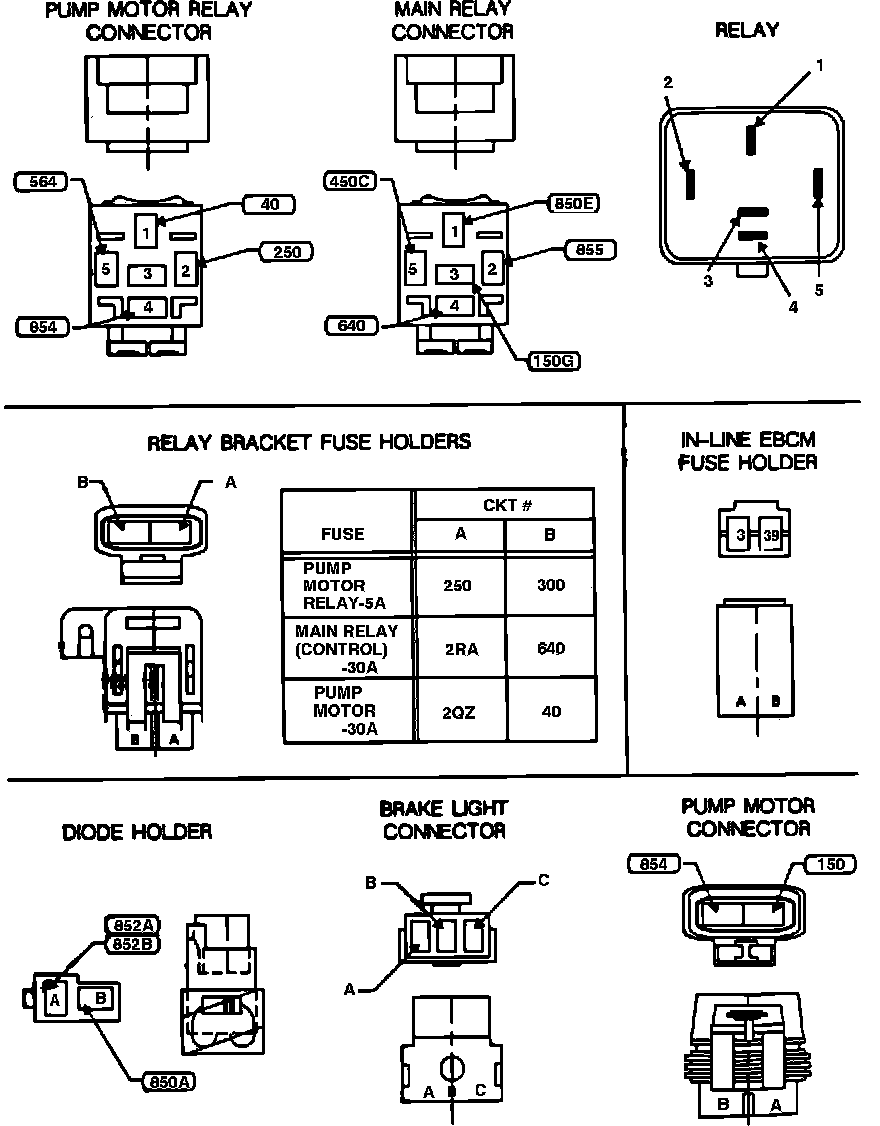

Fig. 11 ABS Electrical Connector Views (Part 1 Of 3):

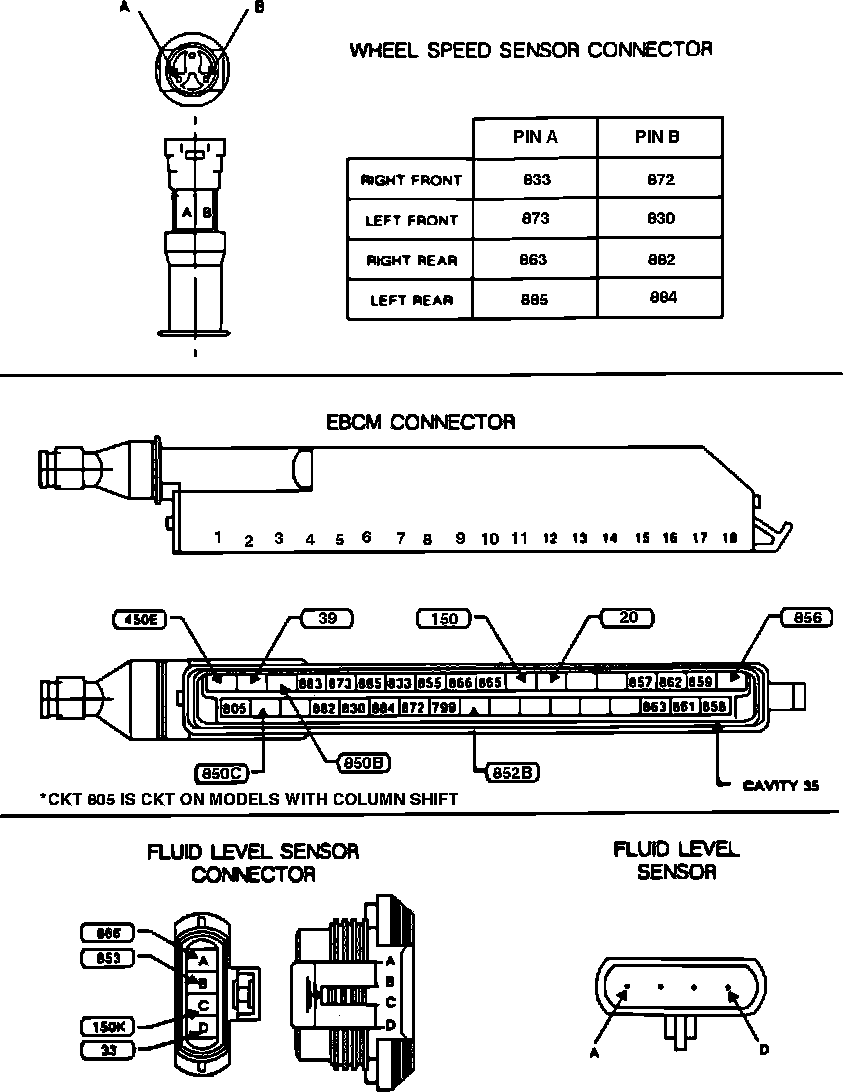

Fig. 11 ABS Electrical Connector Views (Part 2 Of 3):



Fig. 11 ABS Electrical Connector Views (Part 3 Of 3):
