Antenna: Service and Repair

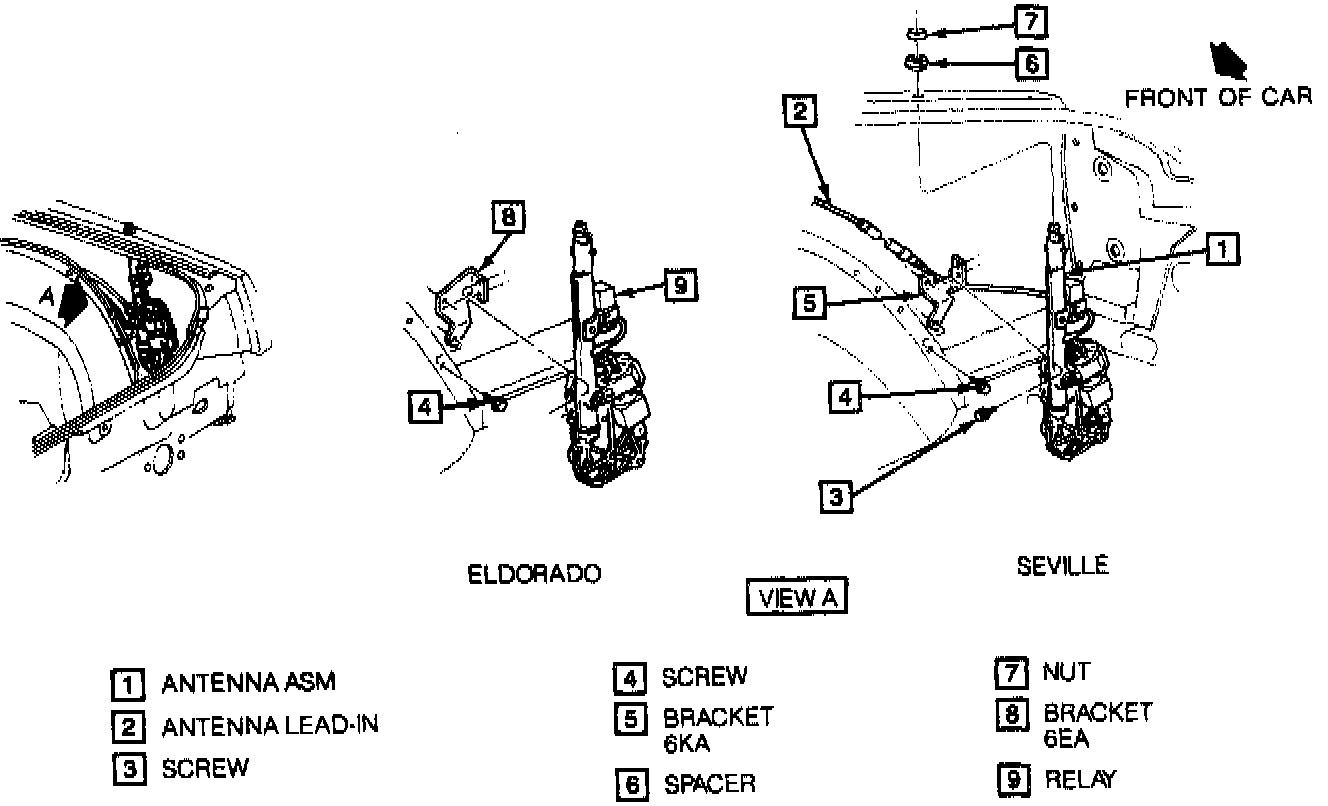

POWER ANTENNA ASSEMBLY

Radio Power Antenna Removal:

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Open trunk and remove right hand sound insulating panel.
3. Antenna lead-in from radio.
4. Electrical connector from antenna relay.
5. Using appropriate tool, remove antenna mounting nut above fender, being careful not to strip nut or slip and damage paint.
6. Nut from mounting bracket to wheel well weld flange.
7. Antenna assembly.

INSTALL OR CONNECT
1. Position antenna assembly.
2. Nut through mounting bracket to wheel well.
3. Antenna mounting nut.
4. Electrical connector to antenna relay.
5. Antenna lead-in from radio.
6. Sound insulating panel.
7. Negative battery cable.
