EGR Diagnosis (Chart C-7). Except 1986
EGR Diagnosis (Chart C-7). Except 1986

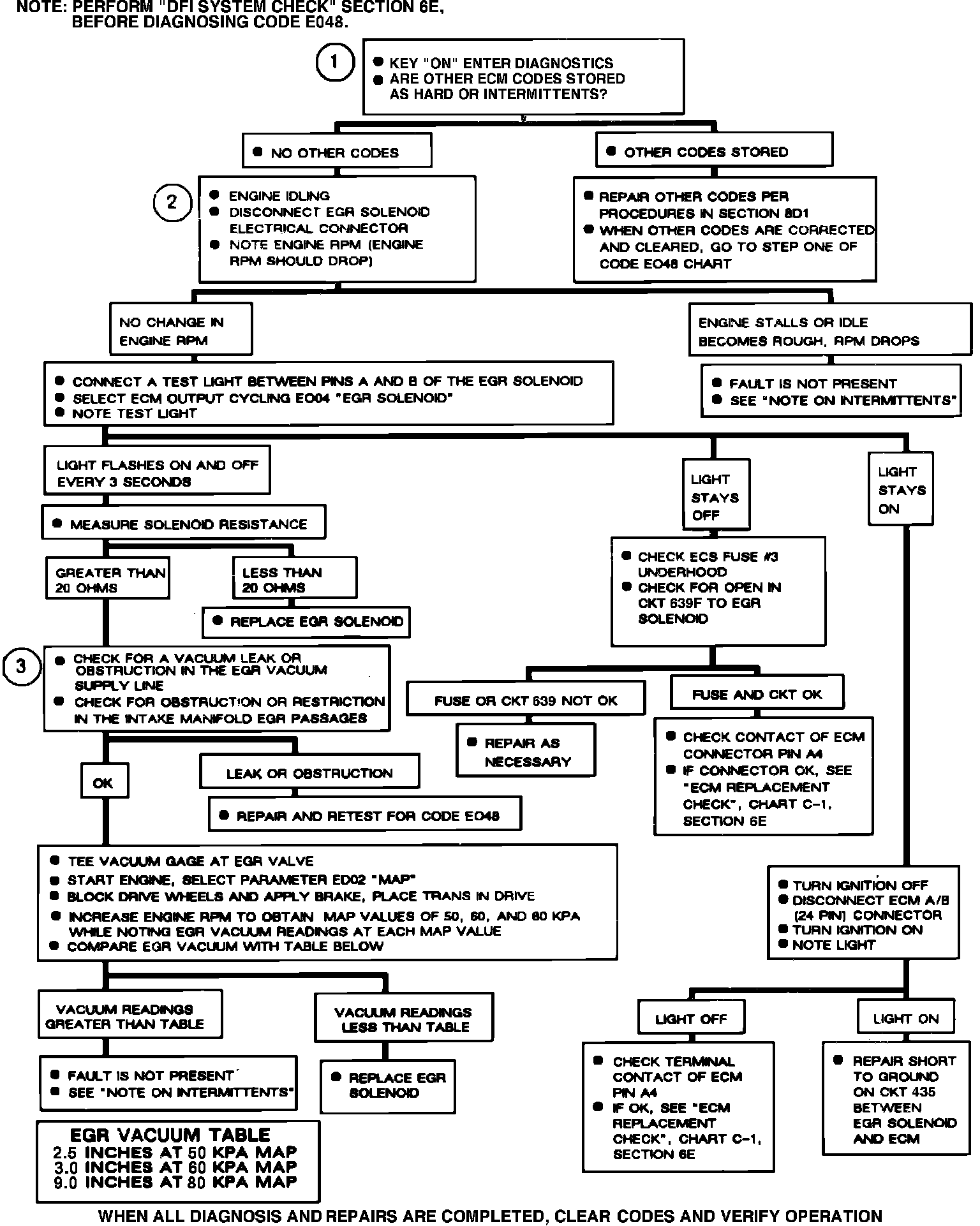

Fig. 25 EGR Diagnosis (Chart C-7). Except 1986:
