EGR Diagnosis (Chart C-7). 1986
EGR Diagnosis (Chart C-7). 1986

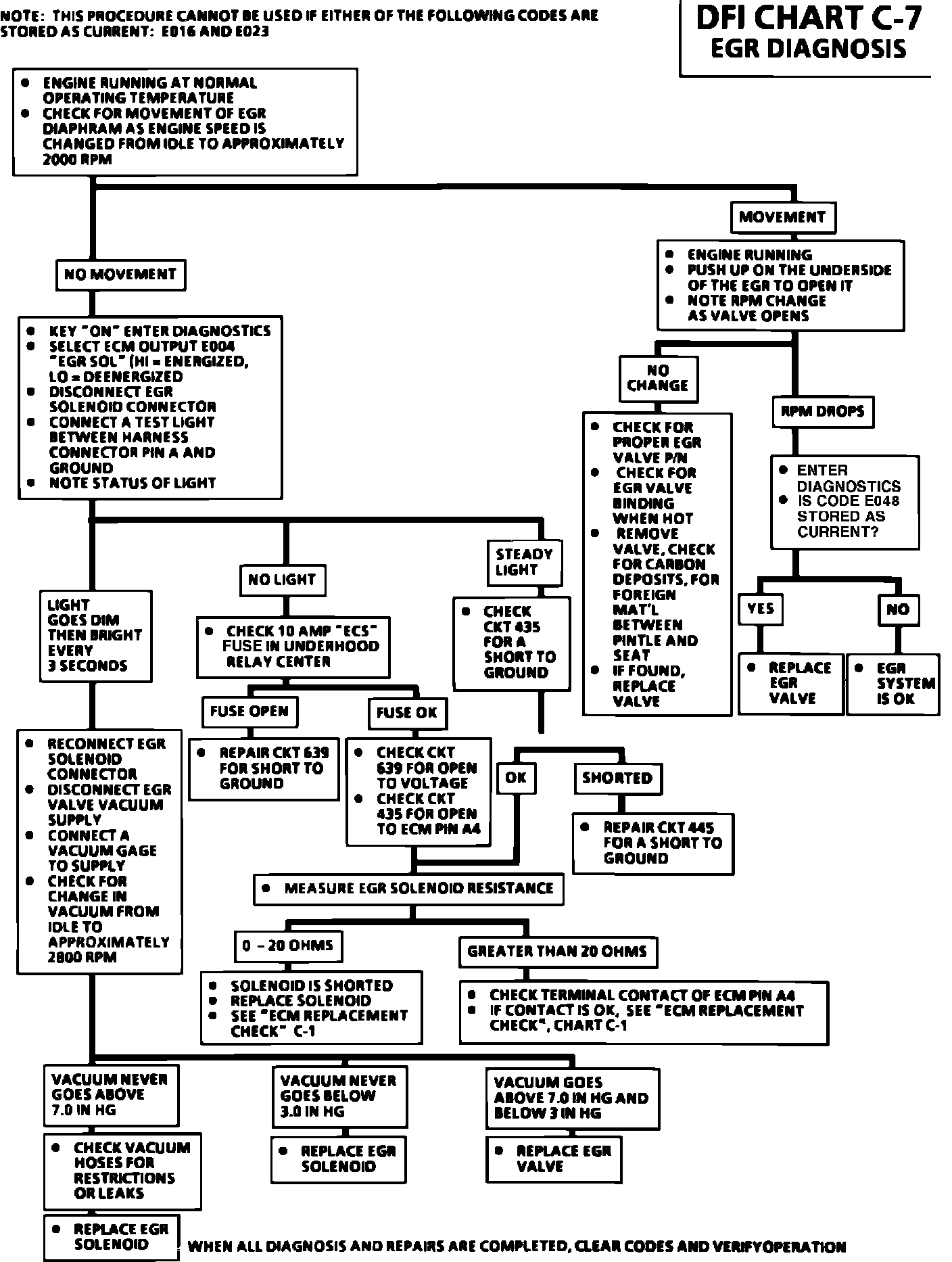

Fig. 24 EGR Diagnosis (Chart C-7). 1986:
