Power Distribution Wiring Circuit
>>
Part 6 of 6 (ISO Junction Block)
Part 6 of 6 (ISO Junction Block)

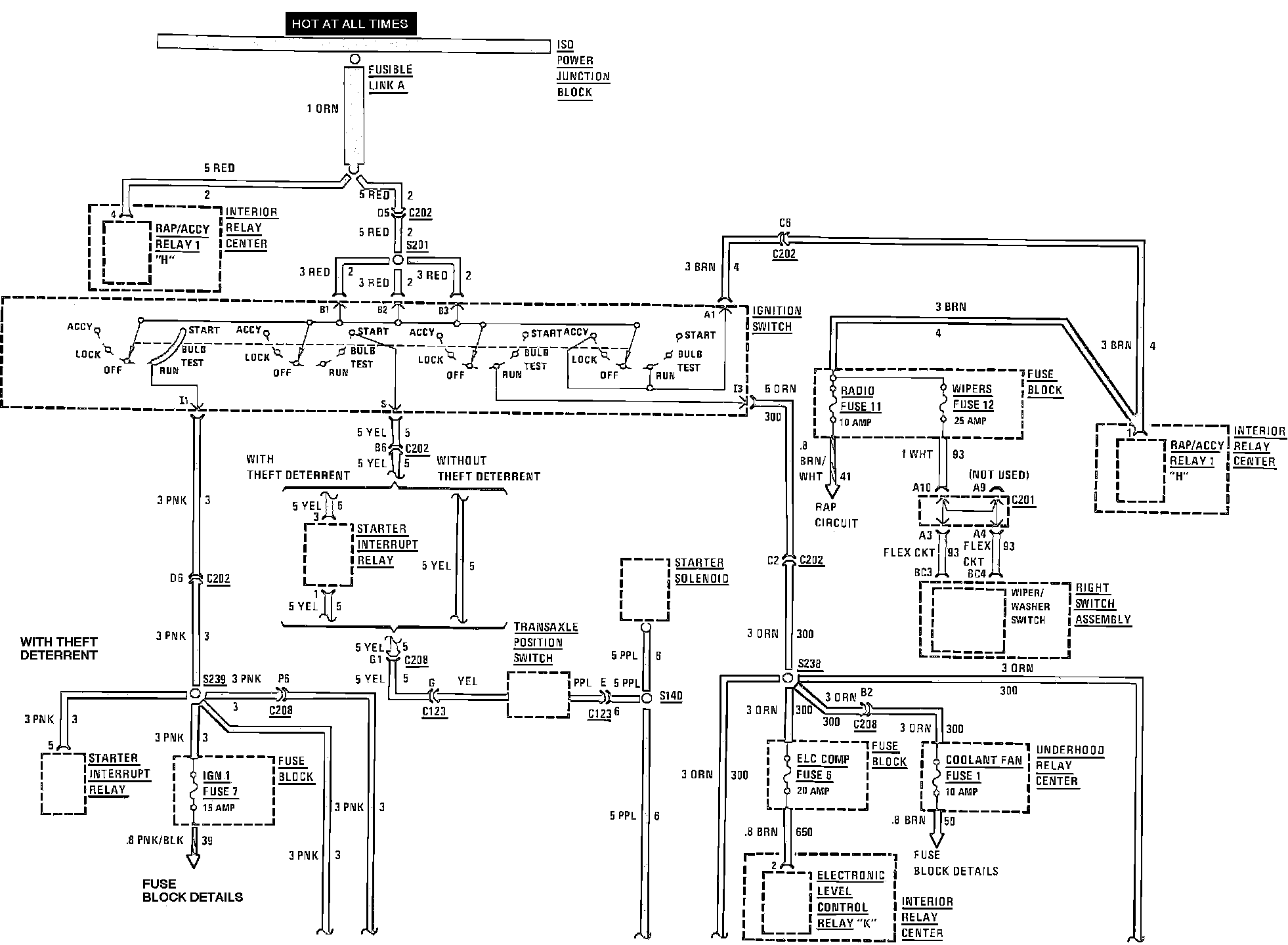

ISO Junction Block (Part 6a Of 6):

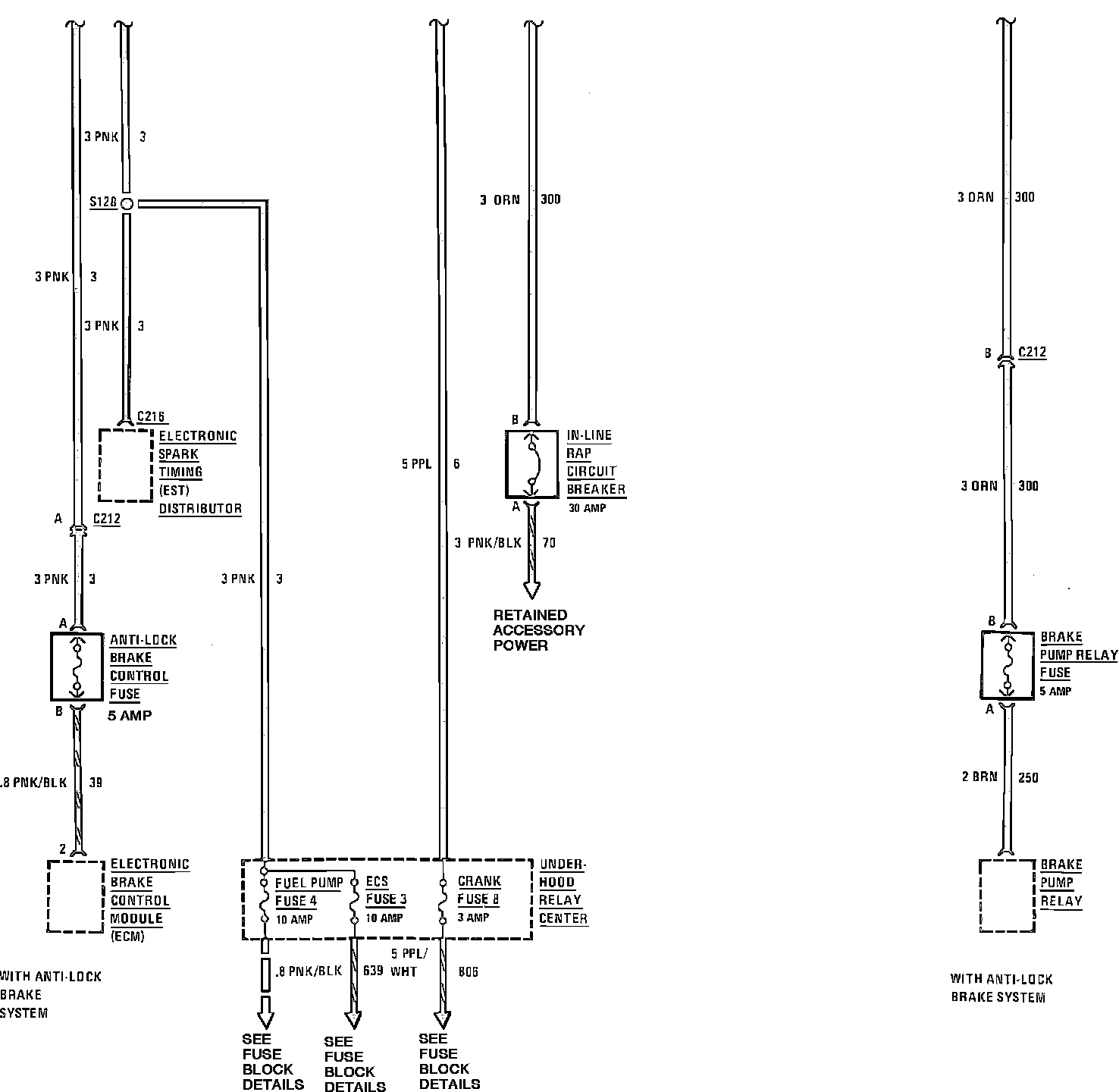

ISO Junction Block (Part 6b Of 6):
