Power Distribution Wiring Circuit
>>
Part 3 of 6 (ISO Junction Block)
Part 3 of 6 (ISO Junction Block)
ISO Junction Block (Part 3a Of 6):

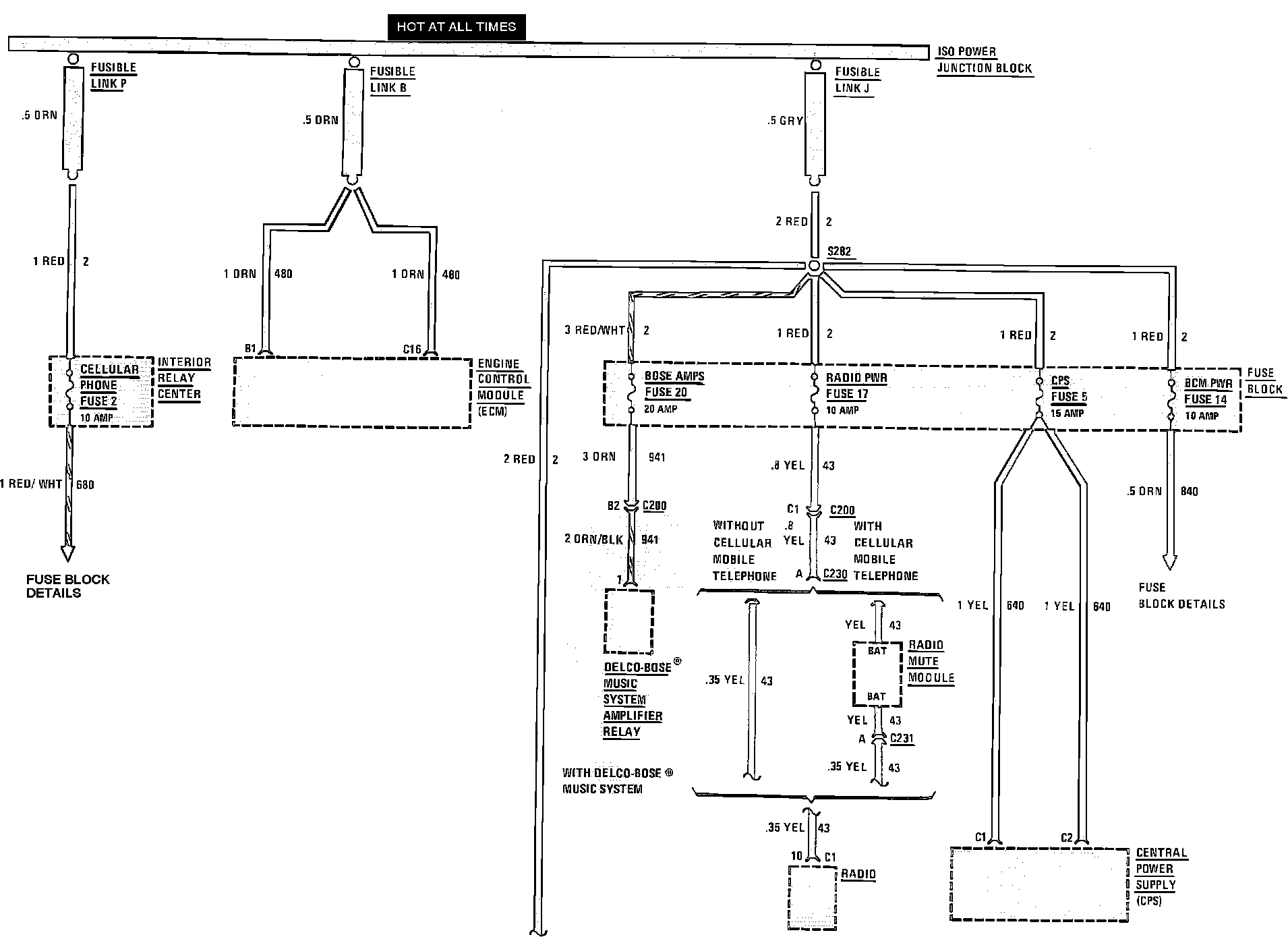

ISO Junction Block (Part 3b Of 6):
