Home
>>
Cadillac
>>
1988
>>
Seville V8-273 4.5L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G310
G310

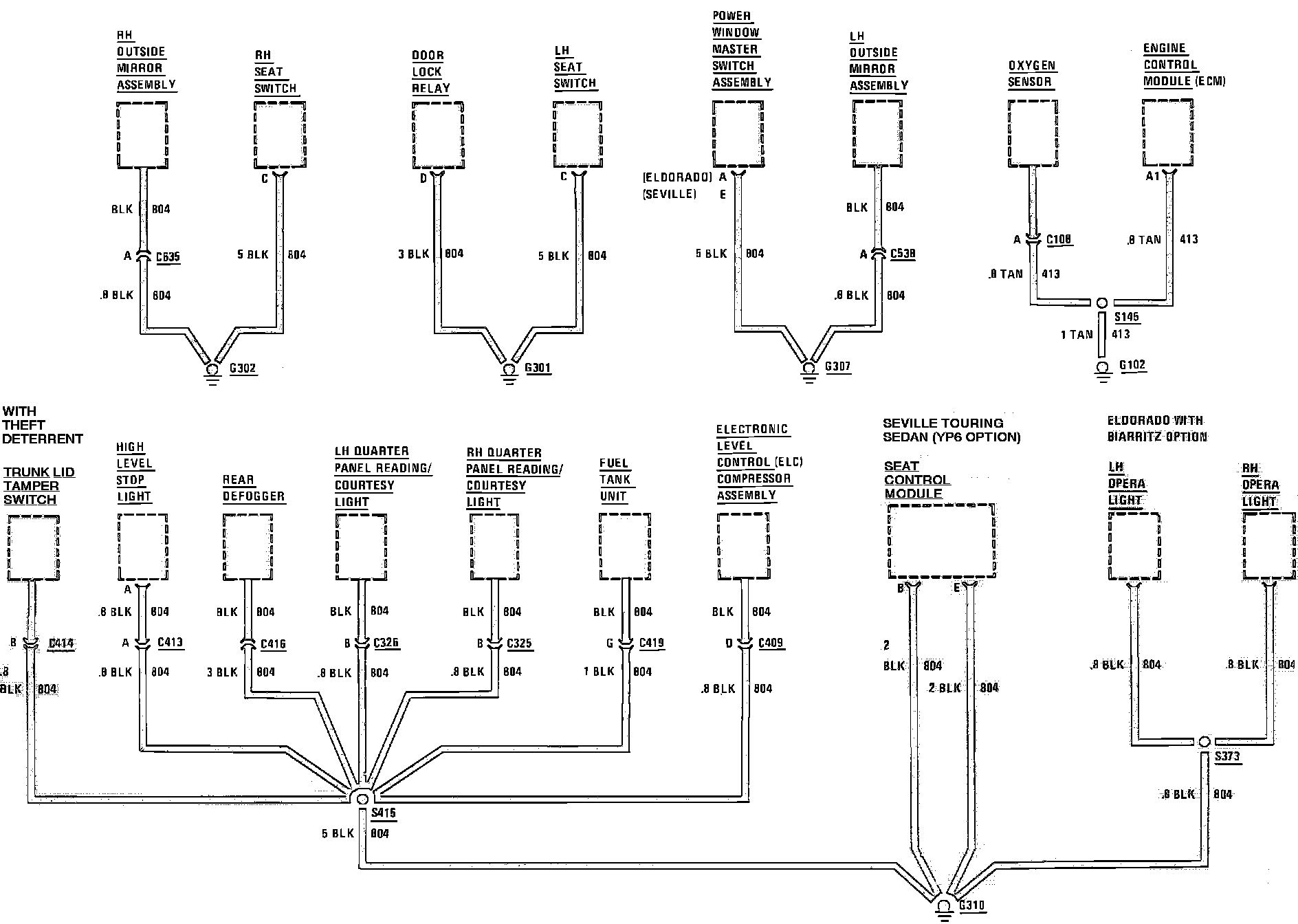

Ground Distribuiton (G102, G301, G302, G307 & G310):
