Circuit Breaker 25 - Retails Access Power
Circuit Breaker 25 - Retails Access Power

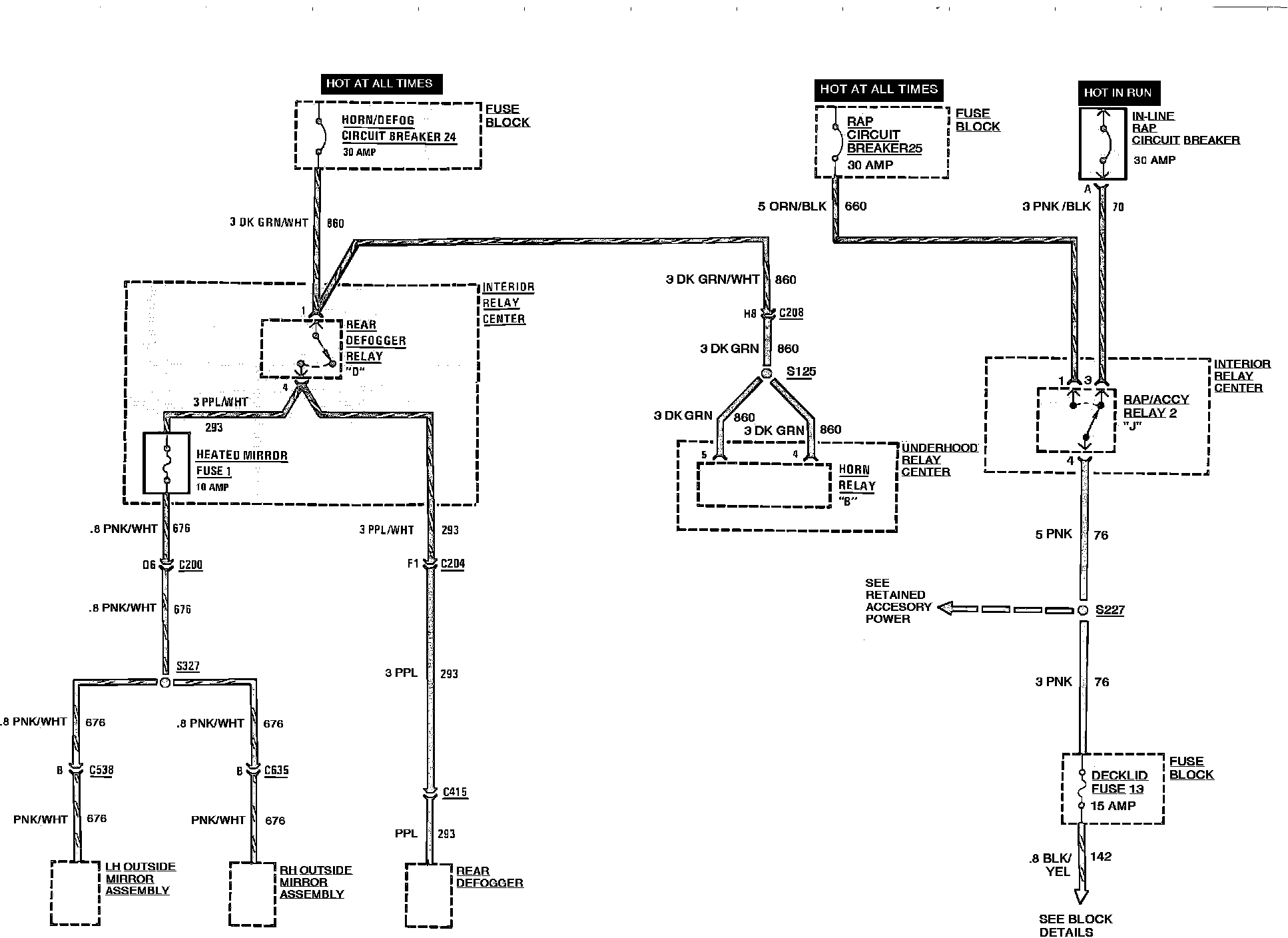

Fuse Block Detail (Fuse 1 & Circuit Breaker 24 & 25):
