With Automatic Door Locks

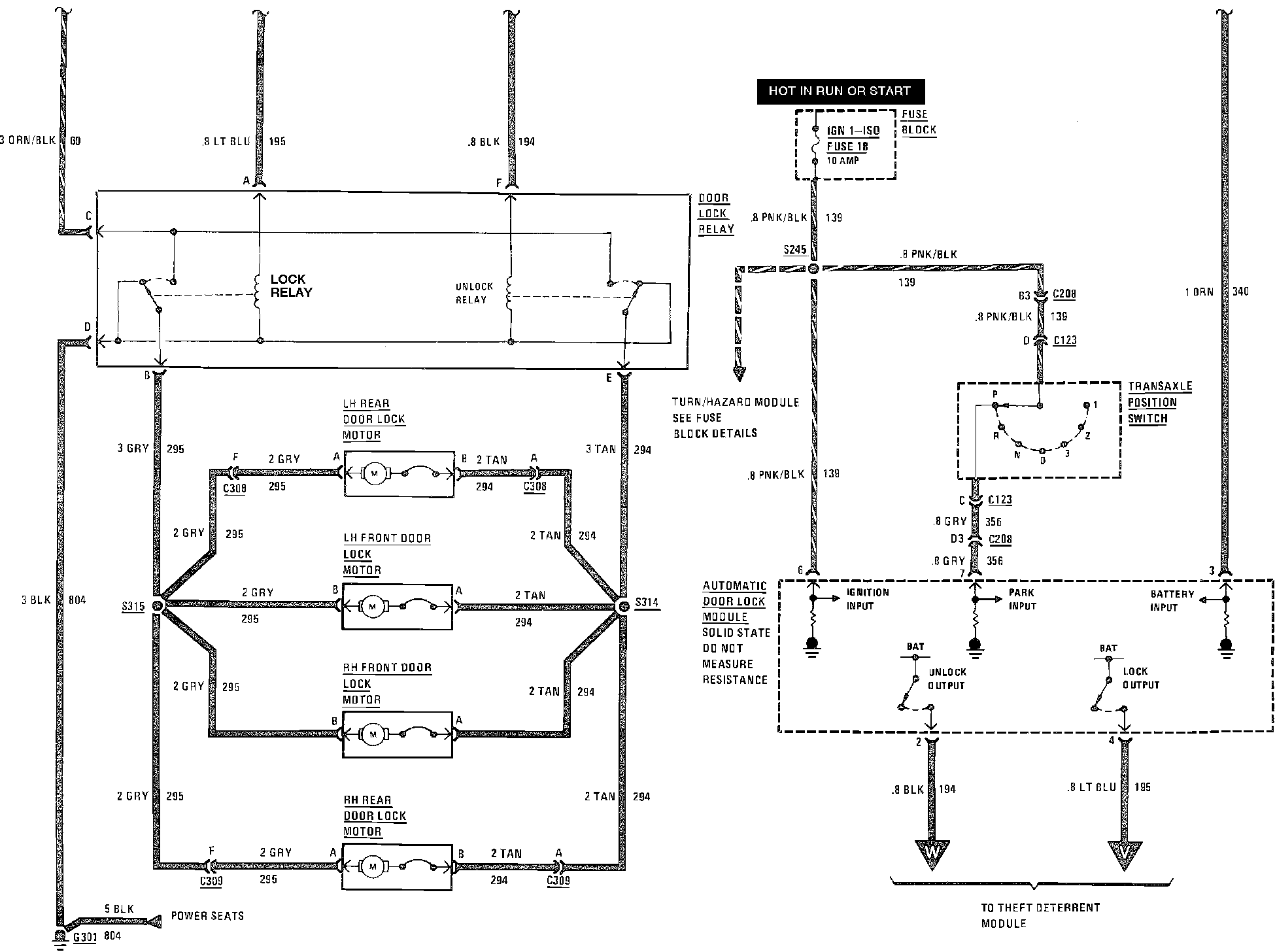

Power Door Lock Wiring Circuit (W/Automatic Door Locks) Part 1a Of 2:

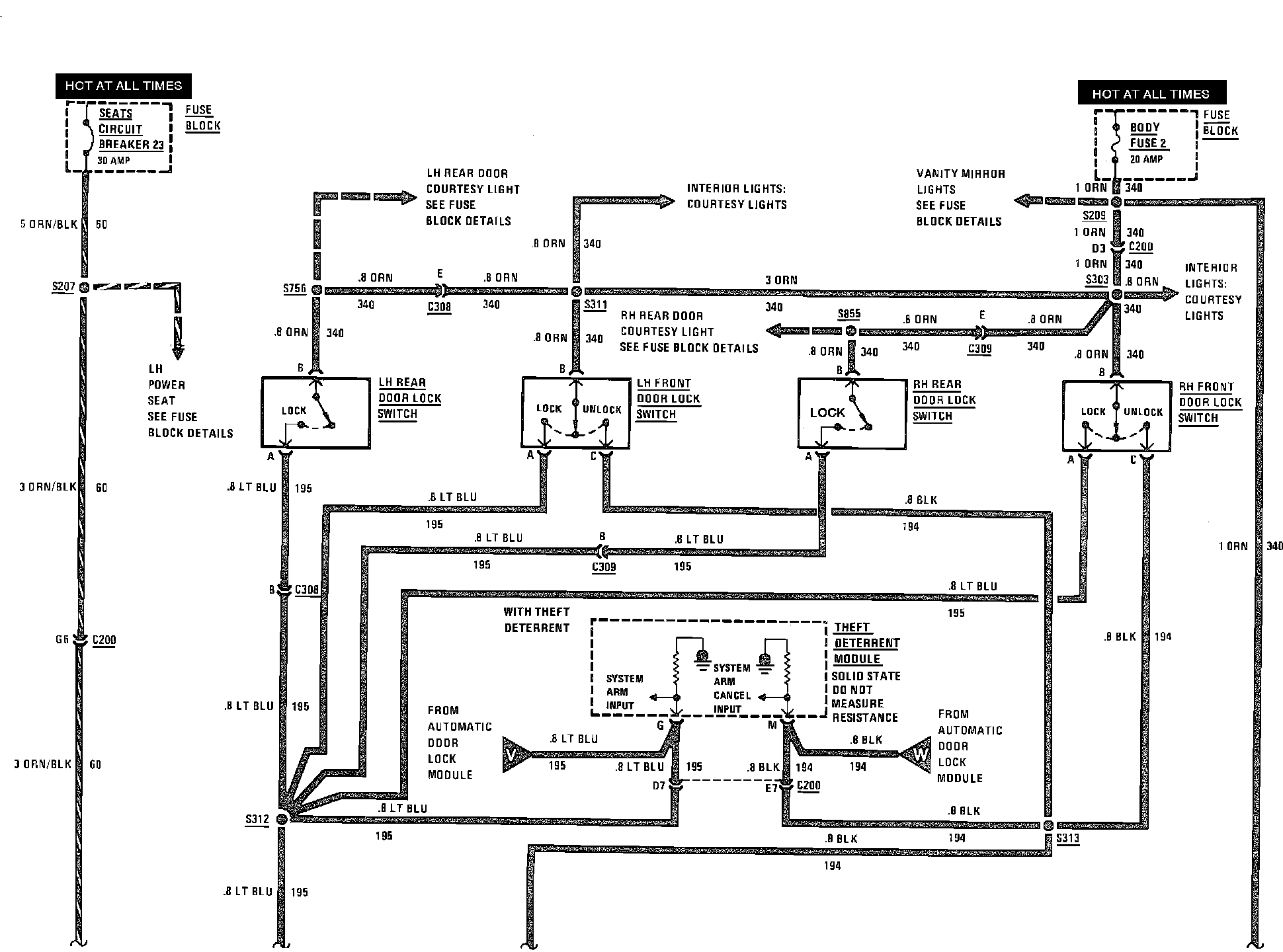

Power Door Lock Wiring Circuit (W/Automatic Door Locks) Part 1b Of 2:

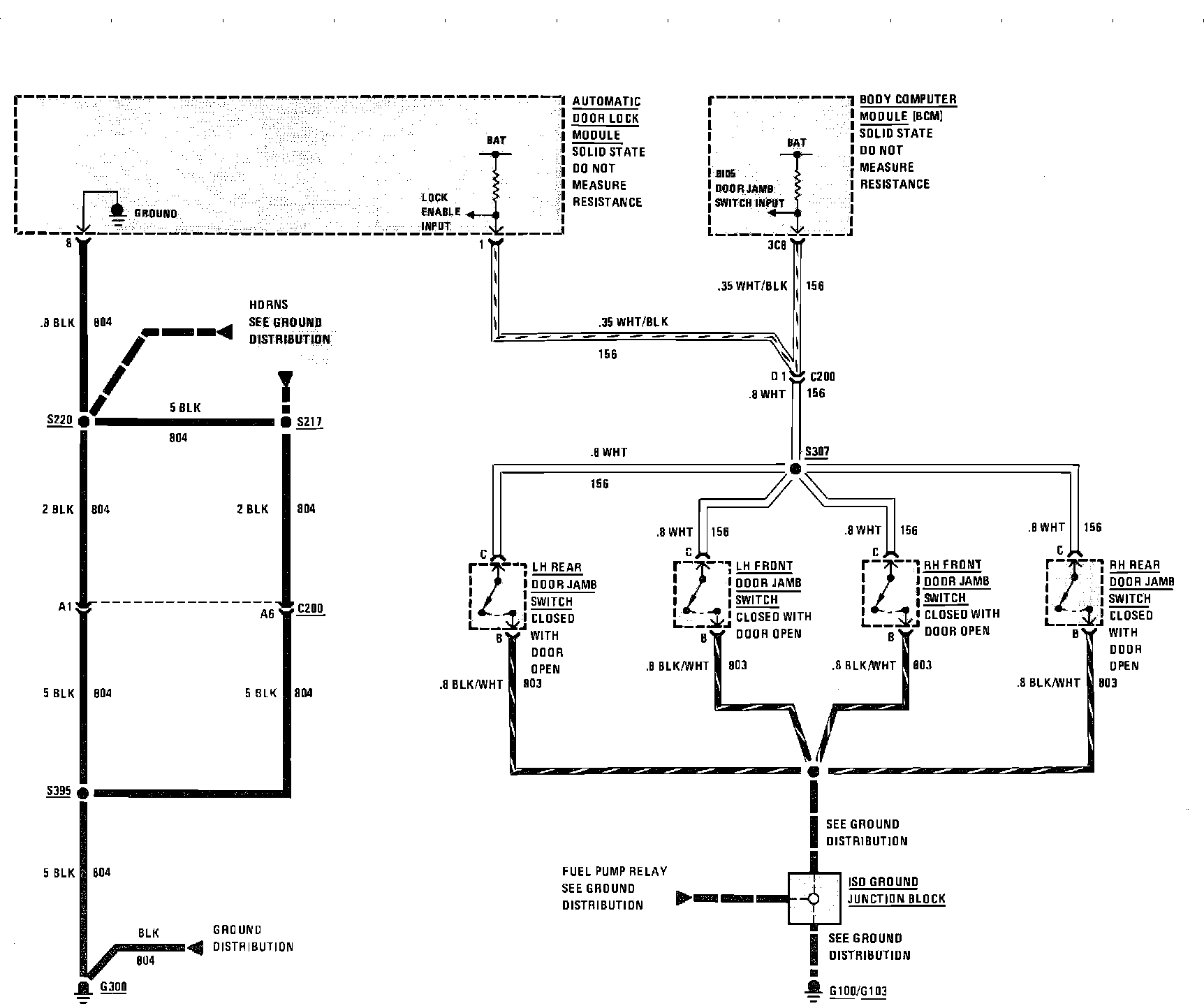

Power Door Lock Wiring Circuit (W/Automatic Door Locks) Part 2 Of 2:
