Cadillac
>>
1988
>>
Seville V8-273 4.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
Part 2 of 4
Part 2 of 4

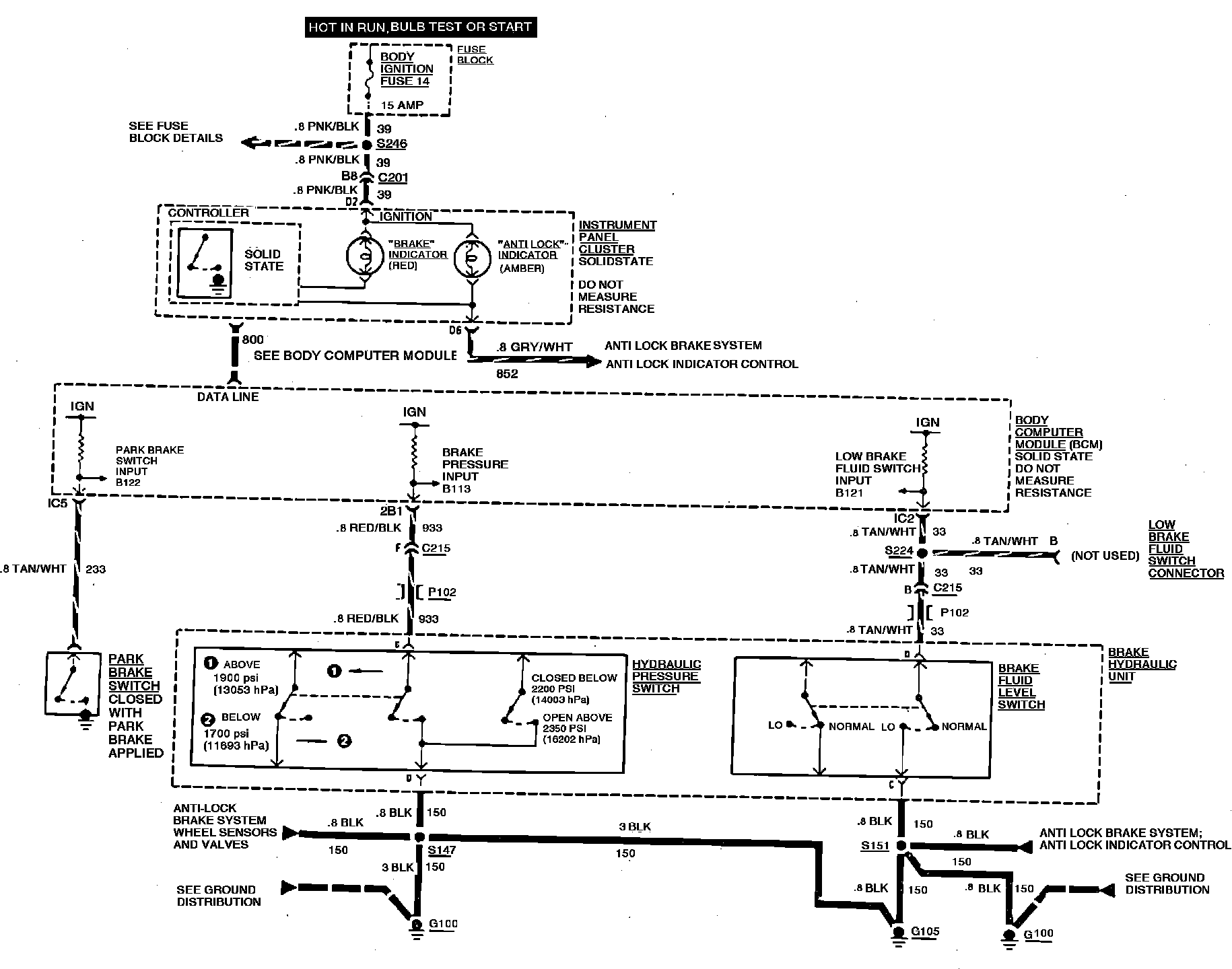

Anti-lock Brake System Wiring Circuit (Part 2 Of 4):
