Seats - Lumbar Bladder Not Inflating or Deflating

88cadillac11

Bulletin No. T-89-14
File in Group 10
Number 140
Corp. Ref. No. 811609
Date Sept. 1988
SUBJECT: LUMBAR SEAT BLADDER NOT INFLATING OR DEFLATING

MODELS AFFECTED: 1988 SEVILLE TOURING SEDANS (STS)


Some 1988 Seville Touring Sedans (STS) may experience a condition where the hose leading from the lumbar bladder gets kinked and/or bent preventing the bag from inflating or deflating. This condition may be caused by an improperly routed hose from the lumbar bag. To repair this condition use the following procedure:

1. Remove seat and disconnect electrical connectors. Place seat on protected surface.

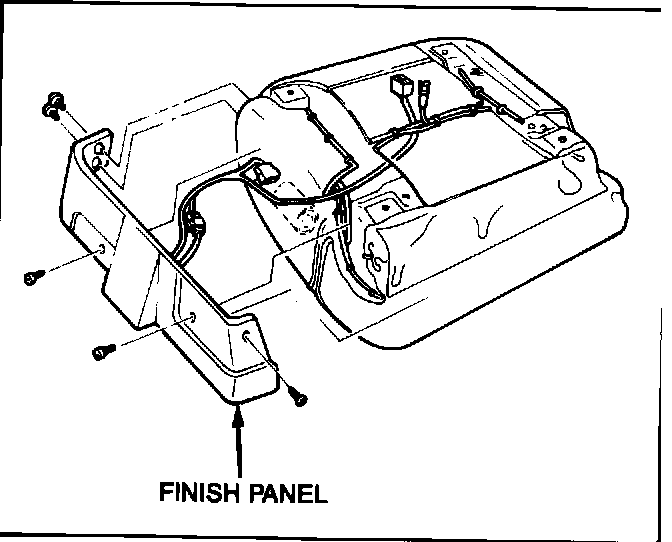

FIGURE 1 - REMOVAL OF FINISH PANEL:

2. Remove seat finish panel and recliner harness, refer to Figure 1.

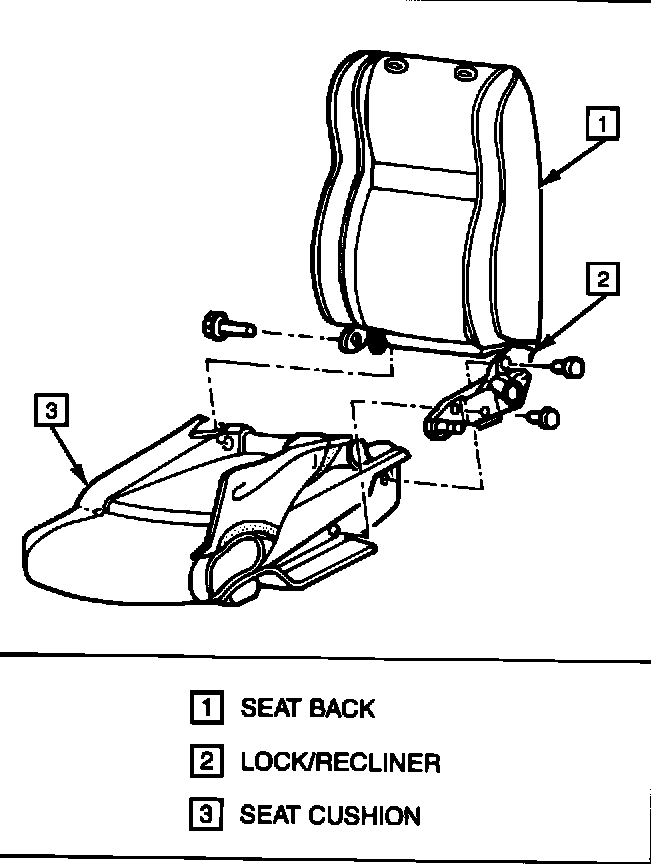

FIGURE 2 - REMOVAL OF SEAT BACK HINGES:

3. Remove seat back at hinges (three 13mm bolts - one on inboard, two on outboard), refer to Figure 2.

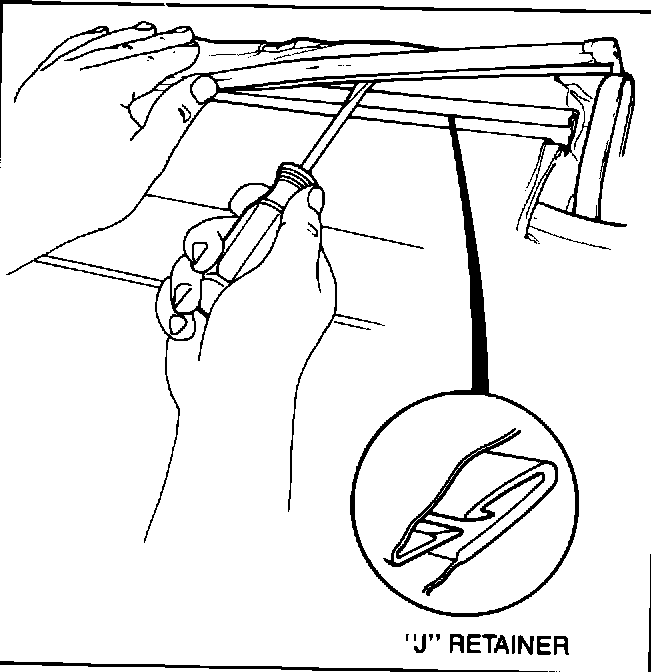

FIGURE 3 - "J" RETAINER SEPARATION:

4. Separate "J" retainer at bottom on seat back cover, refer to Figure 3.

5. Remove hog rings across bottom of seat back cover and foam bun.

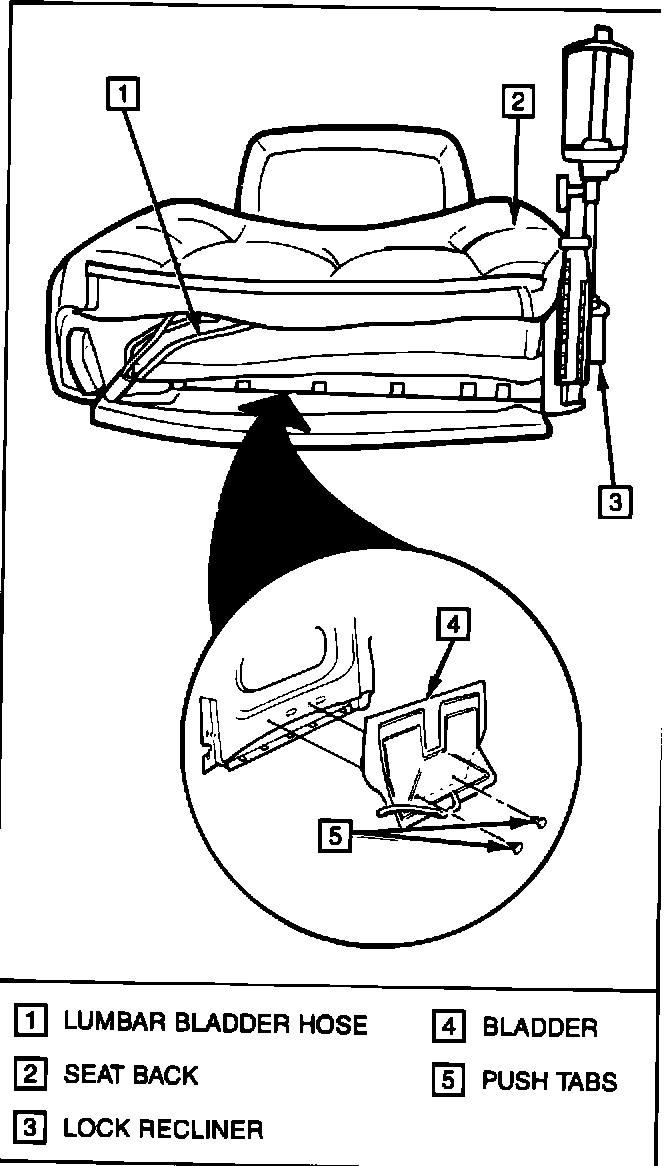

FIGURE 4 - LUMBAR BLADDER AND HOSE:

6. Separate foam and expose lumbar bladder, refer to Figure 4.
7. Inspect black lumbar hose from elbow connector and replace if it has any kinks or bends. Use similar 5mm inside diameter plastic tubing, or equivalent vacuum hose, and cut to fit.

NOTE: Point the elbow from the bag directly toward the inside of the car.

8. Reinstall bag into seat. Push adhesive on bag back into backing to secure.

9. Reinstall hog rings and "J" retainer.

10. Reinstall seat back, connectors. Replace in car.

For warranty purposes use Labor Operation T6331 at 1.2 hours for the right seat or T6332 at 1.2 hours for the left seat.
