Section 10-1 General Body Service Procedures

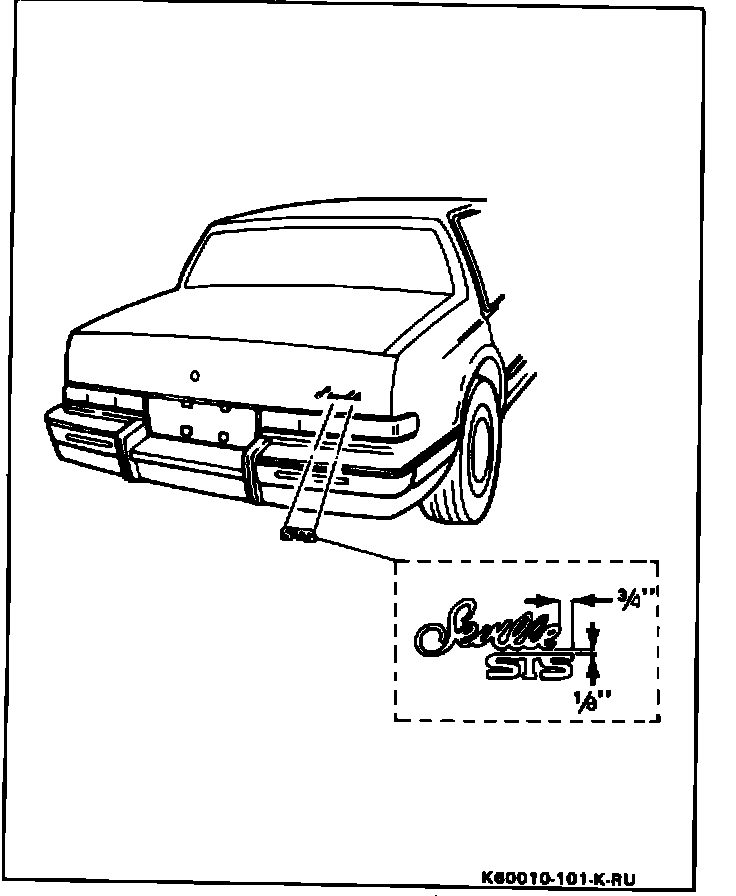

FIGURE 10-1-1 - "STS" LOGO INSTALLATION:

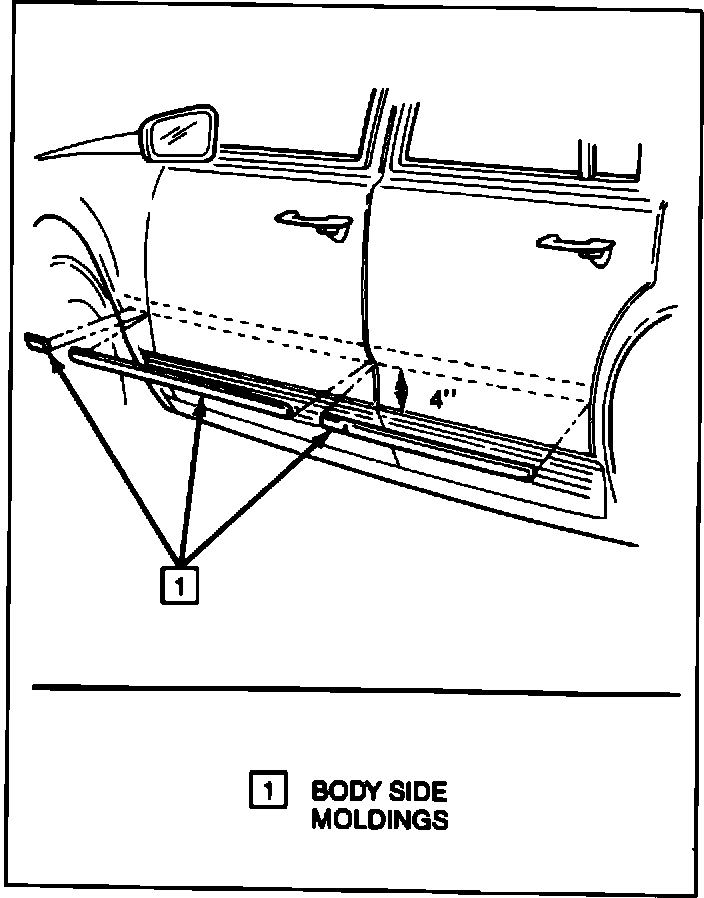

FIGURE 10-1-2 - BODY SIDE MOLDING INSTALLATION:

SEVILLE STS LOGO AND BODY SIDE MOLDINGS

(Figures 10-1-1 and 10-1-2)
v Remove or Disconnect

When removing or installing any body exterior molding, emblem or nameplate, care should be exercised:
^ Adjacent finishes should be covered to prevent damage to the finish.
^ Proper tools and care should be used to guard against molding damage.
^ When a molding is overlapped, the overlapping molding must be partially disengaged or removed first.
v Install or Connect

The STS logo and body side moldings are attached with adhesive tape. Use the following procedure to insure a good molding replacement.
1. Wash affected panel area with soap and water and wipe dry. Remove all traces of adhesive from body panel and back of molding using oil-free naphtha or alcohol.
2. Mark proper position of molding with a length of masking tape. Use adjacent moldings as a guide, if applicable.
3. Use a heat gun to heat surface where logo(s) are to be installed. The panel surface should be 21~C to 32~C or 70~F to 90~F.
4. Align logo or molding as shown and apply tape as a guide.
5. Peel backing off of logo or molding and press into place.
