Electrical - VSS Buffer Connector Mislabeled

88cad06

Bulletin No. T-88-155
File in Group 8
Number 80
Corp. Ref. No. 818107
Date June '88
SUBJECT: VEHICLE SPEED SENSOR BUFFER CONNECTOR MISLABELED

MODELS AFFECTED: 1988 BROUGHAMS AND CIMARRONS

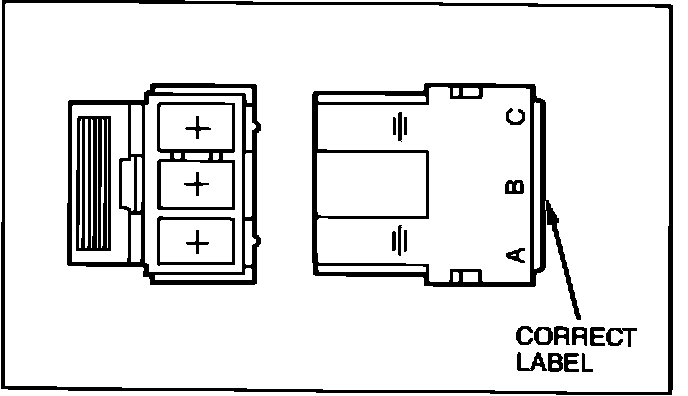

FIGURE 1 - VEHICLE SPEED SENSOR BUFFER CORRECT CONNECTOR LABEL:

Some 1988 Cadillac Broughams and Cimarrons may have a Vehicle Speed Sensor Buffer which is improperly labeled. The connector will work properly but could cause confusion if electrical troubleshooting is necessary. Figure 1 shows a properly labeled connector. The improperly labeled connectors have the "A" and "C" reversed. All Service Manual terminal call-outs use the labeling as shown in Figure 1.
