Chart 7 Compressor Engaged In Economy
Chart 7 Compressor Engaged In Economy

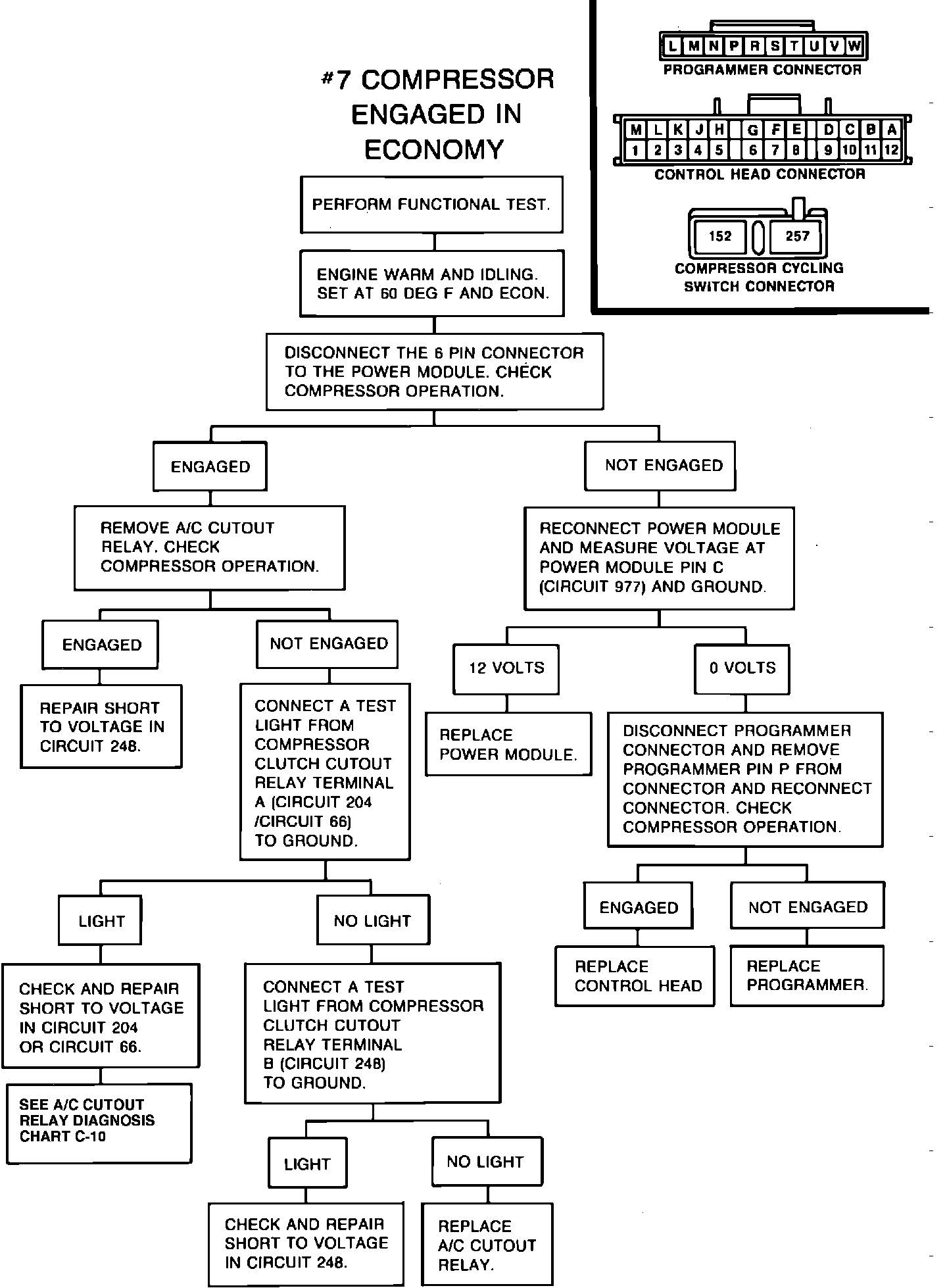

Fig. 11 Compressor engaged in economy diagnostic chart:
