Cadillac
>>
1988
>>
Fleetwood Brougham V8-307 5.0L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Chart 4 Low Blower Only
Chart 4 Low Blower Only

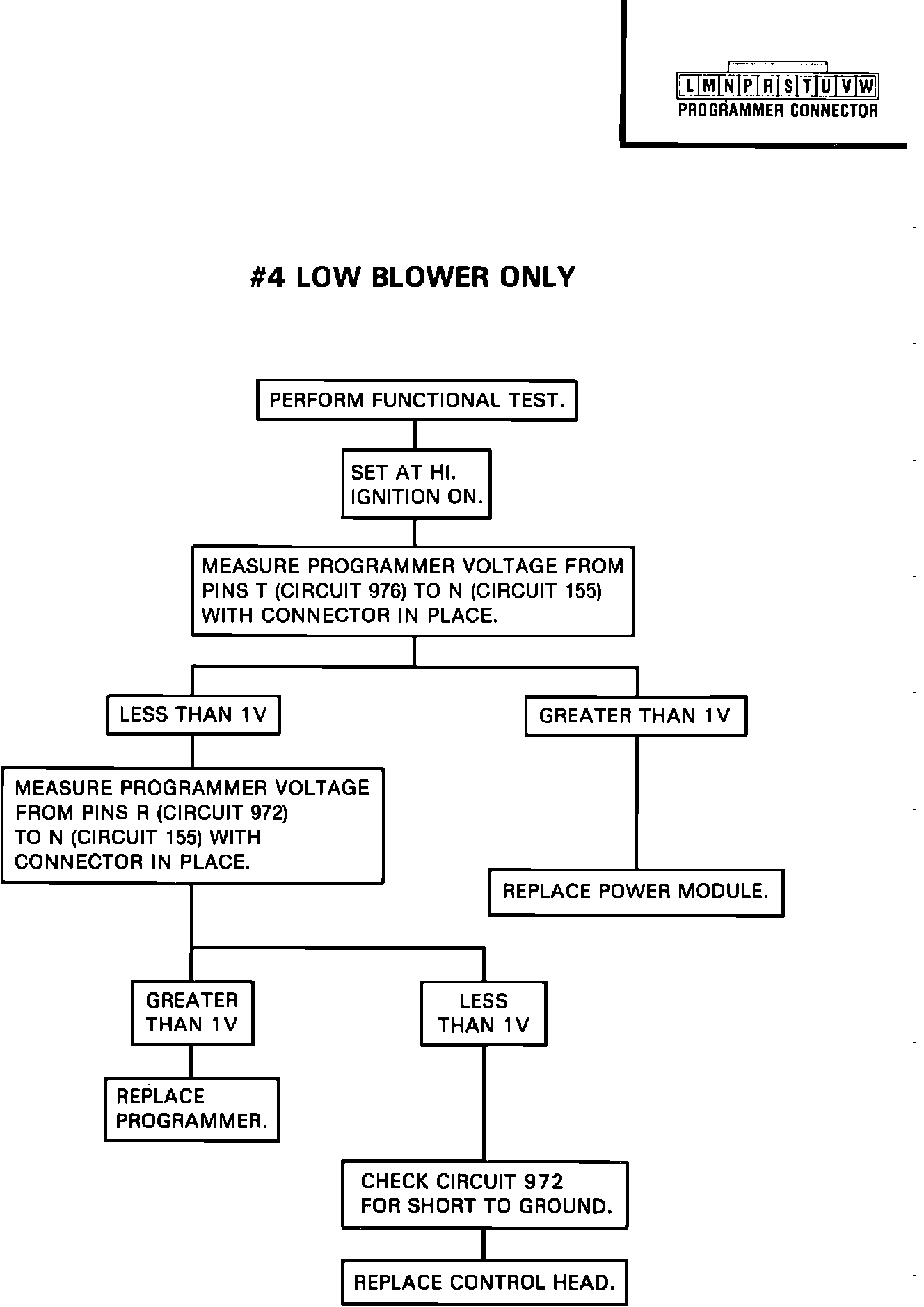

Fig. 8 Low blower only diagnosis chart:
