Temperature Controls

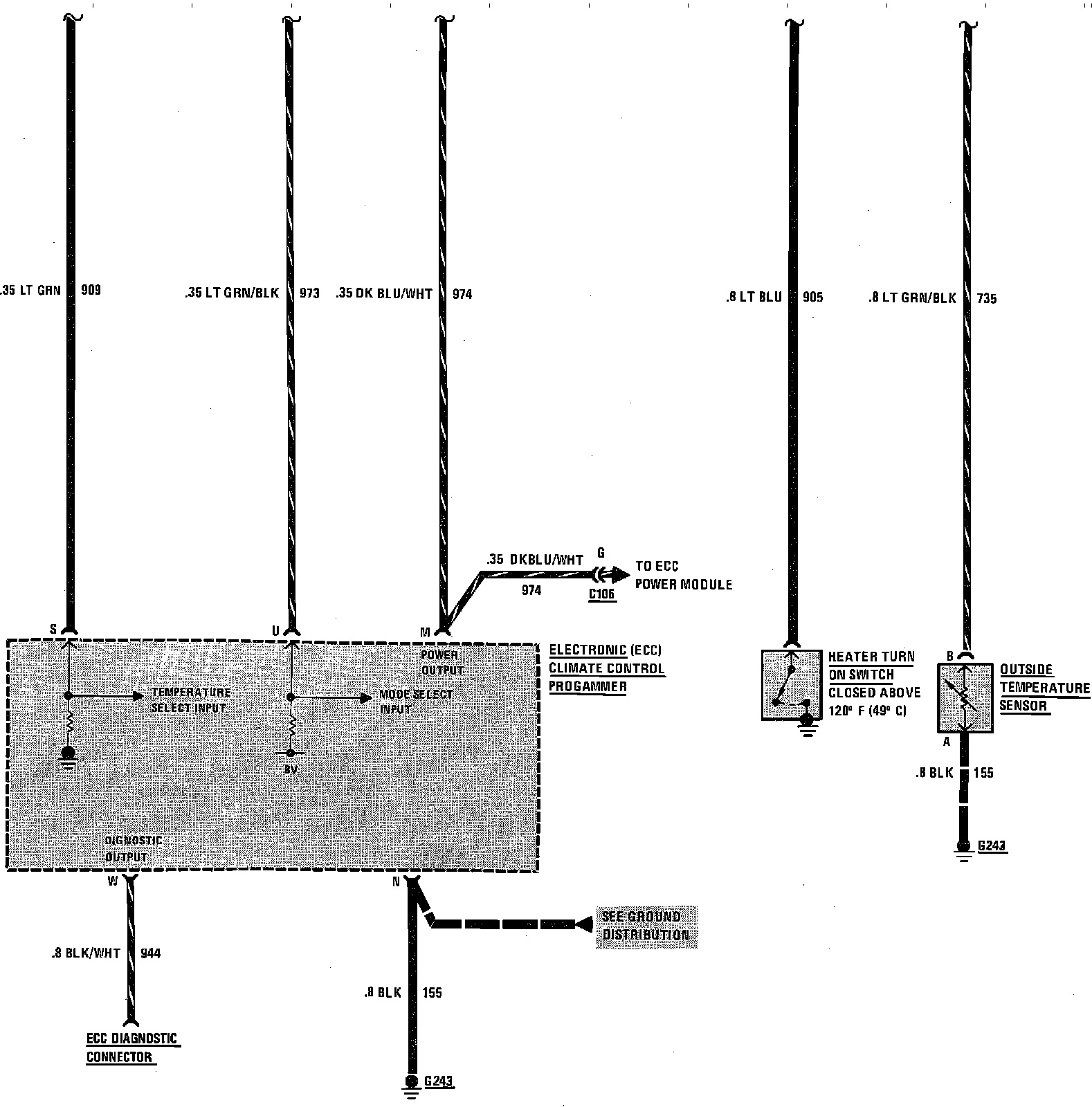

A/C System Wiring Circuit (Temp. Control Circuits) Part 1 of 2:

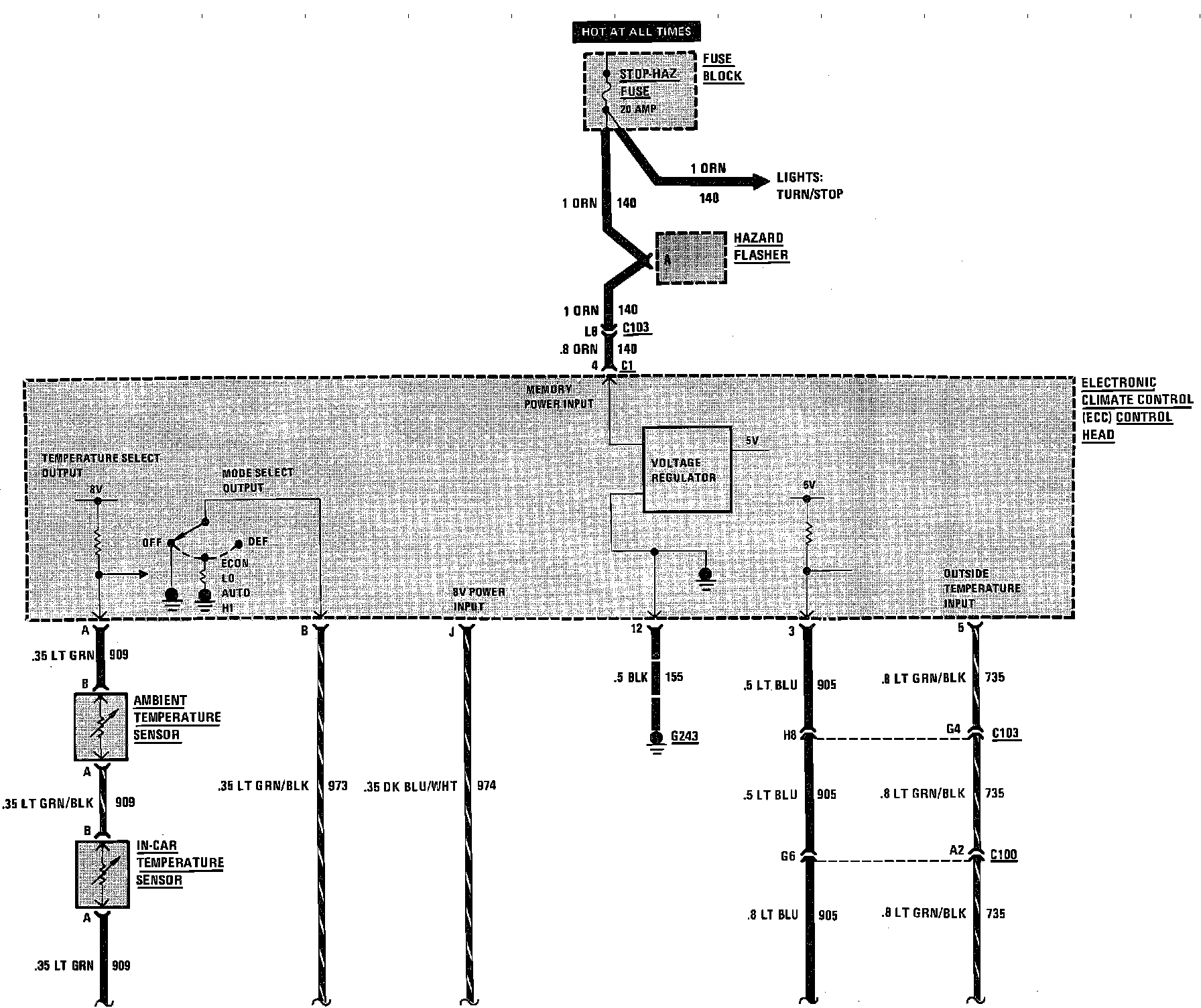

A/C System Wiring Circuit (Temp. Control Circuits) Part 2 of 2:
