Cadillac
>>
1988
>>
Cimarron V6-173 2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
Wiper and Washer Systems

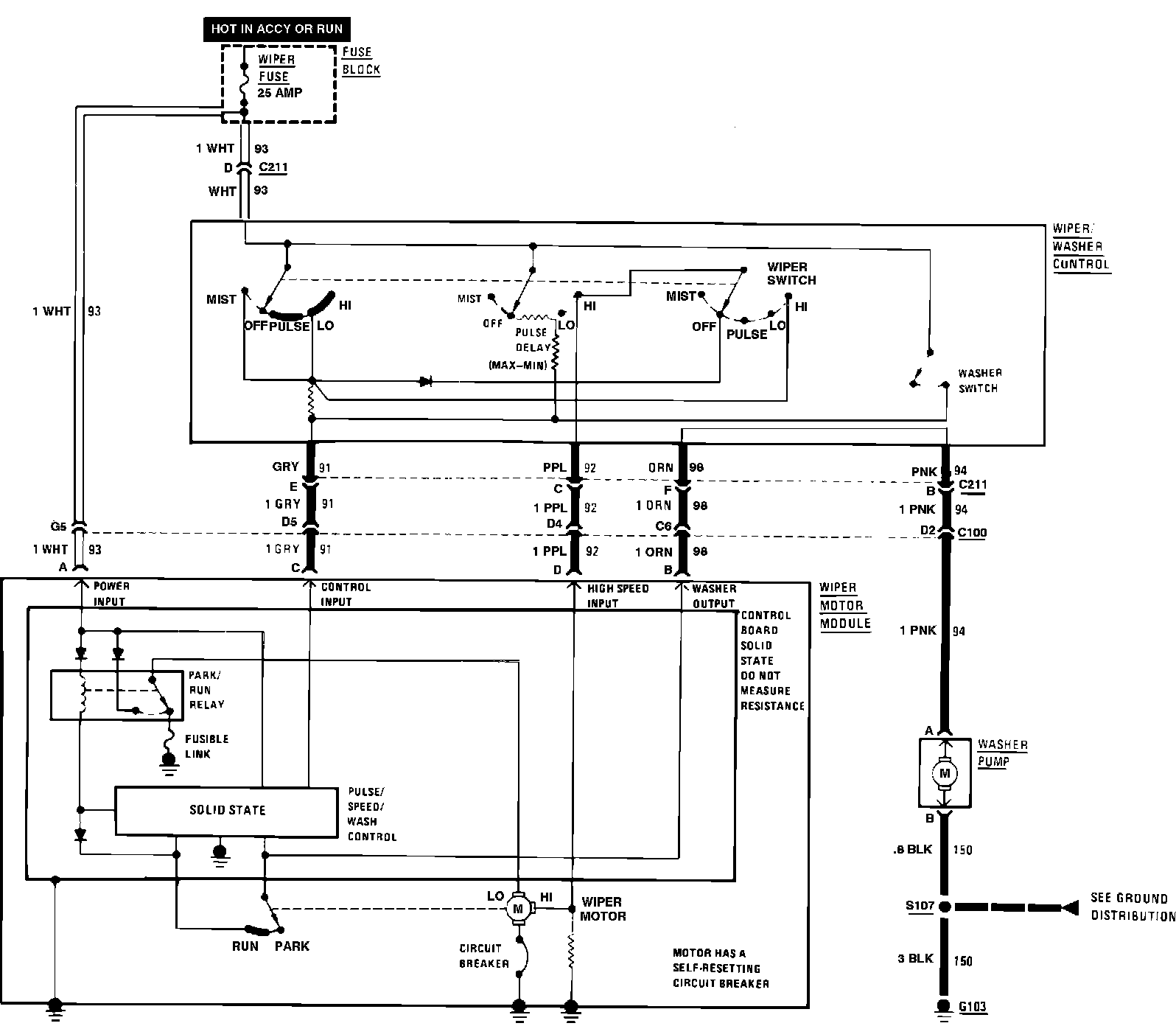

Windshield Wiper/Washer Wiring Circuit (W/Interval Wiper):
