Home
>>
Cadillac
>>
1988
>>
Cimarron V6-173 2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
S/LP
S/LP

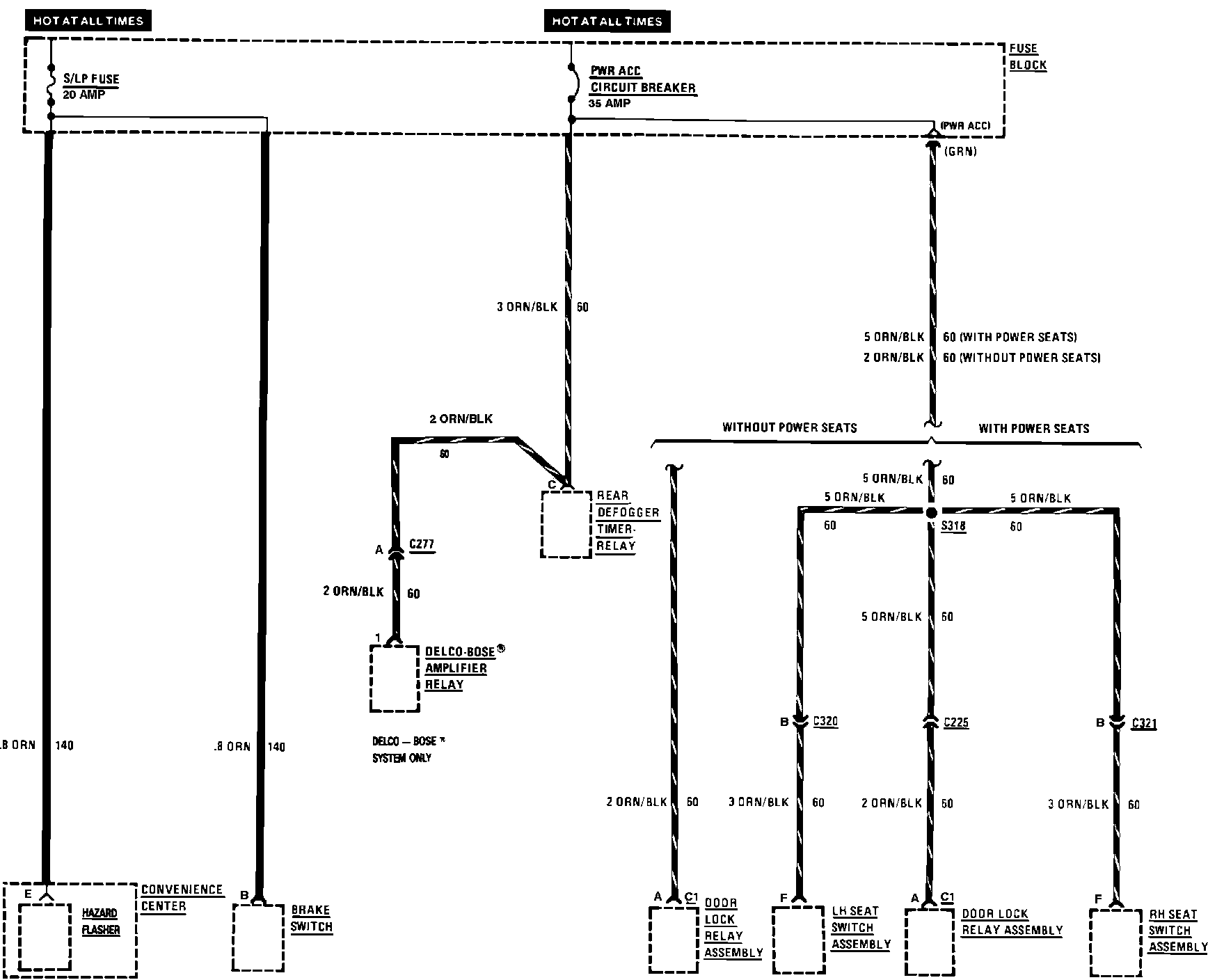

Power Accessory Circuit Breaker & S/LP Fuse:
