Home >> Cadillac >> 1988 >> Cimarron V6-173 2.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Heater A/C

Heater A/C

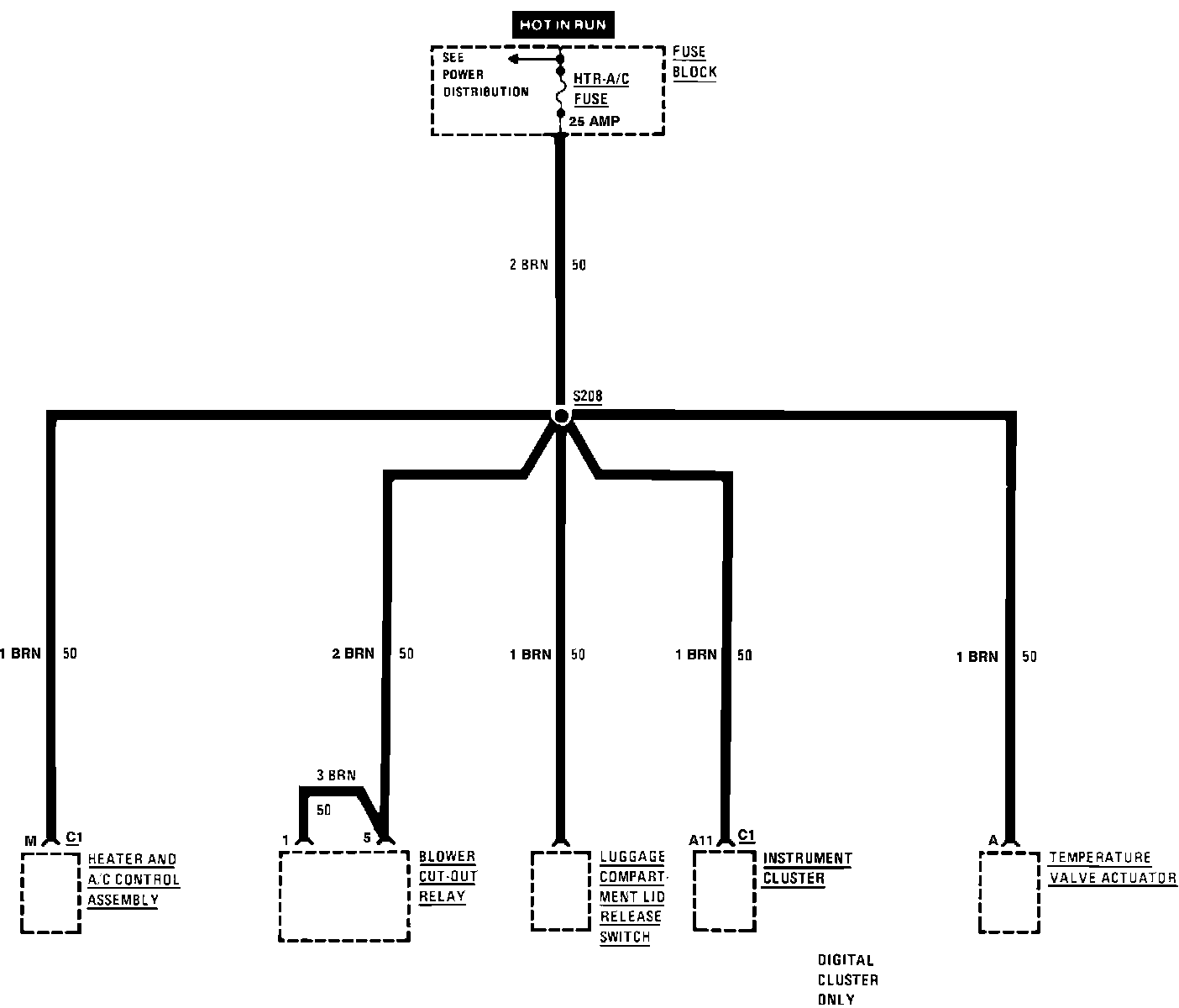

Heater A/C Fuse:
