Cadillac
>>
1988
>>
Cimarron V6-173 2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
With Delco Bose System
With Delco Bose System

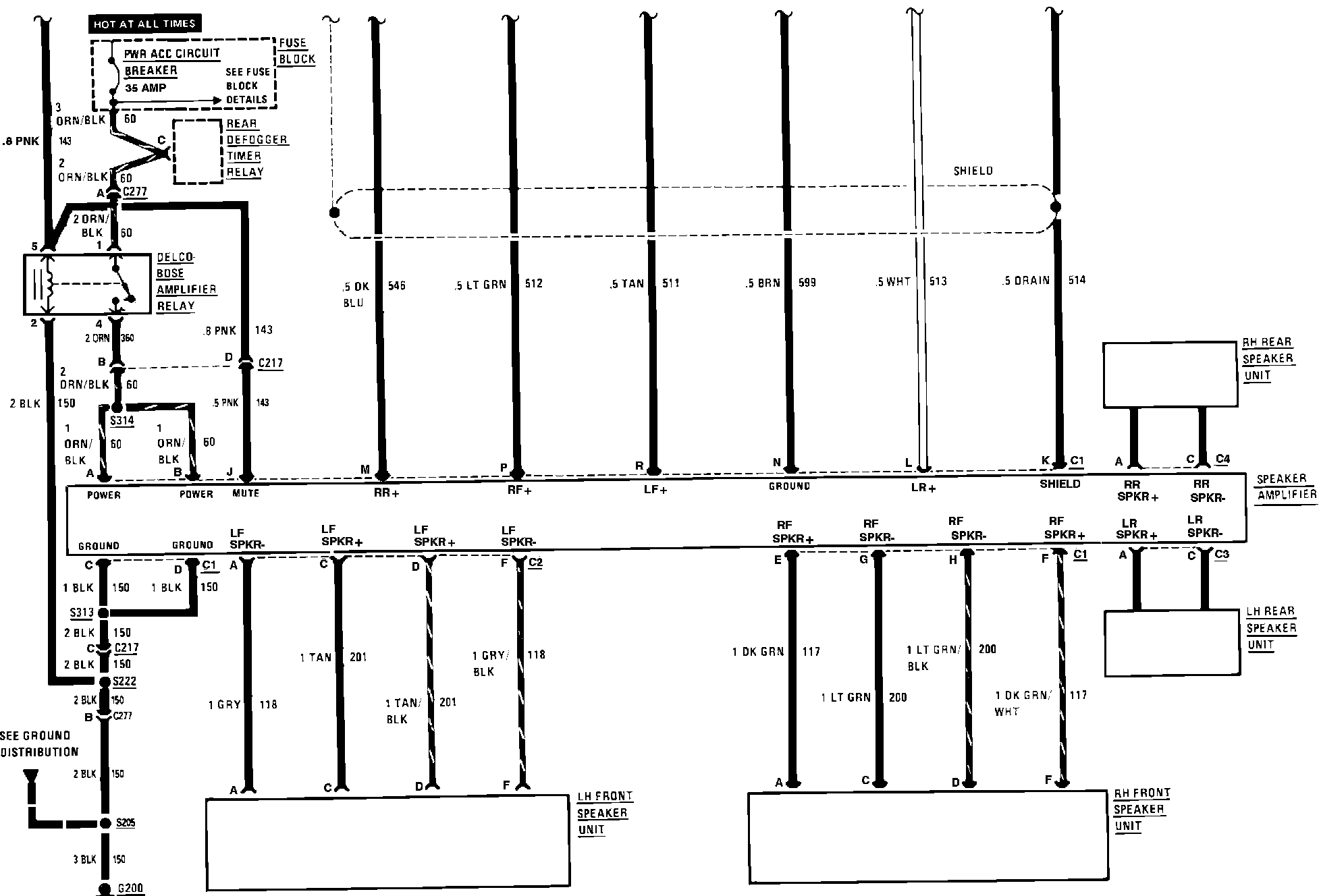

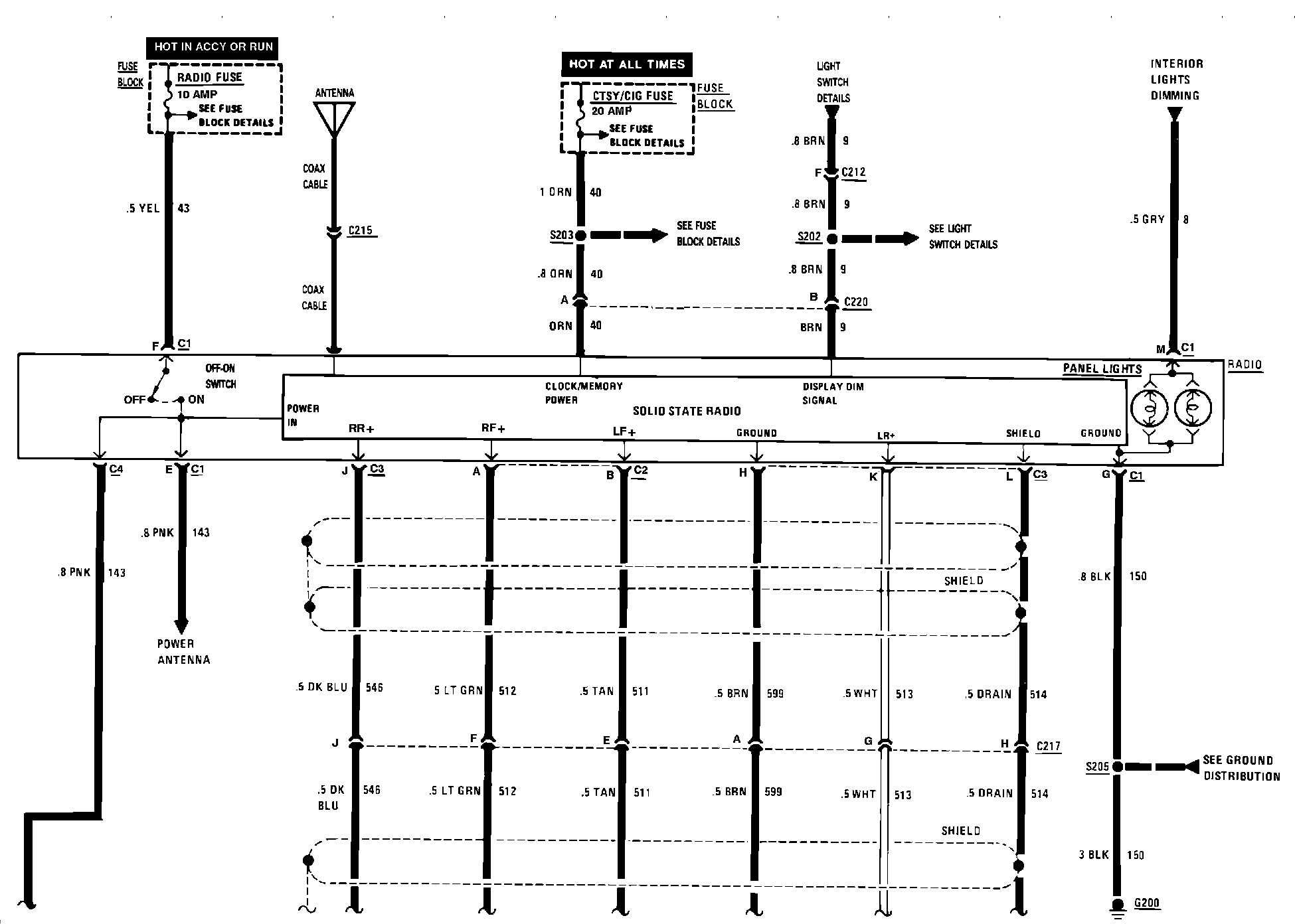

Radio Wiring Circuit (W/Delco Bose Music System):
Radio Wiring Circuit (W/Delco Bose Music System):
