Cadillac
>>
1988
>>
Cimarron V6-173 2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
Less Delco-Bose System
Less Delco-Bose System

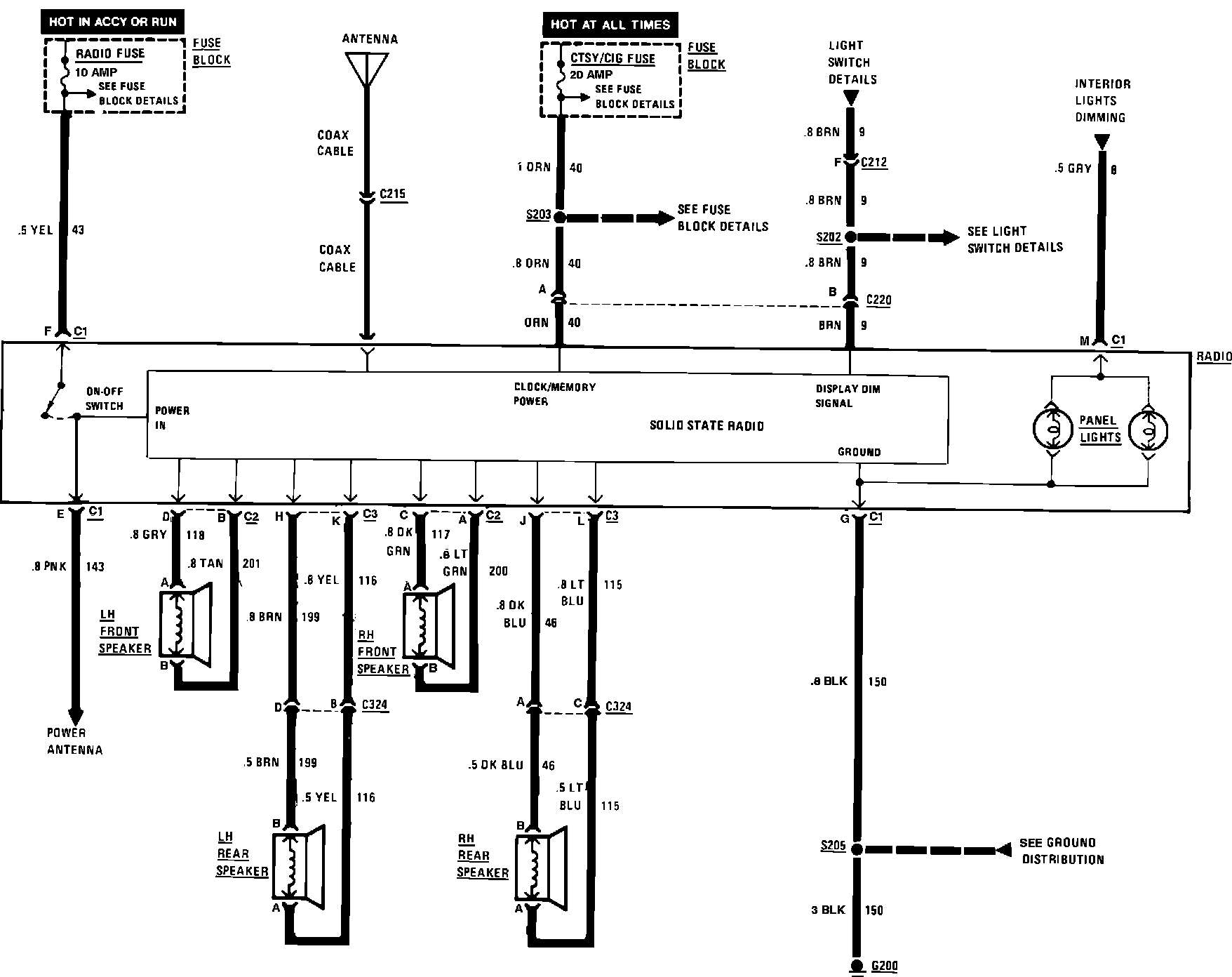

Radio Wiring Circuit (Less Bose Music System):
