Cadillac
>>
1988
>>
Cimarron V6-173 2.8L
>>
Repair and Diagnosis
>>
Cruise Control
>>
Diagrams
>>
Electrical Diagrams
>>
Part 2 of 2
>>
Exc. Digital Cluster
Exc. Digital Cluster

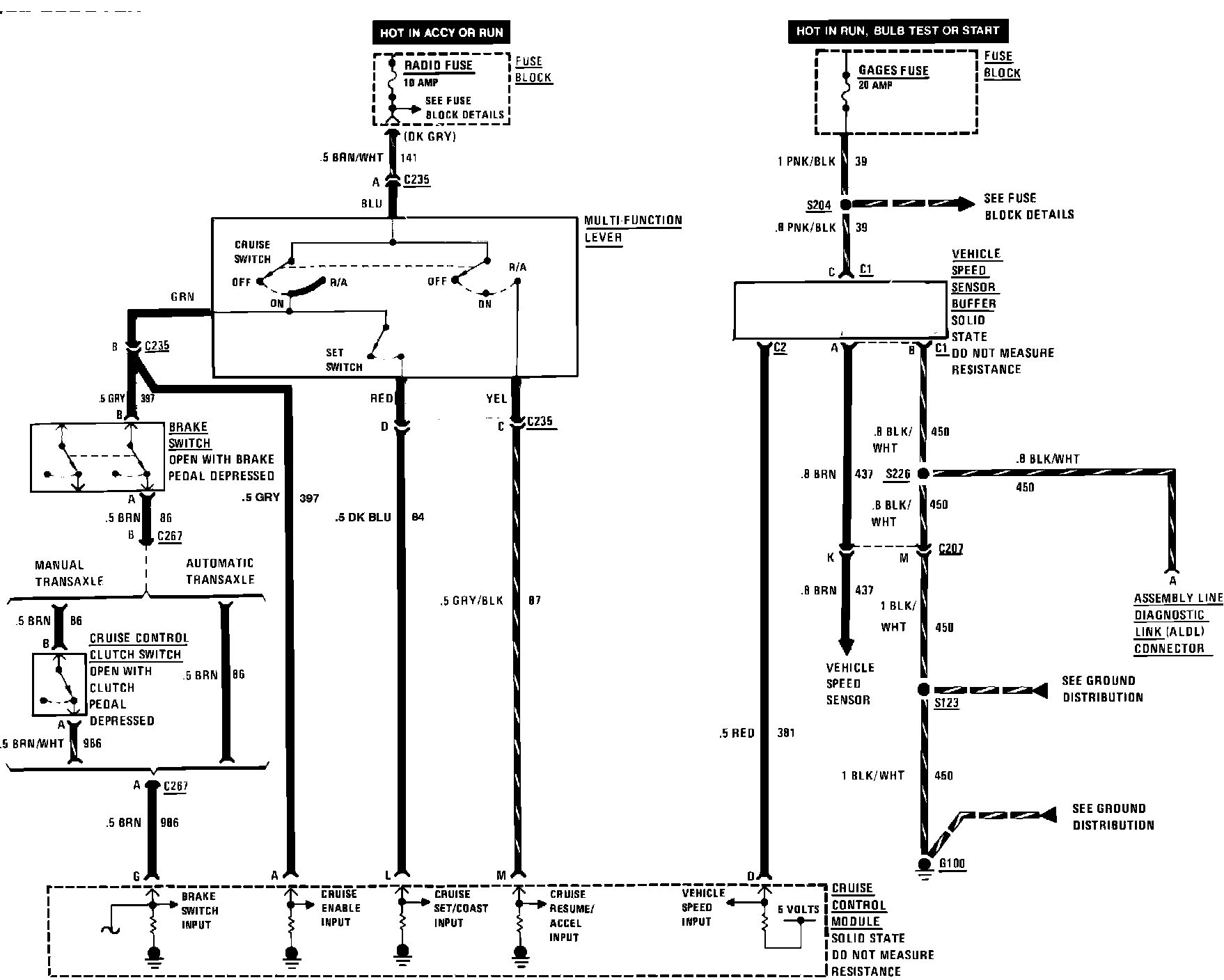

Cruise Control Wiring Circuit - Less Digital Cluster:
