Home
>>
Cadillac
>>
1988
>>
Allante V8-252 4.1L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

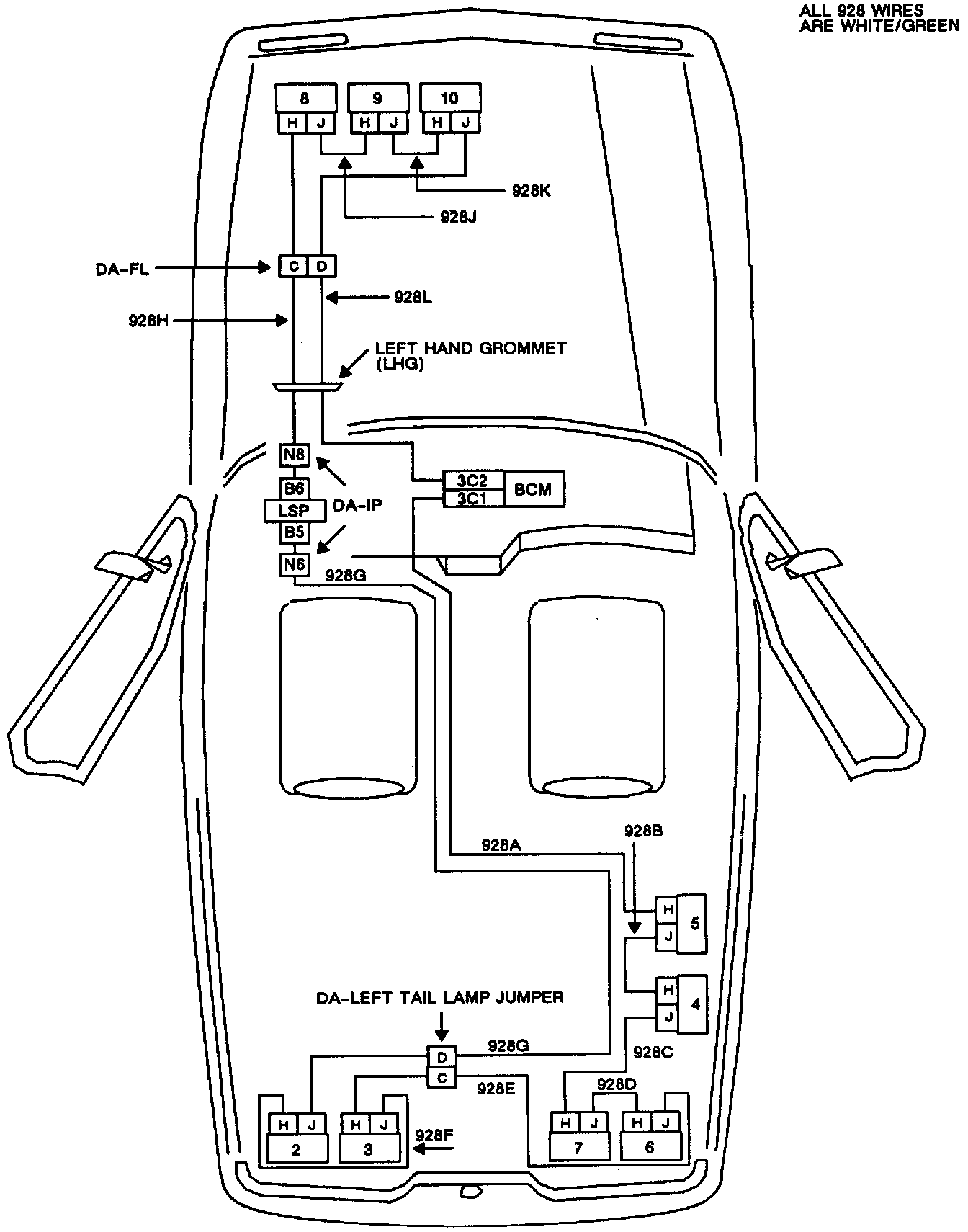

Data Line Detail - Circuit 928:
